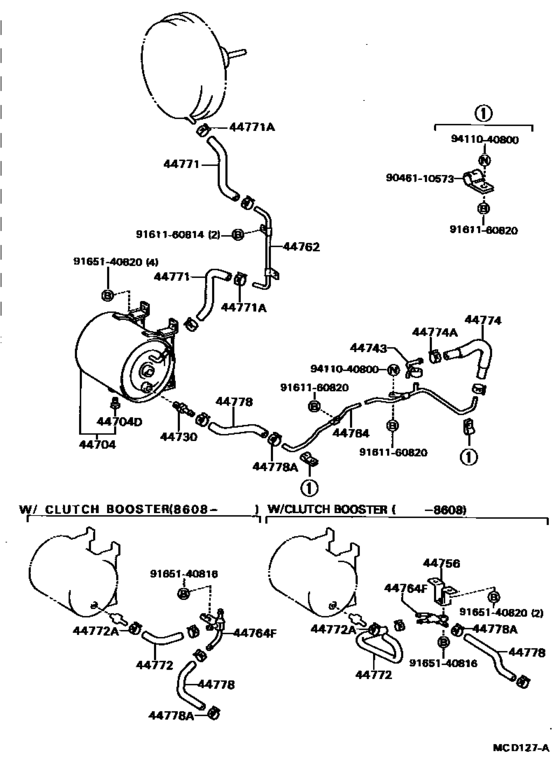

Brake Booster & Vacuum Tube ([01.1986 - 08.1988] (8601-8808)) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44704
|
44704
44704-36190 Reservoir Sub-Assy, Vacuum[01.1986 - 01.1993] BU60 |
44704-36190 |
US $131.04 |
||
|
44704
|
44704
44704-36191 Reservoir Sub-Assy, Vacuum[01.1993 - 05.1995] BU60 |
44704-36191 |
US $131.04 |
||
|
44704D
|
44704D
90345-51006 Plug, W/head Taper Screw, No.2[01.1986 - 05.1995] BU60 |
90345-51006 |
from US $0.79 |
||
|
44730
|
44730
44730-60040 Booster Kit, Brake[01.1986 - 05.1995] BU60 |
44730-60040 |
US $77.93 |
||
|
44743
|
44743
90405-09084 Union(For Vacuum Pump)[05.1988 - 08.1988] BU60 |
90405-09084 |
US $8.30 |
||
|
44743
|
44743
90405-09111 Union(For Vacuum Pump)[01.1986 - 05.1988] BU60 W/CLUTCH BOOSTER |
90405-09111 |
US $8.30 |
||
|
44743
|
44743
90405-09129 Union(For Vacuum Pump)[08.1988 - 05.1995] BU60 ｱﾘ(ｴｱｺﾝ=M0P) OR ｱﾘ(ｴｱｺﾝ=D0P) |
90405-09129 |
US $6.99 |
||
|
44743
|
44743
90405-09130 Union(For Vacuum Pump)[08.1988 - 05.1995] BU60 |
90405-09130 |
US $6.99 |
||
|
44756
|
44756
44757-36050 Bracket, Vacuum Reservoir[01.1986 - 08.1986] BU60 |
44757-36050 |
US $3.49 |
||
|
44762
|
44762
44762-36090 Tube, Booster Vacuum[01.1986 - 05.1995] BU60 |
44762-36090 |
US $24.17 |
||
|
44764
|
44764
44764-36440 Tube, Booster Vacuum[01.1986 - 08.1988] BU60 |
44764-36440 |
US $57.51 |
||
|
44764
|
44764
44764-36441 Tube, Booster Vacuum[08.1988 - 05.1995] BU60 |
44764-36441 |
US $56.93 |
||
|
44764
|
44764
44912-36150 Tube, Booster Vacuum[01.1986 - 05.1988] BU60 W/EXHAUST BRAKE |
44912-36150 |
US $91.73 |
||
|
44764
|
44764
44912-36151 Tube, Booster Vacuum[08.1988 - 05.1995] BU60 ｱﾘ(*EB) |
44912-36151 |
US $90.27 |
||
|
44764F
|
44764F
90413-09028 Way(For Booster Vacuum Tube)[01.1986 - 08.1986] BU60 |
90413-09028 |
US $13.40 |
||
|
44764F
|
44764F
90413-09034 Way(For Booster Vacuum Tube)[08.1986 - 05.1995] BU60 |
90413-09034 |
US $13.25 |
||
|
44771
|
44771
44771-36110 Hose, Vacuum Tube Connector[01.1986 - 05.1995] BU60 |
44771-36110 |
US $13.25 |
||
|
44771A
|
44771A
90467-16002
Clip(Vaccum Transmitting Hose No.1)
[01.1986 - 05.1995] BU60 |
90467-16002 |
— | ||
| replacement | |||||
|
44771A
|
44771A
96133-41500 Clamp Or Clip(For Air Hose, No.5)[01.1986 - 05.1995] BU60 |
96133-41500 |
from US $2.26 |
||
|
44772
|
44772
44772-36050
Hose, Check Valve To Connector Tube
[01.1986 - 08.1986] BU60 |
44772-36050 |
— | ||
|
44772
|
44772
44772-36060 Hose, Check Valve To Connector Tube[08.1986 - 05.1995] BU60 |
44772-36060 |
US $11.07 |
||
|
44772A
|
44772A
90467-16002
Clip(Vaccum Transmitting Hose No.1)
[01.1986 - 05.1995] BU60 |
90467-16002 |
— | ||
| replacement | |||||
|
44772A
|
44772A
96133-41500 Clamp Or Clip(For Air Hose, No.5)[01.1986 - 05.1995] BU60 |
96133-41500 |
from US $2.26 |
||
|
44774
|
44774
44771-36170 Hose, Union To Connector Tube[08.1988 - 05.1995] BU60 NO.1 |
44771-36170 |
US $19.66 |
||
|
44774
|
44774
44774-36090 Hose, Union To Connector Tube[01.1986 - 08.1988] BU60 |
44774-36090 |
US $17.76 |
||
|
44774
|
44774
44774-36190 Hose, Union To Connector Tube[08.1988 - 05.1995] BU60 NO.2 |
44774-36190 |
US $12.81 |
||
|
44774A
|
44774A
90467-16002
Clip(Vaccum Transmitting Hose No.1)
[01.1986 - 05.1995] BU60 |
90467-16002 |
— | ||
| replacement | |||||
|
44774A
|
44774A
96133-41500 Clamp Or Clip(For Air Hose, No.5)[01.1986 - 05.1995] BU60 |
96133-41500 |
from US $2.26 |
||
|
44778
|
44778
44778-36070
Hose, Connector To Check Valve
[01.1986 - 08.1986] BU60 W/CLUTCH BOOSTER |
44778-36070 |
— | ||
|
44778
|
44778
44778-36080 Hose, Connector To Check Valve[08.1986 - 05.1988] BU60 W/CLUTCH BOOSTER |
44778-36080 |
US $15.29 |
||
|
44778A
|
44778A
90467-16002
Clip(Vaccum Transmitting Hose No.1)
[01.1986 - 05.1995] BU60 |
90467-16002 |
— | ||
| replacement | |||||
|
44778A
|
44778A
96133-41500 Clamp Or Clip(For Air Hose, No.5)[01.1986 - 05.1995] BU60 |
96133-41500 |
from US $2.26 |
||
|
9046110573
|
9046110573
90461-10573 New Genuine Part |
90461-10573 |
US $4.37 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.74 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.16 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.95 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $0.96 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.82 |
||
