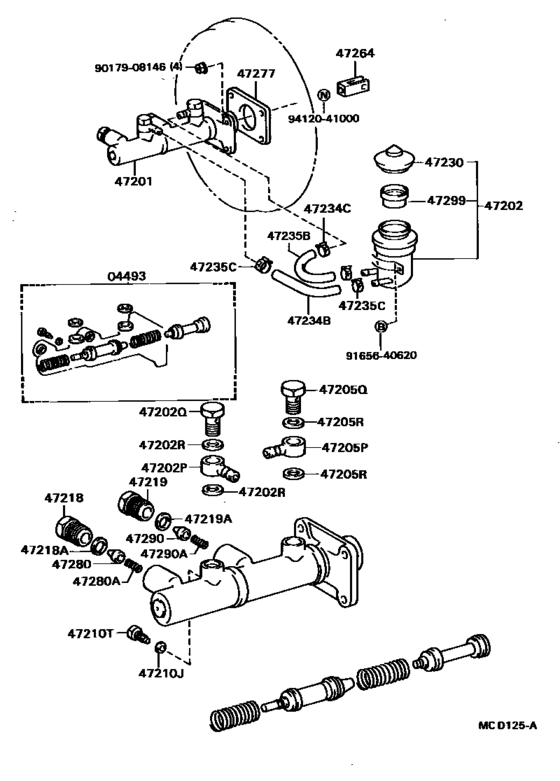

Brake Master Cylinder ([01.1986 - 08.1987] (8601-8708)) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04493
|
04493
04493-25050 Cylinder Kit, Brake Master[01.1986 - 05.1995] BU60 |
04493-25050 |
US $115.02 |
||
|
47201
|
47201
47201-36240 Cylinder Sub-Assy, Brake Master[01.1986 - 08.1987] BU60 |
47201-36240 |
US $465.92 |
||
| replacement | |||||
|
47201
|
47201
47201-36241 Cylinder Sub-Assy, Brake Master[01.1986 - 08.1987] BU60 |
47201-36241 |
US $464.46 |
||
|
47201
|
47201
47201-36241 Cylinder Sub-Assy, Brake Master[08.1987 - 02.1992] BU60 |
47201-36241 |
US $464.46 |
||
|
47201
|
47201
47201-36370 Cylinder Sub-Assy, Brake Master[08.1990 - 02.1992] BU60 ｱﾘ(FR ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
47201-36370 |
US $464.46 |
||
|
47202
|
47202
47220-26160 Reservoir Sub-Assy, Brake Master Cylinder[01.1986 - 05.1995] BU60 |
47220-26160 |
US $88.82 |
||
|
47202P
|
47202P
90405-13004 Union, Reservoir(For Brake Master Cylinder Side)[01.1986 - 08.1987] BU60 |
90405-13004 |
US $6.84 |
||
|
47202Q
|
47202Q
90401-16078
Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
[01.1986 - 08.1987] BU60 |
90401-16078 |
— | ||
|
47202R
|
47202R
90430-16242 Gasket, W/head Straight Screw Plug[01.1986 - 08.1987] BU60 |
90430-16242 |
from US $0.80 |
||
|
47205P
|
47205P
90405-13004 Union, Reservoir(For Brake Master Cylinder Side)[01.1986 - 08.1987] BU60 |
90405-13004 |
US $6.84 |
||
|
47205Q
|
47205Q
90401-16078
Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
[01.1986 - 08.1987] BU60 |
90401-16078 |
— | ||
|
47205R
|
47205R
90430-16242 Gasket, W/head Straight Screw Plug[01.1986 - 08.1987] BU60 |
90430-16242 |
from US $0.80 |
||
|
47210J
|
47210J
90430-06104 Gasket(For Brake Actuator)[01.1986 - 05.1995] BU60 |
90430-06104 |
from US $1.79 |
||
|
47210T
|
47210T
90109-06008 Bolt(For Brake Master Cylinder)[01.1986 - 05.1995] BU60 |
90109-06008 |
US $0.44 |
||
|
47218
|
47218
47218-25020 Plug, Master Cylinder Fluid Outlet[08.1990 - 02.1992] BU60 ｱﾘ(FR ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
47218-25020 |
US $6.12 |
||
|
47218
|
47218
47218-30030 Plug, Master Cylinder Fluid Outlet[01.1986 - 02.1992] BU60 |
47218-30030 |
US $10.05 |
||
|
47218A
|
47218A
90430-11001 Gasket(For Fluid Outlet Plug)[01.1986 - 05.1995] BU60 |
90430-11001 |
US $1.97 |
||
|
47219
|
47219
47218-30030 Plug, Master Cylinder Fluid Outlet[01.1986 - 05.1995] BU60 |
47218-30030 |
US $10.05 |
||
|
47219A
|
47219A
90430-11001 Gasket(For Fluid Outlet Plug)[01.1986 - 05.1995] BU60 |
90430-11001 |
US $1.97 |
||
|
47230
|
47230
47230-12040 Cap Assy, Brake Master Cylinder Reservoir Filler[01.1986 - 05.1995] BU60 |
47230-12040 |
from US $9.32 |
||
|
47234B
|
47234B
47234-36140 Tube, Reservoir, No.1[01.1986 - 05.1995] BU60 |
47234-36140 |
US $5.39 |
||
|
47234C
|
47234C
90467-16141
Clip(For Clutch Reservoir Tube)
[01.1986 - 05.1995] BU60 |
90467-16141 |
— | ||
|
47235B
|
47235B
47235-36140 Tube, Brake Master Cyrinder Reservoir, No.2[01.1986 - 05.1995] BU60 |
47235-36140 |
US $6.26 |
||
|
47235C
|
47235C
90467-16141
Clip(For Clutch Reservoir Tube)
[01.1986 - 05.1995] BU60 |
90467-16141 |
— | ||
|
47264
|
47264
47264-26020 Clevis, Master Cylinder Push Rod[01.1986 - 05.1995] BU60 |
47264-26020 |
US $8.30 |
||
|
47277
|
47277
47277-36010 Spacer, Master Cylinder[01.1986 - 05.1995] BU60 |
47277-36010 |
US $19.80 |
||
|
47280
|
47280
47281-30020 Valve Assy, Brake Master Cylinder Outlet Check[01.1986 - 02.1992] BU60 |
47281-30020 |
US $3.23 |
||
|
47280A
|
47280A
90504-05003 Spring, Compression[01.1986 - 02.1992] BU60 |
90504-05003 |
US $2.77 |
||
|
47290
|
47290
47281-30020 Valve Assy, Brake Master Cylinder Outlet Check[01.1986 - 05.1995] BU60 |
47281-30020 |
US $3.23 |
||
|
47290A
|
47290A
90504-05003 Spring, Compression[01.1986 - 05.1995] BU60 |
90504-05003 |
US $2.77 |
||
|
47299
|
47299
47299-25010 Strainer, Master Cylinder Reservoir[01.1986 - 05.1995] BU60 |
47299-25010 |
US $5.42 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9165640620
|
9165640620
91656-40620
Bolt(For Oil Receiver Pipe)
|
91656-40620 |
— | ||
| replacement | |||||
|
9165640620
|
9165640620
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
from US $1.16 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.74 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
