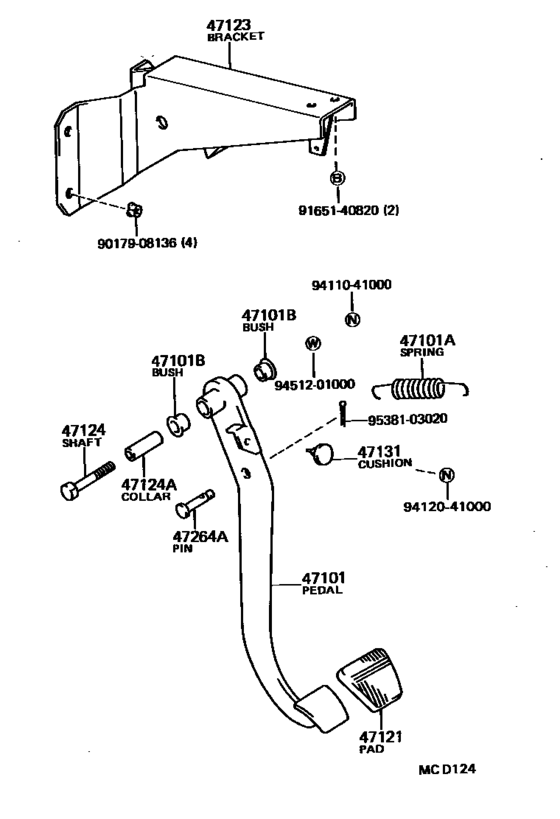

Brake Pedal & Bracket ([01.1986 - ] (8601- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47101
|
47101
47101-35150 Pedal Sub-Assy, Brake[01.1986 - 05.1995] BU60 |
47101-35150 |
US $28.10 |
||
|
47101A
|
47101A
90506-16021
Spring(For Clutch Pedal)
[01.1986 - 05.1995] BU60 |
90506-16021 |
— | ||
|
47101B
|
47101B
90386-13007 Bush(For Clutch Pedal)[01.1986 - 05.1995] BU60 |
90386-13007 |
from US $2.45 |
||
|
47121
|
47121
31321-14020 Pad, Clutch Pedal[01.1986 - 05.1995] BU60 |
31321-14020 |
from US $3.29 |
||
| replacement | |||||
|
47121
|
47121
31321YE010
PAD PEDAL
[01.1986 - 05.1995] BU60 |
31321YE010 |
— | ||
|
47123
|
47123
55155-90F00 Bracket, Brake Pedal[01.1986 - 05.1995] BU60 |
55155-90F00 |
US $99.01 |
||
|
47124
|
47124
91121-51065 Shaft, Brake Pedal[01.1986 - 05.1995] BU60 |
91121-51065 |
US $3.06 |
||
|
47124A
|
47124A
90387-10003 Collar, Clutch Pedal Shaft[01.1986 - 05.1995] BU60 |
90387-10003 |
from US $3.84 |
||
|
47131
|
47131
90541-06008 Cushion, No.1(For Clutch Pedal)[01.1986 - 05.1995] BU60 |
90541-06008 |
from US $1.50 |
||
|
47264A
|
47264A
90249-10048
Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)
[01.1986 - 05.1995] BU60 |
90249-10048 |
— | ||
|
9017908136
|
9017908136
90179-08136
Nut(For Front Suspension Support)
|
90179-08136 |
— | ||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $0.96 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.74 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.78 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $0.76 |
||
