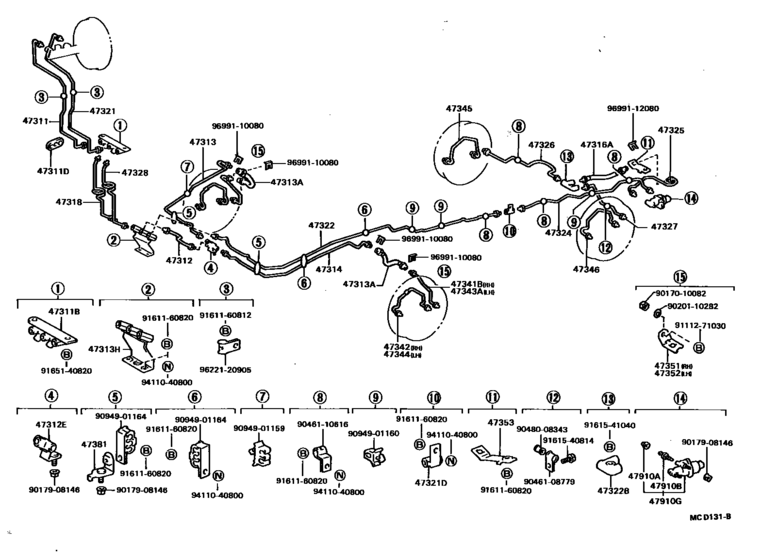

Brake Tube & Clamp ([01.1986 - 08.1987] (8601-8708)) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47311
|
47311
47311-36370 Tube, Front Brake, No.1[01.1986 - 05.1995] BU60 |
47311-36370 |
US $14.71 |
||
|
47311B
|
47311B
90412-12020 Way, No.1(For Front Brake Tube)[01.1986 - 05.1995] BU60 |
90412-12020 |
US $26.06 |
||
|
47311D
|
47311D
90480-01030 Grommet(For Front Brake Tube)[01.1986 - 05.1995] BU60 |
90480-01030 |
US $7.28 |
||
|
47312
|
47312
47312-36250 Tube, Front Brake, No.2[01.1986 - 05.1995] BU60 |
47312-36250 |
US $9.17 |
||
|
47312E
|
47312E
90413-12005 Way, No.1(For Front Brake Tube)[01.1986 - 05.1995] BU60 |
90413-12005 |
US $13.25 |
||
|
47313
|
47313
47313-36160 Tube, Front Brake, No.3[01.1986 - 05.1995] BU60 |
47313-36160 |
US $13.69 |
||
|
47313A
|
47313A
90947-02468
Hose, Flexible, No.1(For Front)
[01.1986 - 02.1991] BU60 |
90947-02468 |
— | ||
| replacement | |||||
|
47313A
|
47313A
90947-02754
Tube, Wheel Cylinder, Front Rh No.1
[01.1986 - 02.1991] BU60 |
90947-02754 |
— | ||
|
47313A
|
47313A
90947-02513 Hose, Flexible, No.1(For Front)[08.1990 - 10.1992] BU60..N ｱﾘ(FR ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
90947-02513 |
US $27.23 |
||
| replacement | |||||
|
47313A
|
47313A
90947-02749 Hose, Flexible, No.1(For Front)[08.1990 - 10.1992] BU60..N ｱﾘ(FR ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
90947-02749 |
US $27.23 |
||
|
47313A
|
47313A
90947-02666 Hose, Flexible, No.1(For Front)[02.1991 - 02.1992] BU60 右側 |
90947-02666 |
US $38.58 |
||
| replacement | |||||
|
47313A
|
47313A
90947-02747 Hose, Flexible, No.1(For Front)[02.1991 - 02.1992] BU60 右側 |
90947-02747 |
US $44.52 |
||
|
47313A
|
47313A
90947-02667 Hose, Flexible, No.1(For Front)[02.1991 - 02.1992] BU60 左側 |
90947-02667 |
US $38.58 |
||
| replacement | |||||
|
47313A
|
47313A
90947-02748 Hose, Flexible, No.1(For Front)[02.1991 - 02.1992] BU60 左側 |
90947-02748 |
US $44.52 |
||
|
47313A
|
47313A
90947-02749 Hose, Flexible, No.1(For Front)[10.1992 - 05.1995] BU60 ｱﾘ(FR ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
90947-02749 |
US $27.23 |
||
|
47313H
|
47313H
90412-12021 Way, No.3(For Front Brake Tube)[01.1986 - 05.1995] BU60 |
90412-12021 |
US $25.77 |
||
|
47314
|
47314
47314-36230 Tube, Front Brake, No.4[01.1986 - 05.1995] BU60 |
47314-36230 |
US $14.71 |
||
|
47316A
|
47316A
90947-02520 Hose, Flexible(For Rear Brake Tube)[08.1990 - 10.1992] BU60 ｱﾘ(FR ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ) |
90947-02520 |
US $29.99 |
||
|
47316A
|
47316A
96912-34005 Hose, Clutch, No.1[01.1986 - 05.1995] BU60 |
96912-34005 |
US $23.35 |
||
|
47318
|
47318
47318-36171 Tube, Front Brake, No.8[01.1986 - 04.1986] BU60 |
47318-36171 |
US $10.63 |
||
| replacement | |||||
|
47318
|
47318
47318-36172 Tube, Front Brake, No.8[01.1986 - 04.1986] BU60 |
47318-36172 |
US $10.63 |
||
|
47318
|
47318
47318-36172 Tube, Front Brake, No.8[04.1986 - 05.1995] BU60 |
47318-36172 |
US $10.63 |
||
|
47321
|
47321
47321-36270 Tube, Rear Brake, No.1[01.1986 - 05.1995] BU60 |
47321-36270 |
US $14.71 |
||
|
47321D
|
47321D
90412-12014 Way, No.1(For Rear Brake Tube)[01.1986 - 05.1995] BU60 |
90412-12014 |
US $10.63 |
||
|
47322
|
47322
47322-36240 Tube, Rear Brake, No.2[01.1986 - 05.1987] BU60 |
47322-36240 |
US $41.64 |
||
| replacement | |||||
|
47322
|
47322
47322-36241 Tube, Rear Brake, No.2[01.1986 - 05.1987] BU60 |
47322-36241 |
US $43.68 |
||
|
47322
|
47322
47322-36241 Tube, Rear Brake, No.2[05.1987 - 05.1995] BU60 |
47322-36241 |
US $43.68 |
||
|
47322B
|
47322B
90413-10125 Way, No.2(For Rear Brake Tube)[01.1986 - 05.1995] BU60 |
90413-10125 |
US $16.59 |
||
|
47324
|
47324
47324-36110 Tube, Rear Brake, No.4[08.1987 - 05.1995] BU60 |
47324-36110 |
US $13.54 |
||
|
47324
|
47324
47324-36190 Tube, Rear Brake, No.4[01.1986 - 08.1987] BU60 |
47324-36190 |
US $29.27 |
||
|
47325
|
47325
47325-36171 Tube, Rear Brake, No.1[08.1987 - 05.1995] BU60 |
47325-36171 |
US $21.49 |
||
|
47325
|
47325
47325-36260 Tube, Rear Brake, No.5[01.1986 - 08.1987] BU60 |
47325-36260 |
US $13.25 |
||
|
47326
|
47326
47326-36160 Tube, Rear Brake, No.6[01.1986 - 05.1995] BU60 |
47326-36160 |
US $13.10 |
||
|
47327
|
47327
47327-36190 Tube, Rear Brake, No.7[01.1986 - 05.1995] BU60 |
47327-36190 |
US $10.63 |
||
|
47328
|
47328
47328-36241 Tube, Rear Brake, No.8[01.1986 - 04.1986] BU60 |
47328-36241 |
US $10.63 |
||
| replacement | |||||
|
47328
|
47328
47328-36242 Tube, Rear Brake, No.8[01.1986 - 04.1986] BU60 |
47328-36242 |
US $10.63 |
||
|
47328
|
47328
47328-36242 Tube, Rear Brake, No.8[04.1986 - 05.1995] BU60 |
47328-36242 |
US $10.63 |
||
|
47341B
|
47341B
47341-36080
Tube, Wheel Cylinder, Front Rh No.1
[01.1986 - 09.1989] BU60 |
47341-36080 |
— | ||
| replacement | |||||
|
47341B
|
47341B
90947-02754
Tube, Wheel Cylinder, Front Rh No.1
[01.1986 - 09.1989] BU60 |
90947-02754 |
— | ||
|
47341B
|
47341B
47341-36081
Tube, Wheel Cylinder, Front Rh No.1
[09.1989 - 04.1990] BU60 |
47341-36081 |
— | ||
| replacement | |||||
|
47341B
|
47341B
90947-02754
Tube, Wheel Cylinder, Front Rh No.1
[09.1989 - 04.1990] BU60 |
90947-02754 |
— | ||
|
47341B
|
47341B
47341-36082
Tube, Wheel Cylinder, Front Rh No.1
[04.1990 - 02.1991] BU60 |
47341-36082 |
— | ||
| replacement | |||||
|
47341B
|
47341B
90947-02754
Tube, Wheel Cylinder, Front Rh No.1
[04.1990 - 02.1991] BU60 |
90947-02754 |
— | ||
|
47342
|
47342
47342-36060 Tube, Wheel Cylinder, Front Rh No.2[01.1986 - 02.1992] BU60 |
47342-36060 |
US $6.26 |
||
|
47343A
|
47343A
47343-36080
Tube, Wheel Cylinder, Front Lh No.1
[01.1986 - 09.1989] BU60 |
47343-36080 |
— | ||
| replacement | |||||
|
47343A
|
47343A
90947-02754
Tube, Wheel Cylinder, Front Rh No.1
[01.1986 - 09.1989] BU60 |
90947-02754 |
— | ||
|
47343A
|
47343A
47343-36081
Tube, Wheel Cylinder, Front Lh No.1
[09.1989 - 04.1990] BU60 |
47343-36081 |
— | ||
| replacement | |||||
|
47343A
|
47343A
90947-02754
Tube, Wheel Cylinder, Front Rh No.1
[09.1989 - 04.1990] BU60 |
90947-02754 |
— | ||
|
47343A
|
47343A
47343-36082
Tube, Wheel Cylinder, Front Lh No.1
[04.1990 - 02.1991] BU60 |
47343-36082 |
— | ||
| replacement | |||||
|
47343A
|
47343A
90947-02754
Tube, Wheel Cylinder, Front Rh No.1
[04.1990 - 02.1991] BU60 |
90947-02754 |
— | ||
|
47344
|
47344
47344-36060 Tube, Wheel Cylinder, Front Lh No.2[01.1986 - 02.1992] BU60 |
47344-36060 |
US $6.26 |
||
|
47345
|
47345
47342-36060 Tube, Wheel Cylinder, Front Rh No.2[01.1986 - 05.1995] BU60 |
47342-36060 |
US $6.26 |
||
|
47346
|
47346
47344-36060 Tube, Wheel Cylinder, Front Lh No.2[01.1986 - 05.1995] BU60 |
47344-36060 |
US $6.26 |
||
|
47351
|
47351
47351-36130 Bracket, Flexible Hose(For Front Rh)[01.1986 - 08.1988] BU60 |
47351-36130 |
US $7.86 |
||
|
47351
|
47351
47351-36131 Bracket, Flexible Hose(For Front Rh)[08.1988 - 05.1995] BU60 |
47351-36131 |
US $7.43 |
||
|
47352
|
47352
47351-36130 Bracket, Flexible Hose(For Front Rh)[01.1986 - 08.1988] BU60 |
47351-36130 |
US $7.86 |
||
|
47352
|
47352
47351-36131 Bracket, Flexible Hose(For Front Rh)[08.1988 - 05.1995] BU60 |
47351-36131 |
US $7.43 |
||
|
47353
|
47353
47353-36150 Bracket, Flexible Hose(For Rear)[01.1986 - 07.1987] BU60 |
47353-36150 |
US $21.84 |
||
| replacement | |||||
|
47353
|
47353
47353-36171 Bracket, Flexible Hose(For Rear)[01.1986 - 07.1987] BU60 |
47353-36171 |
US $21.69 |
||
|
47353
|
47353
47353-36171 Bracket, Flexible Hose(For Rear)[07.1987 - 05.1988] BU60 |
47353-36171 |
US $21.69 |
||
|
47381
|
47381
47381-36060 Bracket, Brake Tube Clamp No.1[01.1986 - 05.1988] BU60 |
47381-36060 |
US $12.23 |
||
|
47910A
|
47910A
31478-30010 Bleeder Plug Cap[01.1986 - 08.1987] BU60 |
31478-30010 |
from US $1.43 |
||
|
47910B
|
47910B
47547-26010 Plug, Bleeder (For Deceleration Sensing Proportionin)[01.1986 - 08.1987] BU60 |
47547-26010 |
US $6.63 |
||
|
47910G
|
47910G
47910-36090 Valve Assy, Deceleration Sensing Proportioning[01.1986 - 08.1987] BU60 |
47910-36090 |
US $238.78 |
||
|
9017010082
|
9017010082
90170-10082 Nut, Hexagon (For Control Rod Setting) |
90170-10082 |
from US $2.87 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9020110282
|
9020110282
90201-10282 Gasket(For Vacuum Pump Union) |
90201-10282 |
US $1.49 |
||
|
9046108779
|
9046108779
90461-08779 New Genuine Part |
90461-08779 |
US $3.94 |
||
|
9046110616
|
9046110616
90461-10616 New Genuine Part |
90461-10616 |
US $1.40 |
||
|
9048008343
|
9048008343
90480-08343 Grommet, No.2(For Front Brake Tube) |
90480-08343 |
US $2.34 |
||
|
9094901159
|
9094901159
90949-01159 New Genuine Part |
90949-01159 |
US $5.10 |
||
| replacement | |||||
|
9094901159
|
9094901159
90949-01602 New Genuine Part |
90949-01602 |
US $3.79 |
||
|
9094901160
|
9094901160
90949-01160 New Genuine Part |
90949-01160 |
US $4.66 |
||
| replacement | |||||
|
9094901160
|
9094901160
90949-01600 New Genuine Part |
90949-01600 |
US $1.89 |
||
|
9094901164
|
9094901164
90949-01164 New Genuine Part |
90949-01164 |
US $6.26 |
||
|
9111271030
|
9111271030
91112-71030
New Genuine Part
|
91112-71030 |
— | ||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.16 |
||
|
9161540814
|
9161540814
91615-40814 Bolt(For Oil Receiver Pipe) |
91615-40814 |
US $1.60 |
||
| replacement | |||||
|
9161540814
|
9161540814
91611-60814 Bolt |
91611-60814 |
from US $0.74 |
||
|
9161541040
|
9161541040
91615-41040 Bolt(for Transaxle Case & Engine Setting) |
91615-41040 |
US $2.91 |
||
| replacement | |||||
|
9161541040
|
9161541040
91612-61040 Bolt(For Transmission Case & Engine Setting) |
91612-61040 |
US $2.33 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $0.96 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.82 |
||
|
9622120905
|
9622120905
96221-20905
New Genuine Part
|
96221-20905 |
— | ||
| replacement | |||||
|
9622120905
|
9622120905
96221-34905 Clamp |
96221-34905 |
US $4.30 |
||
|
9699110080
|
9699110080
96991-10080 CLIP |
96991-10080 |
from US $1.16 |
||
|
9699112080
|
9699112080
96991-12080 Clip |
96991-12080 |
US $2.15 |
||
