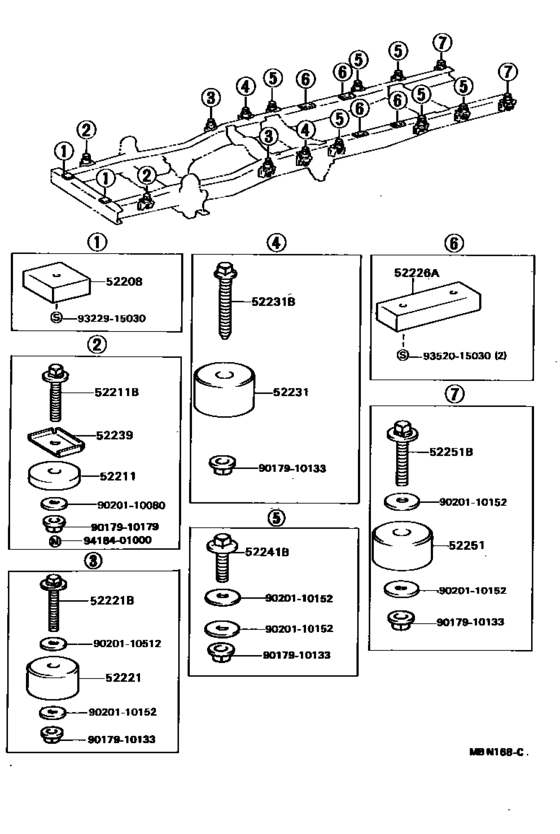

Cab Mounting & Body Mounting ([08.1987 - ] (8708- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52208
|
52208
51248-90F01 Shim Sub-Assy, Body Mounting[01.1986 - 05.1995] BU60 |
51248-90F01 |
US $24.46 |
||
|
52211
|
52211
52211-90F00 Cushion, Body Mounting, No.1 Upper[01.1986 - 05.1995] BU60 |
52211-90F00 |
US $31.74 |
||
|
52211B
|
52211B
90119-10219 Bolt(For Body Mounting No.1 Cushion)[01.1986 - 07.1988] BU60 |
90119-10219 |
US $3.35 |
||
|
52211B
|
52211B
90119-10537 Bolt(For Body Mounting No.1 Cushion)[07.1988 - 05.1991] BU60 |
90119-10537 |
US $4.22 |
||
|
52211B
|
52211B
90119-10720 Bolt(For Body Mounting No.1 Cushion)[05.1991 - 05.1995] BU60 |
90119-10720 |
US $3.49 |
||
|
52221
|
52221
52291-90F00 Cushion, Body Mount, No.2 Upper[08.1987 - 05.1995] BU60 |
52291-90F00 |
US $38.88 |
||
|
52221
|
52221
52291-90F01 Cushion, Body Mount, No.2 Upper[01.1986 - 08.1987] BU60 |
52291-90F01 |
US $51.40 |
||
|
52221B
|
52221B
90119-10219 Bolt(For Body Mounting No.1 Cushion)[08.1987 - 07.1988] BU60 |
90119-10219 |
US $3.35 |
||
|
52221B
|
52221B
90119-10278
Bolt(For Body Mount No.2 Cushion)
[01.1986 - 08.1987] BU60 |
90119-10278 |
— | ||
|
52221B
|
52221B
90119-10537 Bolt(For Body Mounting No.1 Cushion)[07.1988 - 05.1991] BU60 |
90119-10537 |
US $4.22 |
||
|
52221B
|
52221B
90119-10720 Bolt(For Body Mounting No.1 Cushion)[05.1991 - 05.1995] BU60 |
90119-10720 |
US $3.49 |
||
|
52226A
|
52226A
52212-90F01 Cushion, Body Rear Mounting, Upper[01.1986 - 05.1995] BU60 |
52212-90F01 |
US $40.91 |
||
|
52231
|
52231
52213-90F00 Cushion, Body Mount, No.3 Upper[08.1987 - 05.1995] BU60 |
52213-90F00 |
US $44.41 |
||
|
52231
|
52231
52213-90F01 Cushion, Body Mount, No.3 Upper[01.1986 - 08.1987] BU60 |
52213-90F01 |
US $57.37 |
||
|
52231B
|
52231B
90105-10019 Bolt Or Ring, Exhaust Pipe Front (For Front)[01.1986 - 08.1987] BU60 |
90105-10019 |
from US $2.09 |
||
|
52231B
|
52231B
90105-10073 Bolt(For Body Mount No.3 Cushion)[08.1987 - 05.1988] BU60 |
90105-10073 |
US $4.51 |
||
| replacement | |||||
|
52231B
|
52231B
90105-10074 Bolt(For Body Mounting No.1 Cushion)[08.1987 - 05.1988] BU60 |
90105-10074 |
US $3.68 |
||
|
52231B
|
52231B
90105-10074 Bolt(For Body Mounting No.1 Cushion)[05.1988 - 07.1988] BU60 |
90105-10074 |
US $3.68 |
||
|
52231B
|
52231B
90105-10242 Bolt(For Body Mounting No.1 Cushion)[07.1988 - 05.1991] BU60 |
90105-10242 |
US $4.22 |
||
|
52231B
|
52231B
90119-10720 Bolt(For Body Mounting No.1 Cushion)[05.1991 - 05.1995] BU60 |
90119-10720 |
US $3.49 |
||
|
52239
|
52239
52239-90F00 Plate, Body Mounting[01.1986 - 05.1995] BU60 |
52239-90F00 |
US $17.04 |
||
|
52241B
|
52241B
90105-10064 Bolt(For Body Mounting No.1 Cushion)[05.1988 - 07.1988] BU60 |
90105-10064 |
US $3.64 |
||
|
52241B
|
52241B
90119-10064 Bolt(For Body Mount No.4 Cushion)[08.1987 - 05.1988] BU60 |
90119-10064 |
US $3.06 |
||
| replacement | |||||
|
52241B
|
52241B
90119-10657 Bolt(For Body Mount No.4 Cushion)[08.1987 - 05.1988] BU60 |
90119-10657 |
US $3.94 |
||
|
52241B
|
52241B
90119-10219 Bolt(For Body Mounting No.1 Cushion)[01.1986 - 08.1987] BU60 |
90119-10219 |
US $3.35 |
||
|
52241B
|
52241B
90119-10538 Bolt(For Body Mounting No.1 Cushion)[07.1988 - 05.1995] BU60 |
90119-10538 |
US $3.49 |
||
|
52251
|
52251
52291-90F00 Cushion, Body Mount, No.2 Upper[08.1987 - 05.1995] BU60 |
52291-90F00 |
US $38.88 |
||
|
52251
|
52251
52291-90F01 Cushion, Body Mount, No.2 Upper[01.1986 - 08.1987] BU60 |
52291-90F01 |
US $51.40 |
||
|
52251B
|
52251B
90119-10219 Bolt(For Body Mounting No.1 Cushion)[08.1987 - 07.1988] BU60 |
90119-10219 |
US $3.35 |
||
|
52251B
|
52251B
90119-10278
Bolt(For Body Mount No.2 Cushion)
[01.1986 - 08.1987] BU60 |
90119-10278 |
— | ||
|
52251B
|
52251B
90119-10537 Bolt(For Body Mounting No.1 Cushion)[07.1988 - 05.1991] BU60 |
90119-10537 |
US $4.22 |
||
|
52251B
|
52251B
90119-10720 Bolt(For Body Mounting No.1 Cushion)[05.1991 - 05.1995] BU60 |
90119-10720 |
US $3.49 |
||
|
9017910133
|
9017910133
90179-10133 NUT |
90179-10133 |
US $2.15 |
||
|
9017910179
|
9017910179
90179-10179 New Genuine Part |
90179-10179 |
US $2.62 |
||
|
9020110080
|
9020110080
90201-10080 New Genuine Part |
90201-10080 |
US $4.22 |
||
|
9020110152
|
9020110152
90201-10152 WASHER |
90201-10152 |
from US $0.84 |
||
|
9020110512
|
9020110512
90201-10512
New Genuine Part
|
90201-10512 |
— | ||
|
9322915030
|
9322915030
93229-15030 New Genuine Part |
93229-15030 |
US $1.46 |
||
|
9352015030
|
9352015030
93520-15030 New Genuine Part |
93520-15030 |
US $1.46 |
||
|
9418401000
|
9418401000
94184-01000 Nut |
94184-01000 |
from US $1.10 |
||
