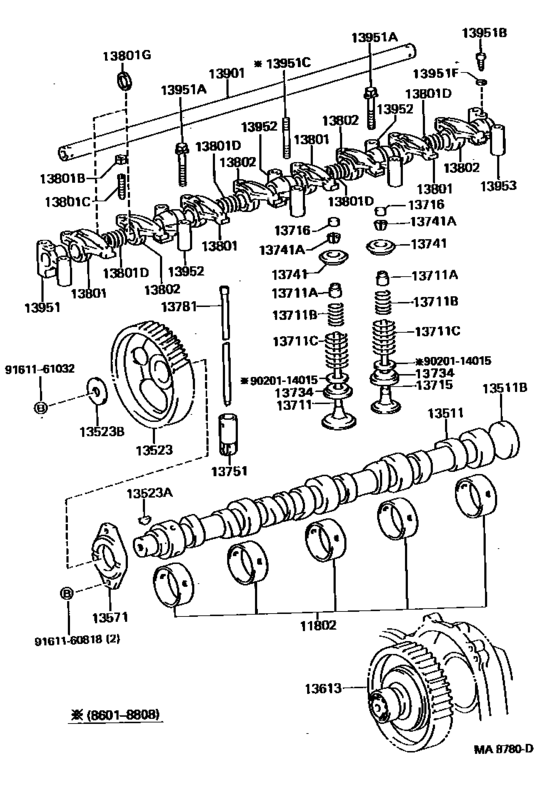

Camshaft & Valve ([01.1986 - ] (8601- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11802
|
11802
11802-56020
Bearing Set, Camshaft
[01.1986 - 06.1986] B..BU60 ＳＴＤ |
11802-56020 |
— | ||
|
11802
|
11802
11802-56021
Bearing Set, Camshaft
[06.1986 - 05.1988] B..BU60 ＳＴＤ |
11802-56021 |
— | ||
|
11802
|
11802
11802-56030 Bearing Set, Camshaft[08.1988 - 05.1995] B..BU60 ＳＴＤ |
11802-56030 |
US $91.73 |
||
|
13511
|
13511
13511-56030
Camshaft
[01.1986 - 08.1988] B..BU60 |
13511-56030 |
— | ||
|
13511
|
13511
13511-56060 Camshaft[08.1988 - 05.1995] B..BU60 |
13511-56060 |
US $585.31 |
||
|
13511B
|
13511B
90331-56001
Plug, Expansion(For Camshaft)
[01.1986 - 05.1988] B..BU60 OD=56 |
90331-56001 |
— | ||
|
13511B
|
13511B
90331-58001 Plug, Expansion(For Camshaft)[05.1988 - 05.1995] B..BU60 |
90331-58001 |
US $5.91 |
||
|
13523
|
13523
13523-56040 Gear Or Sprocket, Camshaft Timing[01.1986 - 05.1995] B..BU60 |
13523-56040 |
US $221.31 |
||
| replacement | |||||
|
13523
|
13523
13523-58010 Gear Or Sprocket, Camshaft Timing[01.1986 - 05.1995] B..BU60 |
13523-58010 |
US $160.74 |
||
|
13523A
|
13523A
95161-10519 Key(For Oil Pump Drive Spline)[01.1986 - 01.1993] B..BU60 |
95161-10519 |
from US $1.60 |
||
|
13523A
|
13523A
95161-30519 Key(For Crankshaft Timing Gear)[01.1993 - 05.1995] B..BU60 |
95161-30519 |
US $3.32 |
||
|
13523B
|
13523B
90201-10227 Washer, Plate(For Timing Gear)[01.1986 - 08.1988] B..BU60 |
90201-10227 |
US $3.06 |
||
|
13571
|
13571
13571-56020
Plate, Camshaft Thrust
[01.1986 - 08.1988] B..BU60 |
13571-56020 |
— | ||
| replacement | |||||
|
13571
|
13571
13571-56030 Plate, Camshaft Thrust[01.1986 - 08.1988] B..BU60 |
13571-56030 |
US $34.25 |
||
|
13571
|
13571
13571-56030 Plate, Camshaft Thrust[08.1988 - 05.1995] B..BU60 |
13571-56030 |
US $34.25 |
||
|
13613
|
13613
22407-56020 Gear, Injection Pump Drive[01.1986 - 08.1988] B..BU60 |
22407-56020 |
US $205.30 |
||
| replacement | |||||
|
13613
|
13613
22407-56021 Gear, Injection Pump Drive[01.1986 - 08.1988] B..BU60 |
22407-56021 |
US $200.93 |
||
|
13613
|
13613
22407-56030
Gear, Injection Pump Drive
[08.1988 - 05.1995] B..BU60 |
22407-56030 |
— | ||
|
13711
|
13711
13711-56030
Valve, Intake
[01.1986 - 08.1988] B..BU60 |
13711-56030 |
— | ||
|
13711
|
13711
13711-56050 Valve, Intake[08.1988 - 05.1995] B..BU60 |
13711-56050 |
US $39.17 |
||
|
13711A
|
13711A
90913-02051 Seal Or Ring, O(For Valve Stem Oil)[01.1986 - 08.1988] B..BU60 |
90913-02051 |
from US $7.14 |
||
|
13711A
|
13711A
90913-02076 Seal Or Ring, O(For Valve Stem Oil)[08.1988 - 05.1995] B..BU60 |
90913-02076 |
from US $4.54 |
||
|
13711B
|
13711B
90501-23018 Spring, Compression(For Inner)[01.1986 - 08.1988] B..BU60 |
90501-23018 |
US $4.84 |
||
|
13711B
|
13711B
90501-33012 Spring, Compression(For Inner)[08.1988 - 05.1995] B..BU60 |
90501-33012 |
US $4.66 |
||
|
13711C
|
13711C
90501-45032 Spring, Compression(For Outer)[08.1988 - 05.1995] B..BU60 |
90501-45032 |
US $7.71 |
||
|
13711C
|
13711C
90501-47003 Spring, Compression(For Inner)[01.1986 - 08.1988] B..BU60 |
90501-47003 |
US $10.57 |
||
|
13715
|
13715
13715-56031 Valve, Exhaust[01.1986 - 08.1988] B..BU60 |
13715-56031 |
US $62.21 |
||
|
13715
|
13715
13715-56050 Valve, Exhaust[08.1988 - 05.1995] B..BU60 |
13715-56050 |
US $53.14 |
||
|
13716
|
13716
13716-56010 Cap, Valve Stem[08.1988 - 05.1995] B..BU60 |
13716-56010 |
US $3.16 |
||
|
13734
|
13734
13734-56010 Seat, Valve Spring[08.1988 - 05.1995] B..BU60 |
13734-56010 |
from US $3.59 |
||
|
13741
|
13741
13741-56021
Retainer, Valve Spring
[01.1986 - 08.1988] B..BU60 |
13741-56021 |
— | ||
|
13741
|
13741
13741-56040 Retainer, Valve Spring[08.1988 - 05.1995] B..BU60 |
13741-56040 |
US $5.53 |
||
|
13741A
|
13741A
90913-03019 Lock, Valve Spring Retainer[01.1986 - 08.1988] B..BU60 |
90913-03019 |
US $3.40 |
||
|
13741A
|
13741A
90913-03024 Lock, Valve Spring Retainer[08.1988 - 05.1995] B..BU60 |
90913-03024 |
from US $1.46 |
||
|
13751
|
13751
13750-58010
Lifter, Valve
[08.1988 - 05.1995] B..BU60 |
13750-58010 |
— | ||
| replacement | |||||
|
13751
|
13751
13750-58011 Lifter, Valve[08.1988 - 05.1995] B..BU60 |
13750-58011 |
from US $19.65 |
||
|
13751
|
13751
13751-56020
Lifter, Valve
[01.1986 - 08.1988] B..BU60 |
13751-56020 |
— | ||
|
13781
|
13781
13781-56010 Rod, Valve Push[01.1986 - 08.1988] B..BU60 |
13781-56010 |
from US $14.10 |
||
|
13781
|
13781
13781-56020 Rod, Valve Push[08.1988 - 05.1995] B..BU60 |
13781-56020 |
from US $11.29 |
||
|
13801
|
13801
13811-56030
Arm Sub-Assy, Valve Rocker, No.1
[01.1986 - 08.1988] B..BU60 |
13811-56030 |
— | ||
|
13801
|
13801
13811-56050 Arm Sub-Assy, Valve Rocker, No.1[08.1988 - 05.1995] B..BU60 |
13811-56050 |
US $36.55 |
||
| replacement | |||||
|
13801
|
13801
13811-58020 Arm Sub-Assy, Valve Rocker, No.1[08.1988 - 05.1995] B..BU60 |
13811-58020 |
US $34.36 |
||
|
13801B
|
13801B
90041-70001
Nut, Hexagon(For Valve Adjusting)
[01.1986 - 04.1986] B..BU60 |
90041-70001 |
— | ||
|
13801B
|
13801B
90170-08022
Nut, Hexagon(For Valve Adjusting)
[04.1986 - 08.1988] B..BU60 |
90170-08022 |
— | ||
|
13801B
|
13801B
90179-08129 Nut, Hexagon(For Valve Adjusting)[08.1988 - 05.1995] B..BU60 |
90179-08129 |
US $2.18 |
||
|
13801C
|
13801C
90913-05021 Screw, Valve Adjusting[01.1986 - 08.1988] B..BU60 |
90913-05021 |
US $4.89 |
||
|
13801C
|
13801C
90913-05022 Screw, Valve Adjusting[08.1988 - 05.1995] B..BU60 |
90913-05022 |
US $4.95 |
||
| replacement | |||||
|
13801C
|
13801C
90913-05025 Screw, Valve Adjusting[08.1988 - 05.1995] B..BU60 |
90913-05025 |
US $6.81 |
||
|
13801D
|
13801D
90501-16114 Spring, Compression(For Rocker Arm)[08.1988 - 05.1995] B..BU60 |
90501-16114 |
US $1.46 |
||
|
13801D
|
13801D
90501-16163
Spring, Compression(For Rocker Arm)
[01.1986 - 05.1988] B..BU60 WD=1.6,CW=7.5 |
90501-16163 |
— | ||
|
13801G
|
13801G
90201-19009 Washer, Plate(For Valve Rocker Arm)[08.1988 - 05.1995] B..BU60 |
90201-19009 |
US $1.46 |
||
|
13802
|
13802
13812-56030
Arm Sub-Assy, Valve Rocker, No.2
[01.1986 - 08.1988] B..BU60 |
13812-56030 |
— | ||
|
13802
|
13802
13812-56040 Arm Sub-Assy, Valve Rocker, No.2[08.1988 - 05.1995] B..BU60 |
13812-56040 |
US $36.55 |
||
| replacement | |||||
|
13802
|
13802
13812-58020 Arm Sub-Assy, Valve Rocker, No.2[08.1988 - 05.1995] B..BU60 |
13812-58020 |
US $29.98 |
||
|
13901
|
13901
13901-56020
Shaft Sub-Assy, Valve Rocker, No.1
[01.1986 - 04.1988] B..BU60 |
13901-56020 |
— | ||
| replacement | |||||
|
13901
|
13901
13901-56030 Shaft Sub-Assy, Valve Rocker, No.1[01.1986 - 04.1988] B..BU60 |
13901-56030 |
from US $43.33 |
||
|
13901
|
13901
13901-56030 Shaft Sub-Assy, Valve Rocker, No.1[04.1988 - 05.1995] B..BU60 |
13901-56030 |
from US $43.33 |
||
|
13951
|
13951
13951-56010 Support, Valve Rocker, No.1[01.1986 - 08.1988] B..BU60 |
13951-56010 |
US $34.07 |
||
| replacement | |||||
|
13951
|
13951
13951-56011 Support, Valve Rocker, No.1[01.1986 - 08.1988] B..BU60 |
13951-56011 |
US $32.03 |
||
|
13951
|
13951
13951-56030 Support, Valve Rocker, No.1[08.1988 - 05.1995] B..BU60 |
13951-56030 |
US $32.18 |
||
|
13951A
|
13951A
90105-08165 Bolt(For Rocker Support Set)[08.1988 - 05.1995] B..BU60 ＊８−１．２５ＰＸ６３−３０ |
90105-08165 |
US $1.51 |
||
|
13951A
|
13951A
90105-08177 Bolt(For Rocker Support Set)[08.1988 - 05.1995] B..BU60 ＊８−１．２５ＰＸ５３−３０ |
90105-08177 |
US $1.46 |
||
|
13951A
|
13951A
91611-60855 Bolt(For Rocker Support Set)[01.1986 - 05.1988] B..BU60 *8-1.25PX55-30 |
91611-60855 |
US $1.79 |
||
|
13951A
|
13951A
91611-60865 Bolt(For Rocker Support Set)[01.1986 - 05.1988] B..BU60 *8-1.25PX65-30 |
91611-60865 |
US $2.15 |
||
|
13951B
|
13951B
13958-56010 Screw Or Bolt(For Valve Rocker Shaft Lock)[01.1986 - 05.1995] B..BU60 |
13958-56010 |
US $3.04 |
||
|
13951C
|
13951C
90116-08123
Bolt, Stud(For Rocker Support)
[01.1986 - 05.1988] B..BU60 L=84,S=9&29 |
90116-08123 |
— | ||
|
13951F
|
13951F
90201-06177 Washer, Seal(For Head Cover Set)[01.1986 - 08.1988] B..BU60 |
90201-06177 |
US $0.93 |
||
|
13951F
|
13951F
90201-06350 Washer, Seal(For Head Cover Set)[08.1988 - 05.1995] B..BU60 |
90201-06350 |
US $0.87 |
||
|
13952
|
13952
13952-56010 Support, Valve Rocker, No.2[01.1986 - 08.1988] B..BU60 |
13952-56010 |
US $37.13 |
||
| replacement | |||||
|
13952
|
13952
13952-56011 Support, Valve Rocker, No.2[01.1986 - 08.1988] B..BU60 |
13952-56011 |
US $34.51 |
||
|
13952
|
13952
13952-56030 Support, Valve Rocker, No.2[08.1988 - 05.1995] B..BU60 |
13952-56030 |
US $34.51 |
||
|
13953
|
13953
13953-56010 Support, Valve Rocker, No.3[01.1986 - 08.1988] B..BU60 |
13953-56010 |
US $34.07 |
||
| replacement | |||||
|
13953
|
13953
13953-56011 Support, Valve Rocker, No.3[01.1986 - 08.1988] B..BU60 |
13953-56011 |
US $32.03 |
||
|
13953
|
13953
13953-56030 Support, Valve Rocker, No.3[08.1988 - 05.1995] B..BU60 |
13953-56030 |
US $32.18 |
||
|
9020114015
|
9020114015
90201-14015
New Genuine Part
|
90201-14015 |
— | ||
|
9161160818
|
9161160818
91611-60818
Bolt(For Oil Receiver Pipe)
|
91611-60818 |
— | ||
| replacement | |||||
|
9161160818
|
9161160818
90119-08830 Bolt(For Oil Receiver Pipe) |
90119-08830 |
US $1.79 |
||
|
9161161032
|
9161161032
91611-61032 New Genuine Part |
91611-61032 |
US $2.77 |
||
| replacement | |||||
|
9161161032
|
9161161032
91612-61032 New Genuine Part |
91612-61032 |
US $1.65 |
||
