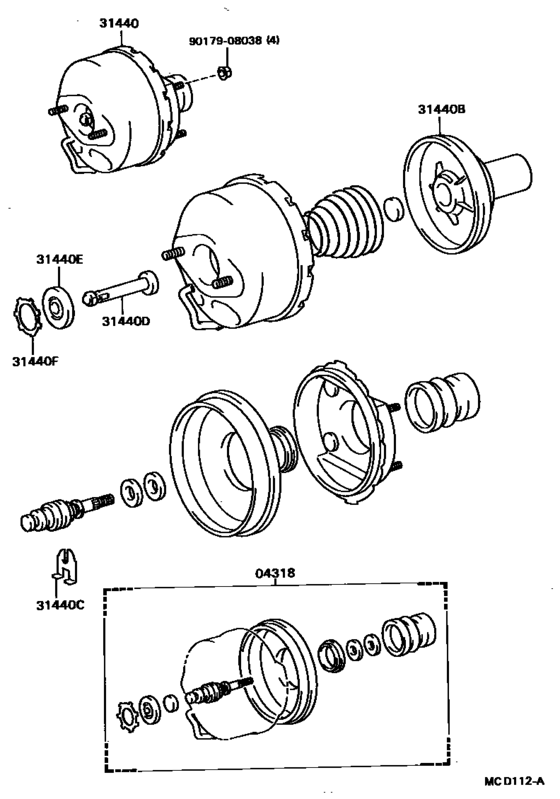

Clutch Booster ([01.1986 - ] (8601- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04318
|
04318
04318-36010
Booster Kit, Clutch
[01.1986 - 05.1995] BU60 |
04318-36010 |
— | ||
|
31440
|
31440
31440-36030
Booster Assy, Clutch W/air Cleaner
[01.1986 - 05.1995] BU60 |
31440-36030 |
— | ||
|
31440B
|
31440B
44642-87502 Piston, Booster(For Clutch Booster)[01.1986 - 05.1995] BU60 |
44642-87502 |
US $35.64 |
||
|
31440C
|
31440C
44635-12480 Key, Valve Stopper(For Clutch Booster)[01.1986 - 08.1987] BU60 |
44635-12480 |
US $2.62 |
||
|
31440C
|
31440C
44635-36010 Key, Valve Stopper(For Clutch Booster)[08.1987 - 05.1995] BU60 |
44635-36010 |
US $2.62 |
||
|
31440D
|
31440D
44606-12520
Rod Sub-Assy, Booster Piston(For Clutch Booster)
[01.1986 - 05.1995] BU60 |
44606-12520 |
— | ||
|
31440E
|
31440E
44621-28120 Seal, Booster Body No.1(For Clutch Booster)[01.1986 - 05.1995] BU60 |
44621-28120 |
from US $4.24 |
||
|
31440F
|
31440F
44628-28120 Ring, Circular Internal(For Clutch Booster)[01.1986 - 05.1995] BU60 |
44628-28120 |
US $6.99 |
||
|
9017908038
|
9017908038
90179-08038 Nut (For Transmission Control Cable) |
90179-08038 |
from US $0.78 |
