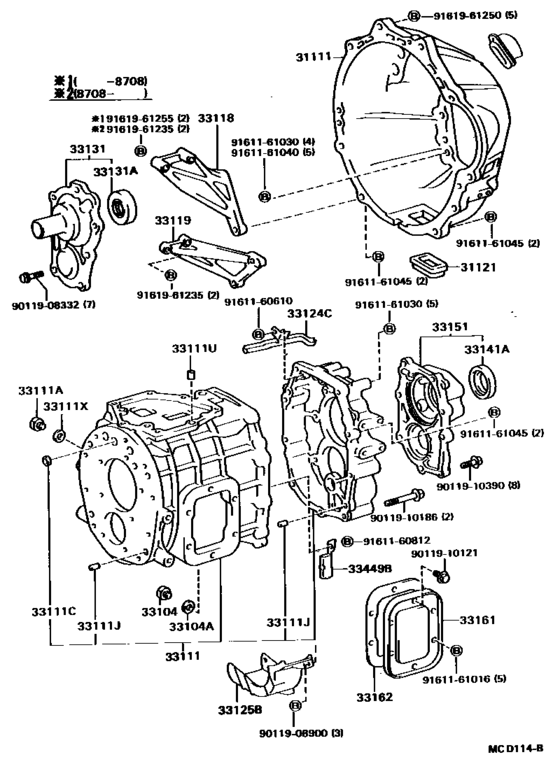

Clutch Housing & Transmission Case (Mtm) ([01.1986 - 01.1993] (8601-9301)) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31111
|
31111
31111-36220 Housing, Clutch[01.1986 - 08.1988] BU60 |
31111-36220 |
US $598.42 |
||
| replacement | |||||
|
31111
|
31111
31111-36222
Housing, Clutch
[01.1986 - 08.1988] BU60 |
31111-36222 |
— | ||
|
31111
|
31111
31111-36221 Housing, Clutch[08.1988 - 04.1990] BU60 |
31111-36221 |
US $451.36 |
||
| replacement | |||||
|
31111
|
31111
31111-36222
Housing, Clutch
[08.1988 - 04.1990] BU60 |
31111-36222 |
— | ||
|
31111
|
31111
31111-36222
Housing, Clutch
[04.1990 - 01.1993] BU60 |
31111-36222 |
— | ||
|
31111
|
31111
31111-36310 Housing, Clutch[01.1993 - 05.1995] BU60 |
31111-36310 |
US $393.12 |
||
|
31121
|
31121
31121-36040
Cover, Clutch Housing, No.1
[01.1986 - 05.1995] BU60 |
31121-36040 |
— | ||
| replacement | |||||
|
31121
|
31121
31121-36110 Cover, Clutch Housing, No.1[01.1986 - 05.1995] BU60 |
31121-36110 |
from US $3.44 |
||
|
33104
|
33104
90341-18006 Plug (No magnet)[01.1986 - 05.1995] BU60 |
90341-18006 |
from US $3.23 |
||
|
33104A
|
33104A
90430-18008 Gasket[01.1986 - 05.1995] BU60 |
90430-18008 |
from US $0.87 |
||
| replacement | |||||
|
33104A
|
33104A
90430-T0021 Gasket(For Manual Transmission Filler Plug)[01.1986 - 05.1995] BU60 |
90430-T0021 |
US $0.99 |
||
|
33111
|
33111
33101-36050 Case Sub-Assy, Manual Transmission[01.1986 - 07.1990] BU60 |
33101-36050 |
US $963.87 |
||
| replacements | |||||
|
33111
|
33111
33101-36082 Case Sub-Assy, Manual Transmission[01.1986 - 07.1990] BU60 |
33101-36082 |
US $997.36 |
||
|
33111
|
33111
90364-28018 Bearing, Reverse Idler Gear[01.1986 - 07.1990] BU60 |
90364-28018 |
from US $34.61 |
||
|
33111
|
33111
33205-36062 Shaft Sub-Assy, Gear Shift Fork, No.1[01.1986 - 07.1990] BU60 |
33205-36062 |
US $75.71 |
||
|
33111
|
33111
33451-36050 Shaft, Reverse Idler Gear[01.1986 - 07.1990] BU60 |
33451-36050 |
US $14.27 |
||
|
33111
|
33111
33461-36090 Gear Sub-Assy, Reverse Idler[01.1986 - 07.1990] BU60 |
33461-36090 |
US $113.57 |
||
|
33111
|
33111
33461-36100 Gear Sub-Assy, Reverse Idler[01.1986 - 07.1990] BU60 |
33461-36100 |
US $113.57 |
||
|
33111
|
33111
33462-60020 Washer, Reverse Idler Thrust[01.1986 - 07.1990] BU60 |
33462-60020 |
from US $5.21 |
||
|
33111
|
33111
33464-60010 Washer, Reverse Idler Thrust, No.2[01.1986 - 07.1990] BU60 |
33464-60010 |
from US $4.30 |
||
|
33111
|
33111
33101-36051 Case Sub-Assy, Manual Transmission[07.1990 - 10.1992] BU60 |
33101-36051 |
US $963.87 |
||
| replacements | |||||
|
33111
|
33111
90364-28018 Bearing, Reverse Idler Gear[07.1990 - 10.1992] BU60 |
90364-28018 |
from US $34.61 |
||
|
33111
|
33111
33205-36062 Shaft Sub-Assy, Gear Shift Fork, No.1[07.1990 - 10.1992] BU60 |
33205-36062 |
US $75.71 |
||
|
33111
|
33111
33451-36050 Shaft, Reverse Idler Gear[07.1990 - 10.1992] BU60 |
33451-36050 |
US $14.27 |
||
|
33111
|
33111
33461-36090 Gear Sub-Assy, Reverse Idler[07.1990 - 10.1992] BU60 |
33461-36090 |
US $113.57 |
||
|
33111
|
33111
33461-36100 Gear Sub-Assy, Reverse Idler[07.1990 - 10.1992] BU60 |
33461-36100 |
US $113.57 |
||
|
33111
|
33111
33462-60020 Washer, Reverse Idler Thrust[07.1990 - 10.1992] BU60 |
33462-60020 |
from US $5.21 |
||
|
33111
|
33111
33464-60010 Washer, Reverse Idler Thrust, No.2[07.1990 - 10.1992] BU60 |
33464-60010 |
from US $4.30 |
||
|
33111
|
33111
33101-36082 Case Sub-Assy, Manual Transmission[07.1990 - 10.1992] BU60 |
33101-36082 |
US $997.36 |
||
|
33111
|
33111
33101-36080 Case Sub-Assy, Manual Transmission[10.1992 - 08.1994] BU60 |
33101-36080 |
US $992.99 |
||
| replacement | |||||
|
33111
|
33111
33101-36082 Case Sub-Assy, Manual Transmission[10.1992 - 08.1994] BU60 |
33101-36082 |
US $997.36 |
||
|
33111
|
33111
33101-36081 Case Sub-Assy, Manual Transmission[08.1994 - 01.1995] BU60 |
33101-36081 |
US $992.99 |
||
| replacement | |||||
|
33111
|
33111
33101-36082 Case Sub-Assy, Manual Transmission[08.1994 - 01.1995] BU60 |
33101-36082 |
US $997.36 |
||
|
33111
|
33111
33101-36082 Case Sub-Assy, Manual Transmission[01.1995 - 05.1995] BU60 |
33101-36082 |
US $997.36 |
||
|
33111A
|
33111A
90341-18006 Plug (No magnet)[01.1986 - 05.1995] BU60 |
90341-18006 |
from US $3.23 |
||
|
33111C
|
33111C
90331-16050
Plug(For Transmission Case)
[01.1986 - 09.1986] BU60 |
90331-16050 |
— | ||
| replacement | |||||
|
33111C
|
33111C
96411-11600 Plug[01.1986 - 09.1986] BU60 |
96411-11600 |
US $4.66 |
||
|
33111C
|
33111C
96411-11600 Plug[09.1986 - 05.1995] BU60 |
96411-11600 |
US $4.66 |
||
|
33111J
|
33111J
90250-12002 Pin, Straight(For Manual Transmission Case)[12.1992 - 05.1995] BU60 長さ＝１６，外径＝１２,ｱﾘ(*EB) |
90250-12002 |
from US $1.24 |
||
|
33111J
|
33111J
90250-12146 Pin, Straight(For Flywheel Housing)[01.1986 - 05.1988] BU60 長さ＝１７，外径＝１２ |
90250-12146 |
US $2.15 |
||
|
33111J
|
33111J
90250-12216 Pin, Straight(For Manual Transmission Case)[01.1986 - 05.1988] BU60 長さ＝１４，外径＝１２,OD=12,L=14 |
90250-12216 |
US $2.04 |
||
|
33111U
|
33111U
90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting)[01.1986 - 05.1988] BU60 長さ＝１１，外径＝１１,OD=11 |
90253-11001 |
US $2.15 |
||
|
33111U
|
33111U
90253-13017 Pin, Ring W/head[01.1986 - 05.1988] BU60 長さ＝１２，外径＝１３,OD=13 |
90253-13017 |
from US $1.31 |
||
|
33111X
|
33111X
90430-18008 Gasket[01.1986 - 05.1995] BU60 |
90430-18008 |
from US $0.87 |
||
| replacement | |||||
|
33111X
|
33111X
90430-T0021 Gasket(For Manual Transmission Filler Plug)[01.1986 - 05.1995] BU60 |
90430-T0021 |
US $0.99 |
||
|
33118
|
33118
33118-36020
Plate, Stiffener, Rh(Mtm)
[01.1986 - 08.1987] BU60 |
33118-36020 |
— | ||
|
33118
|
33118
33118-36021 Plate, Stiffener, Rh(Mtm)[08.1987 - 05.1995] BU60 |
33118-36021 |
from US $27.26 |
||
|
33119
|
33119
33119-36020
Plate, Stiffener, Lh(Mtm)
[01.1986 - 08.1988] BU60 |
33119-36020 |
— | ||
|
33119
|
33119
33119-36040 Plate, Stiffener, Lh(Mtm)[08.1988 - 10.1989] BU60 |
33119-36040 |
US $28.39 |
||
| replacement | |||||
|
33119
|
33119
33119-36042 Plate, Stiffener, Lh(Mtm)[08.1988 - 10.1989] BU60 |
33119-36042 |
US $24.81 |
||
|
33119
|
33119
33119-36041 Plate, Stiffener, Lh(Mtm)[10.1989 - 03.1995] BU60 |
33119-36041 |
US $28.39 |
||
| replacement | |||||
|
33119
|
33119
33119-36042 Plate, Stiffener, Lh(Mtm)[10.1989 - 03.1995] BU60 |
33119-36042 |
US $24.81 |
||
|
33119
|
33119
33119-36042 Plate, Stiffener, Lh(Mtm)[03.1995 - 05.1995] BU60 |
33119-36042 |
US $24.81 |
||
|
33124C
|
33124C
33124-36030 Pipe, Oil Receiver, No.1(Mtm)[01.1986 - 05.1995] BU60 |
33124-36030 |
US $4.37 |
||
|
33125B
|
33125B
33125-36010 Receiver, Manual Transmission Case[05.1990 - 10.1992] BU60 |
33125-36010 |
US $29.99 |
||
| replacement | |||||
|
33125B
|
33125B
33125-36020 Receiver, Manual Transmission Case[05.1990 - 10.1992] BU60 |
33125-36020 |
US $18.78 |
||
|
33125B
|
33125B
33125-36020 Receiver, Manual Transmission Case[10.1992 - 05.1995] BU60 |
33125-36020 |
US $18.78 |
||
|
33131
|
33131
33018-36050 Retainer, Bearing, Front(Mtm)[01.1986 - 10.1989] BU60 |
33018-36050 |
US $96.10 |
||
|
33131
|
33131
33018-36060 Retainer, Bearing, Front(Mtm)[10.1989 - 05.1995] BU60 |
33018-36060 |
US $59.40 |
||
|
33131A
|
33131A
90311-32012 Seal, Oil(For Transmission Front Bearing Retainer)[01.1986 - 05.1995] BU60 |
90311-32012 |
from US $5.87 |
||
|
33141A
|
33141A
90311-48011 Seal, Oil(For Transmission Rear Bearing Retainer)[01.1986 - 05.1995] BU60 |
90311-48011 |
from US $8.42 |
||
|
33151
|
33151
33017-36010 Retainer, Output Shaft Rear Bearing(Mtm)[01.1986 - 08.1992] BU60 |
33017-36010 |
US $170.35 |
||
| replacement | |||||
|
33151
|
33151
33017-36031 Retainer, Output Shaft Rear Bearing(Mtm)[01.1986 - 08.1992] BU60 |
33017-36031 |
US $111.82 |
||
|
33151
|
33151
33017-36030 Retainer, Output Shaft Rear Bearing(Mtm)[08.1992 - 05.1994] BU60 |
33017-36030 |
US $170.35 |
||
| replacement | |||||
|
33151
|
33151
33017-36031 Retainer, Output Shaft Rear Bearing(Mtm)[08.1992 - 05.1994] BU60 |
33017-36031 |
US $111.82 |
||
|
33151
|
33151
33017-36031 Retainer, Output Shaft Rear Bearing(Mtm)[05.1994 - 05.1995] BU60 |
33017-36031 |
US $111.82 |
||
|
33161
|
33161
33161-36010 Cover, Manual Transmission Power Take-Off[01.1986 - 05.1995] BU60 |
33161-36010 |
US $16.13 |
||
|
33162
|
33162
33162-36020 Gasket, Transmission Power Take-Off Cover(Mtm)[01.1986 - 05.1995] BU60 |
33162-36020 |
from US $6.14 |
||
|
33449B
|
33449B
33449-36010 Magnet, Transmission[01.1986 - 05.1995] BU60 |
33449-36010 |
US $12.08 |
||
|
9011908332
|
9011908332
90119-08332 Bolt(For Manual Transmission Oil Pump Cover) |
90119-08332 |
from US $1.20 |
||
|
9011908900
|
9011908900
90119-08900 New Genuine Part |
90119-08900 |
US $2.33 |
||
| replacement | |||||
|
9011908900
|
9011908900
90119-08421 New Genuine Part |
90119-08421 |
US $1.31 |
||
|
9011910121
|
9011910121
90119-10121 BOLT |
90119-10121 |
US $4.30 |
||
|
9011910186
|
9011910186
90119-10186 BOLT |
90119-10186 |
US $2.51 |
||
|
9011910390
|
9011910390
90119-10390 Bolt (For Transfer Extension Rear Housing) |
90119-10390 |
US $1.97 |
||
|
9161160610
|
9161160610
91611-60610
Bolt (For Transfer Oil Receiver No.1)
|
91611-60610 |
— | ||
| replacement | |||||
|
9161160610
|
9161160610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
from US $0.78 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161161016
|
9161161016
91611-61016
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-61016 |
— | ||
| replacement | |||||
|
9161161016
|
9161161016
91612-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91612-61016 |
US $2.51 |
||
|
9161161030
|
9161161030
91611-61030
Bolt (For Transmission Control Cable Bracket)
|
91611-61030 |
— | ||
| replacement | |||||
|
9161161030
|
9161161030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.05 |
||
|
9161161040
|
9161161040
91611-61040
Bolt(For Transaxle Case & Engine Setting)
|
91611-61040 |
— | ||
| replacement | |||||
|
9161161040
|
9161161040
91612-61040 Bolt(For Transmission Case & Engine Setting) |
91612-61040 |
US $2.33 |
||
|
9161161045
|
9161161045
91611-61045
Bolt, Hexagon(For Idle Gear Bolt Lock)
|
91611-61045 |
— | ||
| replacement | |||||
|
9161161045
|
9161161045
91612-61045 Bolt(For Transaxle & Engine Setting) |
91612-61045 |
from US $1.12 |
||
|
9161961235
|
9161961235
91619-61235 BOLT |
91619-61235 |
from US $2.15 |
||
|
9161961250
|
9161961250
91619-61250 Bolt(For Transmission Case & Engine Setting) |
91619-61250 |
from US $1.90 |
||
|
9161961255
|
9161961255
91619-61255 Bolt(For Transaxle & Engine Setting) |
91619-61255 |
US $2.15 |
||
