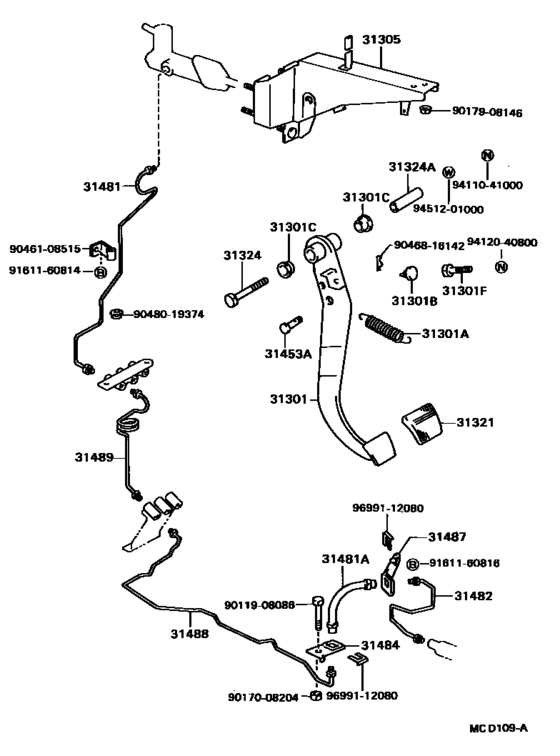

Clutch Pedal & Flexible Hose ([01.1986 - ] (8601- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31301
|
31301
31301-36180 Pedal Sub-Assy, Clutch[01.1986 - 05.1995] BU60 |
31301-36180 |
US $30.87 |
||
|
31301A
|
31301A
90506-16021
Spring(For Clutch Pedal)
[01.1986 - 05.1995] BU60 |
90506-16021 |
— | ||
|
31301B
|
31301B
90541-06008 Cushion, No.1(For Clutch Pedal)[01.1986 - 05.1995] BU60 |
90541-06008 |
from US $1.50 |
||
|
31301C
|
31301C
90386-13007 Bush(For Clutch Pedal)[01.1986 - 05.1995] BU60 |
90386-13007 |
from US $2.45 |
||
|
31301F
|
31301F
91131-50835 Bolt(For Clutch Pedal Stopper)[01.1986 - 05.1995] BU60 |
91131-50835 |
US $2.62 |
||
|
31305
|
31305
55156-90F00 Bracket Sub-Assy, Clutch Pedal[01.1986 - 05.1988] BU60 W/CLUTCH BOOSTER |
55156-90F00 |
US $78.62 |
||
|
31305
|
31305
55156-90F02 Bracket Sub-Assy, Clutch Pedal[01.1986 - 05.1988] BU60 W/CLUTCH BOOSTER & *EB |
55156-90F02 |
US $78.62 |
||
|
31321
|
31321
31321-14020 Pad, Clutch Pedal[01.1986 - 05.1995] BU60 |
31321-14020 |
from US $3.29 |
||
| replacement | |||||
|
31321
|
31321
31321YE010
PAD PEDAL
[01.1986 - 05.1995] BU60 |
31321YE010 |
— | ||
|
31324
|
31324
91121-51060 Shaft, Clutch Pedal[01.1986 - 05.1995] BU60 |
91121-51060 |
from US $2.34 |
||
|
31324A
|
31324A
90387-10003 Collar, Clutch Pedal Shaft[01.1986 - 05.1995] BU60 |
90387-10003 |
from US $3.84 |
||
|
31453A
|
31453A
90249-08018 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)[01.1986 - 05.1995] BU60 長さ＝２９．５ |
90249-08018 |
from US $2.15 |
||
|
31481
|
31481
31481-36310 Tube, Clutch Master Cylinder To Flexible Hose[01.1986 - 05.1988] BU60 W/CLUTCH BOOSTER |
31481-36310 |
US $15.29 |
||
|
31481A
|
31481A
96818-50240
Hose, Clutch, No.1
[01.1986 - 08.1988] BU60 |
96818-50240 |
— | ||
|
31481A
|
31481A
96818-50260 Hose, Clutch, No.1[08.1988 - 05.1995] BU60 |
96818-50260 |
US $19.96 |
||
|
31482
|
31482
31482-36161
Tube, Clutch Release Cylinder To Flexible Hose
[01.1986 - 05.1995] BU60 |
31482-36161 |
— | ||
| replacement | |||||
|
31482
|
31482
31482-37050 Tube, Clutch Release Cylinder To Flexible Hose[01.1986 - 05.1995] BU60 |
31482-37050 |
US $14.36 |
||
|
31484
|
31484
31484-36110 Bracket, Flexible Hose(For Clutch)[01.1986 - 08.1988] BU60 |
31484-36110 |
US $16.89 |
||
|
31484
|
31484
31484-36130 Bracket, Flexible Hose(For Clutch)[08.1988 - 05.1995] BU60 |
31484-36130 |
US $19.95 |
||
|
31487
|
31487
31487-36120 Plate, Release Tube Set[01.1986 - 05.1995] BU60 |
31487-36120 |
US $10.92 |
||
|
31488
|
31488
31488-36240 Tube, Connector To Tube Connector[01.1986 - 08.1988] BU60 |
31488-36240 |
US $22.57 |
||
|
31488
|
31488
31488-36370 Tube, Connector To Tube Connector[08.1988 - 05.1995] BU60 |
31488-36370 |
US $20.82 |
||
|
31489
|
31489
31489-36161 Tube, Tube Connector To Flexible Hose[01.1986 - 05.1995] BU60 |
31489-36161 |
US $15.29 |
||
|
9011908086
|
9011908086
90119-08086 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08086 |
US $6.81 |
||
|
9017008204
|
9017008204
90170-08204 Nut (For Propeller Shaft) |
90170-08204 |
from US $0.72 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9046108515
|
9046108515
90461-08515 Clamp Or Clip(For Nozzle Leakage Pipe Set) |
90461-08515 |
US $4.22 |
||
|
9046816142
|
9046816142
90468-16142 Clip(For Push Rod Clevis Pin) |
90468-16142 |
from US $0.80 |
||
|
9048019374
|
9048019374
90480-19374
Grommet(For Compressor To Dryer Tube)
|
90480-19374 |
— | ||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.74 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.61 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.78 |
||
|
9699112080
|
9699112080
96991-12080 Clip |
96991-12080 |
US $2.15 |
||
