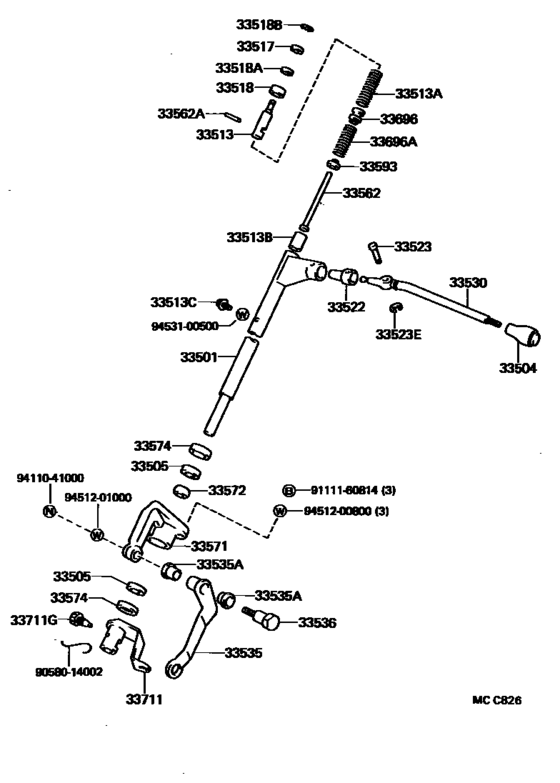

Control Shaft & Crossshaft ([01.1986 - ] (8601- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33501
|
33501
33501-26210 Shaft Sub-Assy, Control (For Column Shift)[01.1986 - 05.1995] BU60 |
33501-26210 |
US $70.32 |
||
|
33504
|
33504
33504-30110 Knob Sub-Assy, Shift Lever (For Column Shift)[01.1986 - 05.1995] BU60 |
33504-30110 |
from US $10.47 |
||
|
33505
|
33505
90303-17005 Seal Sub-Assy, Control Shaft Dust (For Column Shift)[01.1986 - 05.1995] BU60 |
90303-17005 |
US $2.51 |
||
|
33513
|
33513
33513-26020 Shaft, Control Shaft Bracket, Upper[01.1986 - 05.1995] BU60 |
33513-26020 |
US $19.66 |
||
|
33513A
|
33513A
90501-14016 Spring, Compression (For Bracket Upper Shaft)[01.1986 - 05.1995] BU60 |
90501-14016 |
US $2.62 |
||
|
33513B
|
33513B
90560-11015 Spacer (For Control Shaft Bracket Upper Shaft)[01.1986 - 05.1995] BU60 |
90560-11015 |
US $1.31 |
||
|
33513C
|
33513C
90109-05012 Bolt (For Control Shaft Bracket Upper Shaft)[01.1986 - 05.1995] BU60 |
90109-05012 |
US $2.91 |
||
|
33517
|
33517
33517-30010 Retainer, Control Shaft Upper Spring[01.1986 - 05.1995] BU60 |
33517-30010 |
US $4.66 |
||
|
33518
|
33518
33518-35010 Bush, Upper Control Shaft Piece[01.1994 - 05.1995] BU60 |
33518-35010 |
US $12.54 |
||
|
33518
|
33518
33518-36010
Bush, Upper Control Shaft Piece
[01.1986 - 01.1994] BU60 |
33518-36010 |
— | ||
| replacement | |||||
|
33518
|
33518
33518-35010 Bush, Upper Control Shaft Piece[01.1986 - 01.1994] BU60 |
33518-35010 |
US $12.54 |
||
|
33518A
|
33518A
33515-30010 Seat, Control Shaft Upper[01.1986 - 05.1995] BU60 |
33515-30010 |
US $5.73 |
||
|
33518B
|
33518B
90523-06019 Ring, E (For Upper Control Shaft Piece Bush)[01.1986 - 05.1995] BU60 |
90523-06019 |
US $3.94 |
||
|
33522
|
33522
33522-36010 Seat, Shift Lever Plate (For Column Shift)[01.1986 - 05.1995] BU60 |
33522-36010 |
from US $3.95 |
||
|
33523
|
33523
90249-07001 Pin, Shift Lever (For Column Shift)[01.1986 - 05.1995] BU60 |
90249-07001 |
US $3.14 |
||
|
33523E
|
33523E
96160-00500 Ring, E(For Over Center Lever)[01.1986 - 05.1995] BU60 |
96160-00500 |
from US $0.82 |
||
|
33530
|
33530
33541-26050 Lever Assy, Shift (For Column Shift)[01.1986 - 05.1995] BU60 |
33541-26050 |
US $31.10 |
||
|
33535
|
33535
33535-36110 Lever, Control Select (For Column Shift)[01.1986 - 05.1995] BU60 |
33535-36110 |
US $43.53 |
||
|
33535A
|
33535A
90386-13007 Bush(For Clutch Pedal)[01.1986 - 05.1995] BU60 |
90386-13007 |
from US $2.45 |
||
|
33536
|
33536
33536-25010 Shaft, Control Select Lever (For Column Shift)[01.1986 - 05.1995] BU60 |
33536-25010 |
US $9.61 |
||
|
33562
|
33562
33562-26010 Stopper, Control Shaft Upper Bracket Shaft[01.1986 - 05.1995] BU60 |
33562-26010 |
US $4.22 |
||
|
33562A
|
33562A
90254-03006 Pin(For Reverse Shift Head)[01.1986 - 05.1995] BU60 |
90254-03006 |
US $1.16 |
||
|
33571
|
33571
33571-26012 Bracket, Control Shaft, Lower (For Column Shift)[01.1986 - 05.1995] BU60 |
33571-26012 |
US $30.58 |
||
|
33572
|
33572
33572-36010 Bush, Control Shaft Lower (For Column Shift)[01.1986 - 05.1995] BU60 |
33572-36010 |
from US $5.78 |
||
|
33574
|
33574
33574-25010 Retainer, Dust Seal (For Column Shift Control Shaft)[01.1986 - 05.1995] BU60 |
33574-25010 |
US $4.66 |
||
|
33593
|
33593
33593-26030 Holder, Spring (For Select Lever)[01.1986 - 05.1995] BU60 |
33593-26030 |
US $5.10 |
||
|
33696
|
33696
33696-26020 Seat, Select Spring[01.1986 - 05.1995] BU60 |
33696-26020 |
US $5.53 |
||
|
33696A
|
33696A
90501-14069 Spring, Compression(For Reverse & 5Th Shift Return Plunger)[01.1986 - 05.1995] BU60 |
90501-14069 |
US $7.51 |
||
|
33711
|
33711
33527-26050 Lever, Control Shaft (For Column Shift)[01.1986 - 05.1995] BU60 |
33527-26050 |
US $29.70 |
||
|
33711G
|
33711G
33218-35010 Bolt, Shift Lever Lock[01.1986 - 05.1995] BU60 |
33218-35010 |
US $4.72 |
||
|
9058014002
|
9058014002
90580-14002
Wire(For Shift Lever Lock Bolt)
|
90580-14002 |
— | ||
|
9111160814
|
9111160814
91111-60814 Bolt (For Transmission Control Cable Bracket) |
91111-60814 |
US $1.46 |
||
| replacement | |||||
|
9111160814
|
9111160814
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.78 |
||
|
9453100500
|
9453100500
94531-00500 WASHER,WAVE |
94531-00500 |
US $1.93 |
||
