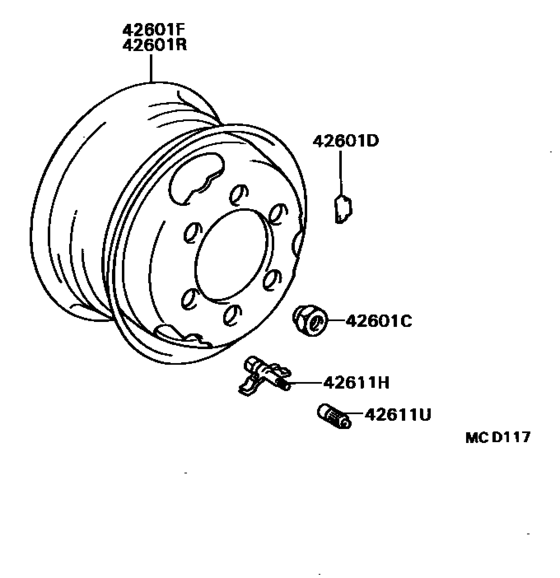

Disc Wheel & Wheel Cap ([01.1986 - ] (8601- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42601C
|
42601C
90942-01010 Nut, Hub (For Axle)[01.1986 - 05.1988] BU60 RH |
90942-01010 |
US $6.27 |
||
|
42601C
|
42601C
90942-01011 Nut, Hub (For Axle)[01.1986 - 05.1988] BU60 LH |
90942-01011 |
US $6.27 |
||
|
42601C
|
42601C
90942-01012 Nut, Hub (For Axle)[01.1986 - 05.1988] BU60 FR,RH |
90942-01012 |
US $7.17 |
||
|
42601C
|
42601C
90942-01013 Nut, Hub (For Axle)[01.1986 - 05.1988] BU60 FR,LH |
90942-01013 |
US $7.17 |
||
|
42601D
|
42601D
90942-03017 Weight, Balance (For Disc Wheel)[01.1986 - 05.1988] BU60 ２０Ｇ，厚さ＝８,20G |
90942-03017 |
US $1.97 |
||
|
42601D
|
42601D
90942-03020 Weight, Balance (For Disc Wheel)[01.1986 - 05.1988] BU60 ３０Ｇ，厚さ＝１０,30G |
90942-03020 |
US $2.15 |
||
|
42601D
|
42601D
90942-03022 Weight, Balance (For Disc Wheel)[01.1986 - 05.1988] BU60 ４０Ｇ，厚さ＝９．５,40G |
90942-03022 |
US $2.87 |
||
|
42601D
|
42601D
90942-03025 Weight, Balance (For Disc Wheel)[01.1986 - 05.1988] BU60 ５０Ｇ，厚さ＝９．５,50G |
90942-03025 |
US $2.87 |
||
|
42601D
|
42601D
90942-03027 Weight, Balance (For Disc Wheel)[01.1986 - 05.1988] BU60 ６０Ｇ，厚さ＝９．５,60G |
90942-03027 |
US $3.79 |
||
|
42601D
|
42601D
90942-03029 Weight, Balance (For Disc Wheel)[01.1986 - 05.1988] BU60 ７０Ｇ，厚さ＝９．５,70G |
90942-03029 |
US $4.08 |
||
|
42601D
|
42601D
90942-03031 Weight, Balance (For Disc Wheel)[01.1986 - 05.1988] BU60 ８０Ｇ，厚さ＝９．５,80G |
90942-03031 |
US $4.22 |
||
|
42601D
|
42601D
90942-03041 Weight, Balance (For Disc Wheel)[01.1986 - 05.1988] BU60 １０Ｇ，厚さ＝７．５,10G |
90942-03041 |
US $1.79 |
||
|
42601F
|
42601F
42601-36320 Wheel, Disc (For Front)[01.1986 - 08.1986] BU60 |
42601-36320 |
US $157.25 |
||
| replacement | |||||
|
42601F
|
42601F
42601-36400-03 Wheel, Disc[01.1986 - 08.1986] BU60 |
42601-36400-03 |
US $146.88 |
||
|
42601F
|
42601F
42601-36321-02 Wheel, Disc (For Front)[08.1986 - 10.1986] BU60 １４Ｘ５Ｊ,GRAY |
42601-36321-02 |
US $157.25 |
||
| replacement | |||||
|
42601F
|
42601F
42601-36400-03 Wheel, Disc[08.1986 - 10.1986] BU60 １４Ｘ５Ｊ,GRAY |
42601-36400-03 |
US $146.88 |
||
|
42601F
|
42601F
42601-36400-03 Wheel, Disc[10.1986 - 05.1988] BU60 １４Ｘ５Ｊ,GRAY |
42601-36400-03 |
US $146.88 |
||
|
42601R
|
42601R
42601-36320 Wheel, Disc (For Front)[01.1986 - 08.1986] BU60 |
42601-36320 |
US $157.25 |
||
| replacement | |||||
|
42601R
|
42601R
42601-36400-03 Wheel, Disc[01.1986 - 08.1986] BU60 |
42601-36400-03 |
US $146.88 |
||
|
42601R
|
42601R
42601-36321-02 Wheel, Disc (For Front)[08.1986 - 10.1986] BU60 １４Ｘ５Ｊ,GRAY |
42601-36321-02 |
US $157.25 |
||
| replacement | |||||
|
42601R
|
42601R
42601-36400-03 Wheel, Disc[08.1986 - 10.1986] BU60 １４Ｘ５Ｊ,GRAY |
42601-36400-03 |
US $146.88 |
||
|
42601R
|
42601R
42601-36400-03 Wheel, Disc[05.1988 - 08.1988] BU60 １４Ｘ５Ｊ,GRAY |
42601-36400-03 |
US $146.88 |
||
|
42611H
|
42611H
90942-05011 Extension, Valve[01.1986 - 08.1986] BU60 |
90942-05011 |
US $38.58 |
||
|
42611H
|
42611H
90942-05020 Extension, Valve[08.1986 - 05.1995] BU60 |
90942-05020 |
US $43.53 |
||
|
42611U
|
42611U
90942-05013 Cap, Tire Valve[01.1986 - 05.1988] BU60 |
90942-05013 |
US $2.62 |
||
