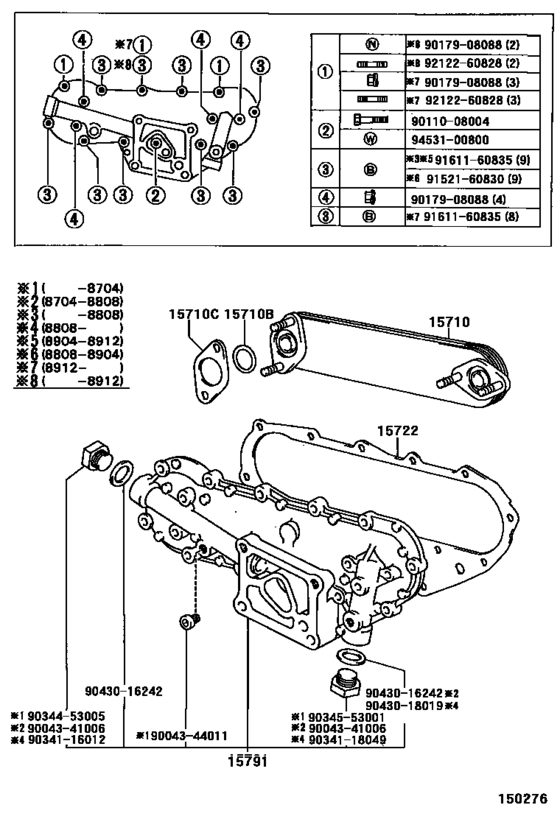

Engine Oil Cooler ([01.1986 - ] (8601- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15710
|
15710
15710-56041
Cooler Assy, Oil
[01.1986 - 08.1988] B..BU60 |
15710-56041 |
— | ||
|
15710
|
15710
15710-56100 Cooler Assy, Oil[08.1988 - 05.1995] B..BU60 |
15710-56100 |
US $534.35 |
||
|
15710B
|
15710B
90301-20001 Ring, O(For Oil Cooler)[01.1986 - 05.1995] B..BU60 |
90301-20001 |
from US $3.80 |
||
|
15710C
|
15710C
15785-54010 Gasket(For Oil Cooler)[08.1988 - 05.1995] B..BU60 |
15785-54010 |
from US $2.38 |
||
|
15710C
|
15710C
90923-05014
Gasket(For Oil Cooler)
[01.1986 - 08.1988] B..BU60 |
90923-05014 |
— | ||
| replacement | |||||
|
15710C
|
15710C
90923-05018 Gasket(For Oil Cooler)[01.1986 - 08.1988] B..BU60 |
90923-05018 |
from US $4.48 |
||
|
15722
|
15722
15725-56011
Gasket, Oil Cooler
[01.1986 - 08.1988] B..BU60 |
15725-56011 |
— | ||
| replacement | |||||
|
15722
|
15722
15725-56020 Gasket, Oil Cooler[01.1986 - 08.1988] B..BU60 |
15725-56020 |
from US $7.18 |
||
|
15722
|
15722
15725-56020 Gasket, Oil Cooler[08.1988 - 05.1995] B..BU60 |
15725-56020 |
from US $7.18 |
||
|
15791
|
15791
15701-56011
Case, Oil Cooler
[01.1986 - 08.1988] B..BU60 |
15701-56011 |
— | ||
|
15791
|
15791
15701-56030
Case, Oil Cooler
[08.1988 - 04.1989] B..BU60 |
15701-56030 |
— | ||
| replacements | |||||
|
15791
|
15791
15701-58050 Case, Oil Cooler[08.1988 - 04.1989] B..BU60 |
15701-58050 |
US $282.46 |
||
|
15791
|
15791
91611-60835 Bolt(For Clutch Release Cylinder Setting)[08.1988 - 04.1989] B..BU60 |
91611-60835 |
from US $1.61 |
||
|
15791
|
15791
15701-56031 Case, Oil Cooler[04.1989 - 12.1994] B..BU60 |
15701-56031 |
US $445.54 |
||
| replacement | |||||
|
15791
|
15791
15701-58050 Case, Oil Cooler[04.1989 - 12.1994] B..BU60 |
15701-58050 |
US $282.46 |
||
|
15791
|
15791
15701-58050 Case, Oil Cooler[12.1994 - 05.1995] B..BU60 |
15701-58050 |
US $282.46 |
||
|
9004341006
|
9004341006
90043-41006 Plug(For Transmission Case) |
90043-41006 |
US $4.37 |
||
| replacement | |||||
|
9004341006
|
9004341006
90341-16012 Plug(For Transmission Case) |
90341-16012 |
US $4.66 |
||
|
9004344011
|
9004344011
90043-44011
New Genuine Part
|
90043-44011 |
— | ||
|
9011008004
|
9011008004
90110-08004 New Genuine Part |
90110-08004 |
US $4.19 |
||
|
9017908088
|
9017908088
90179-08088
NUT
|
90179-08088 |
— | ||
| replacement | |||||
|
9017908088
|
9017908088
94185-60800 NUT |
94185-60800 |
from US $0.80 |
||
|
9034116012
|
9034116012
90341-16012 Plug(For Transmission Case) |
90341-16012 |
US $4.66 |
||
|
9034118049
|
9034118049
90341-18049 Plug(For Oil Heater Houl) |
90341-18049 |
from US $4.07 |
||
|
9034453005
|
9034453005
90344-53005 Plug, W/head Taper Screw, No.3 |
90344-53005 |
US $2.91 |
||
|
9034553001
|
9034553001
90345-53001
Plug, Water Drain Cock(For Cylinder Block)
|
90345-53001 |
— | ||
|
9043016242
|
9043016242
90430-16242 Gasket, W/head Straight Screw Plug |
90430-16242 |
from US $0.80 |
||
|
9043018019
|
9043018019
90430-18019 New Genuine Part |
90430-18019 |
US $1.16 |
||
|
9152160830
|
9152160830
91521-60830
New Genuine Part
|
91521-60830 |
— | ||
|
9161160835
|
9161160835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.61 |
||
|
9212260828
|
9212260828
92122-60828 New Genuine Part |
92122-60828 |
US $3.05 |
||
|
9453100800
|
9453100800
94531-00800 Washer (For Transfer Shift Outer Lever) |
94531-00800 |
from US $0.84 |
||
