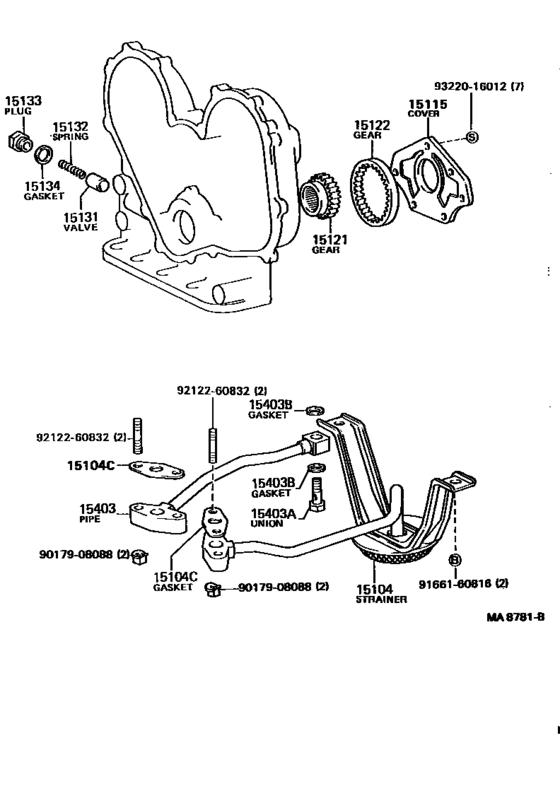

Engine Oil Pump ([01.1986 - 08.1988] (8601-8808)) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15104
|
15104
15104-56050 Strainer Sub-Assy, Oil[01.1986 - 08.1988] B..BU60 |
15104-56050 |
US $183.46 |
||
| replacement | |||||
|
15104
|
15104
15104-56062 Strainer Sub-Assy, Oil[01.1986 - 08.1988] B..BU60 |
15104-56062 |
US $124.05 |
||
|
15104
|
15104
15104-56060 Strainer Sub-Assy, Oil[08.1988 - 10.1989] B..BU60 |
15104-56060 |
US $116.48 |
||
| replacement | |||||
|
15104
|
15104
15104-56062 Strainer Sub-Assy, Oil[08.1988 - 10.1989] B..BU60 |
15104-56062 |
US $124.05 |
||
|
15104
|
15104
15104-56061
Strainer Sub-Assy, Oil
[10.1989 - 05.1995] B..BU60 |
15104-56061 |
— | ||
| replacement | |||||
|
15104
|
15104
15104-56062 Strainer Sub-Assy, Oil[10.1989 - 05.1995] B..BU60 |
15104-56062 |
US $124.05 |
||
|
15104C
|
15104C
15149-56020
Gasket(For Oil Strainer)
[08.1988 - 05.1995] B..BU60 |
15149-56020 |
— | ||
| replacement | |||||
|
15104C
|
15104C
15149-58010 Gasket(For Oil Strainer)[08.1988 - 05.1995] B..BU60 |
15149-58010 |
US $3.03 |
||
|
15104C
|
15104C
15193-56020
Gasket(For Oil Strainer)
[01.1986 - 08.1988] B..BU60 |
15193-56020 |
— | ||
| replacement | |||||
|
15104C
|
15104C
15149-58010 Gasket(For Oil Strainer)[01.1986 - 08.1988] B..BU60 |
15149-58010 |
US $3.03 |
||
|
15115
|
15115
15115-56030 Cover, Oil Pump[01.1986 - 08.1988] B..BU60 |
15115-56030 |
US $52.02 |
||
|
15115
|
15115
15115-56040 Cover, Oil Pump[08.1988 - 05.1995] B..BU60 |
15115-56040 |
US $40.88 |
||
|
15121
|
15121
15121-56030 Gear, Oil Pump Drive[01.1986 - 08.1988] B..BU60 |
15121-56030 |
US $63.03 |
||
|
15121
|
15121
15121-56040 Gear, Oil Pump Drive[08.1988 - 05.1995] B..BU60 |
15121-56040 |
from US $41.73 |
||
|
15122
|
15122
15122-56030 Gear, Oil Pump Driven[01.1986 - 08.1988] B..BU60 |
15122-56030 |
from US $75.29 |
||
|
15122
|
15122
15122-56040 Gear, Oil Pump Driven[08.1988 - 05.1995] B..BU60 |
15122-56040 |
from US $68.71 |
||
|
15131
|
15131
15131-24010 Valve, Oil Pump Relief[01.1986 - 05.1995] B..BU60 |
15131-24010 |
from US $3.88 |
||
|
15132
|
15132
15132-56080 Spring, Oil Pump Relief Valve[08.1988 - 05.1995] B..BU60 |
15132-56080 |
US $2.80 |
||
|
15132
|
15132
15132-76011 Spring, Oil Pump Relief Valve[01.1986 - 08.1988] B..BU60 |
15132-76011 |
from US $2.30 |
||
|
15133
|
15133
15133-20010 Plug, Oil Pump Relief Valve[01.1986 - 05.1995] B..BU60 |
15133-20010 |
from US $3.17 |
||
|
15134
|
15134
15134-20010 Gasket, Oil Pump Relief Valve[01.1986 - 05.1995] B..BU60 |
15134-20010 |
from US $1.88 |
||
|
15403
|
15403
15403-56041 Pipe Sub-Assy, Oil Pump Outlet[01.1986 - 08.1988] B..BU60 |
15403-56041 |
US $141.23 |
||
|
15403
|
15403
15403-56050 Pipe Sub-Assy, Oil Pump Outlet[08.1988 - 05.1995] B..BU60 |
15403-56050 |
US $54.16 |
||
|
15403A
|
15403A
90401-18002
Union(For Oil Pump Outlet Pipe)
[01.1986 - 08.1988] B..BU60 |
90401-18002 |
— | ||
|
15403A
|
15403A
90401-20009 Union(For Oil Pump Outlet Pipe)[08.1988 - 05.1995] B..BU60 |
90401-20009 |
US $5.42 |
||
|
15403B
|
15403B
90430-18012 Gasket(For Oil Pump Outlet Pipe)[01.1986 - 08.1988] B..BU60 |
90430-18012 |
US $3.05 |
||
|
15403B
|
15403B
90430-20018 Gasket(For Oil Pump Outlet Pipe)[08.1988 - 05.1995] B..BU60 |
90430-20018 |
from US $1.16 |
||
|
9017908088
|
9017908088
90179-08088
NUT
|
90179-08088 |
— | ||
| replacement | |||||
|
9017908088
|
9017908088
94185-60800 NUT |
94185-60800 |
from US $0.80 |
||
|
9166160816
|
9166160816
91661-60816 Bolt |
91661-60816 |
US $2.33 |
||
|
9212260832
|
9212260832
92122-60832 Bolt, Stud(For Oil Strainer) |
92122-60832 |
from US $1.61 |
||
|
9322016012
|
9322016012
93220-16012 SCREW |
93220-16012 |
US $1.40 |
||
