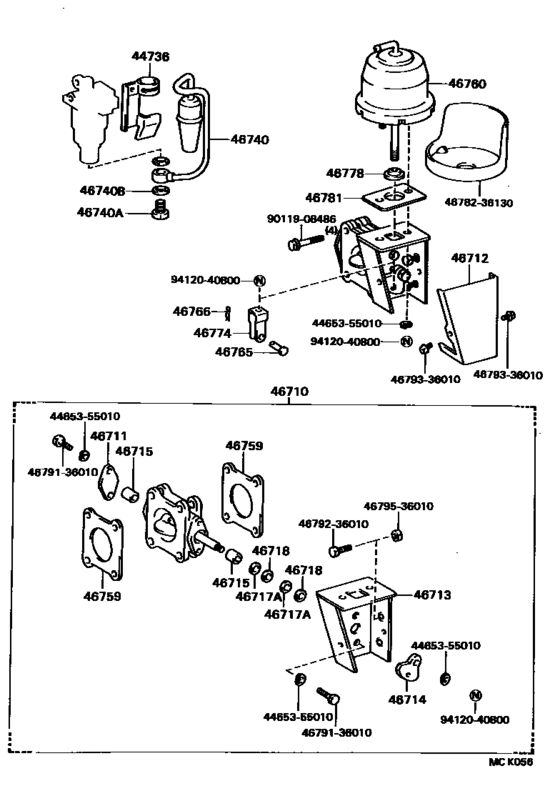

Exhaust Brake Assembly & Vacuum Cylinder ([01.1986 - ] (8601- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44736
|
44736
44736-36011 Bracket, Air Cleaner[01.1986 - 08.1991] BU60 |
44736-36011 |
US $14.27 |
||
| replacement | |||||
|
44736
|
44736
44736-37030 Bracket, Air Cleaner[01.1986 - 08.1991] BU60 |
44736-37030 |
US $5.68 |
||
|
44736
|
44736
44736-36070 Bracket, Air Cleaner[08.1991 - 05.1995] BU60 |
44736-36070 |
US $14.12 |
||
| replacement | |||||
|
44736
|
44736
44736-37030 Bracket, Air Cleaner[08.1991 - 05.1995] BU60 |
44736-37030 |
US $5.68 |
||
|
46710
|
46710
46710-36090 Valve Assy, Exhaust Brake[01.1986 - 08.1988] BU60 |
46710-36090 |
US $384.38 |
||
|
46710
|
46710
46710-36170 Valve Assy, Exhaust Brake[08.1988 - 05.1995] BU60 |
46710-36170 |
US $384.38 |
||
| replacements | |||||
|
46710
|
46710
46710-36171 Valve Assy, Exhaust Brake[08.1988 - 05.1995] BU60 |
46710-36171 |
US $446.16 |
||
|
46710
|
46710
46712-36270 Cover, Exhaust Brake Bracket[08.1988 - 05.1995] BU60 |
46712-36270 |
US $13.26 |
||
|
46711
|
46711
46711-36010 Cover, Exhaust Valve[01.1986 - 08.1988] BU60 |
46711-36010 |
US $5.53 |
||
|
46712
|
46712
46712-36060 Cover, Exhaust Valve Link[01.1986 - 05.1995] BU60 |
46712-36060 |
US $9.90 |
||
|
46713
|
46713
46713-36060 Bracket, Exhaust Valve[01.1986 - 05.1995] BU60 |
46713-36060 |
US $55.91 |
||
|
46714
|
46714
46714-36010 Lever, Exhaust Valve[01.1986 - 05.1995] BU60 |
46714-36010 |
US $5.82 |
||
|
46715
|
46715
46715-36010 Bush, Exhaust Valve, No.1[01.1986 - 05.1988] BU60 長さ＝１６．０ |
46715-36010 |
US $11.18 |
||
|
46715
|
46715
46715-36060 Bush, Exhaust Valve, No.1[01.1986 - 05.1988] BU60 長さ＝２０．５ |
46715-36060 |
US $11.07 |
||
|
46717A
|
46717A
46717-36010 Ring, Exhaust Valve Seal, No.1[01.1986 - 05.1995] BU60 |
46717-36010 |
US $2.91 |
||
|
46718
|
46718
46718-36010 Ring, Exhaust Valve Seal, No.2[01.1986 - 05.1995] BU60 |
46718-36010 |
US $2.80 |
||
|
46740
|
46740
46740-36011 Cleaner Assy, Exhaust Retarder[01.1986 - 12.1991] BU60 |
46740-36011 |
US $106.29 |
||
| replacements | |||||
|
46740
|
46740
44736-37030 Bracket, Air Cleaner[01.1986 - 12.1991] BU60 |
44736-37030 |
US $5.68 |
||
|
46740
|
46740
46740-36080 Cleaner Assy, Exhaust Retarder[01.1986 - 12.1991] BU60 |
46740-36080 |
US $103.38 |
||
|
46740
|
46740
46740-36080 Cleaner Assy, Exhaust Retarder[12.1991 - 05.1995] BU60 |
46740-36080 |
US $103.38 |
||
|
46740A
|
46740A
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[01.1986 - 05.1995] BU60 |
90401-12097 |
from US $2.87 |
||
|
46740B
|
46740B
90430-12247 Gasket(For Solenoid To Air Cleaner Assy)[01.1986 - 05.1995] BU60 |
90430-12247 |
US $3.79 |
||
|
46759
|
46759
46759-36010 Gasket, Exhaust Retarder[01.1986 - 08.1988] BU60 |
46759-36010 |
US $18.05 |
||
| replacement | |||||
|
46759
|
46759
46759-36030 Gasket, Exhaust Pipe[01.1986 - 08.1988] BU60 |
46759-36030 |
from US $4.98 |
||
|
46759
|
46759
46759-36040 Gasket, Exhaust Retarder[08.1988 - 05.1995] BU60 |
46759-36040 |
from US $7.66 |
||
|
46760
|
46760
46760-36091 Cylinder Assy, Exhaust Retarder Vacuum[01.1986 - 05.1988] BU60 |
46760-36091 |
US $199.47 |
||
|
46760
|
46760
46760-36092 Cylinder Assy, Exhaust Retarder Vacuum[05.1988 - 10.1989] BU60 |
46760-36092 |
US $199.47 |
||
| replacement | |||||
|
46760
|
46760
46760-36093 Cylinder Assy, Exhaust Retarder Vacuum[05.1988 - 10.1989] BU60 |
46760-36093 |
US $163.20 |
||
|
46760
|
46760
46760-36093 Cylinder Assy, Exhaust Retarder Vacuum[10.1989 - 05.1995] BU60 |
46760-36093 |
US $163.20 |
||
|
46765
|
46765
46765-36010 Pin, Vacuum Cylinder Clevis[01.1986 - 05.1995] BU60 |
46765-36010 |
US $5.02 |
||
|
46766
|
46766
46766-36010 Pin, Vacuum Cylinder Clevis Snap[01.1986 - 05.1995] BU60 |
46766-36010 |
US $3.94 |
||
|
46774
|
46774
46744-25010 Clevis, Exhaust Brake Rod Clevis[01.1986 - 05.1995] BU60 |
46744-25010 |
US $10.18 |
||
|
46778
|
46778
46778-36060 Bearing, Vacuum Cylinder[01.1986 - 05.1988] BU60 |
46778-36060 |
from US $3.94 |
||
|
46781
|
46781
46781-36060
Insulator, Exhaust Brake Chamber, No.1
[01.1986 - 05.1995] BU60 |
46781-36060 |
— | ||
| replacement | |||||
|
46781
|
46781
46781-28010 Insulator, Exhaust Brake Chamber, No.1[01.1986 - 05.1995] BU60 |
46781-28010 |
US $6.81 |
||
|
4465355010
|
4465355010
44653-55010 Washer, Exhaust Valve Cover |
44653-55010 |
US $3.58 |
||
|
4678236130
|
4678236130
46782-36130 Insulator, Exhaust Brake Chamber, No.2 |
46782-36130 |
US $22.01 |
||
|
4679136010
|
4679136010
46791-36010 Bolt, Exhaust Valve Cover |
46791-36010 |
US $1.86 |
||
|
4679236010
|
4679236010
46792-36010 Bolt, Exhaust Valve Stopper |
46792-36010 |
US $1.46 |
||
|
4679336010
|
4679336010
46793-36010 Bolt, Exhaust Valve Link Cover |
46793-36010 |
US $1.79 |
||
|
4679536010
|
4679536010
46795-36010 Nut, Exhaust Valve Bracket |
46795-36010 |
US $1.46 |
||
|
9011908486
|
9011908486
90119-08486 BOLT WWASHER |
90119-08486 |
US $1.97 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.61 |
||
