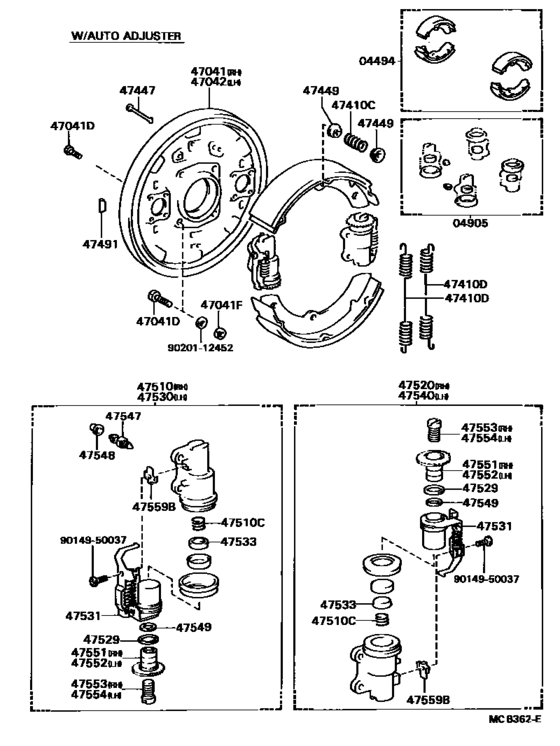

Front Drum Brake Wheel Cylinder & Backing Plate ([01.1986 - 03.1993] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (8601-9303)) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04494
|
04494
04494-36090 Shoe Kit, Front Brake[01.1986 - 11.1989] BU60 |
04494-36090 |
US $221.31 |
||
| replacement | |||||
|
04494
|
04494
04494-36150 Shoe Kit, Brake[01.1986 - 11.1989] BU60 |
04494-36150 |
US $244.61 |
||
|
04494
|
04494
04494-36150 Shoe Kit, Brake[08.1990 - 02.1992] BU60 マーク ＡＫ ＬＡ５１４ |
04494-36150 |
US $244.61 |
||
|
04494
|
04494
04495-25050 Shoe Kit, Front Brake[11.1989 - 08.1990] BU60 マーク ＮＢＫ ＬＮ５０３ |
04495-25050 |
US $170.35 |
||
| replacement | |||||
|
04494
|
04494
04495-25130 Shoe Kit, Rear Brake[11.1989 - 08.1990] BU60 マーク ＮＢＫ ＬＮ５０３ |
04495-25130 |
US $159.12 |
||
|
04494
|
04494
04496-36090
Shoe Kit, Front Brake
[01.1986 - 05.1988] BU60 REBUILT |
04496-36090 |
— | ||
|
04905
|
04905
04905-36090 Cup Kit, Front Wheel Cylinder[01.1986 - 05.1988] BU60 W/AUTO ADJUSTER |
04905-36090 |
US $17.62 |
||
|
47041
|
47041
47041-36121 Plate Sub-Assy, Brake Backing, Front Rh[01.1986 - 02.1991] BU60 |
47041-36121 |
US $100.46 |
||
| replacement | |||||
|
47041
|
47041
47041-36170 Plate Sub-Assy, Brake Backing, Front Rh[01.1986 - 02.1991] BU60 |
47041-36170 |
US $100.46 |
||
|
47041
|
47041
47041-36122 Plate Sub-Assy, Brake Backing, Front Rh[02.1991 - 02.1992] BU60 |
47041-36122 |
US $100.46 |
||
|
47041D
|
47041D
90101-12113 Bolt(For Backing Plate To Steering Knuckle Setting)[01.1986 - 02.1992] BU60 |
90101-12113 |
US $2.18 |
||
|
47041F
|
47041F
90201-12452 Nut(For Backing Plate To Steering Knuckle Setting)[01.1986 - 02.1992] BU60 |
90201-12452 |
from US $1.08 |
||
|
47042
|
47042
47042-36121 Plate Sub-Assy, Brake Backing, Front Lh[01.1986 - 02.1991] BU60 |
47042-36121 |
US $100.46 |
||
| replacement | |||||
|
47042
|
47042
47042-36170 Plate Sub-Assy, Brake Backing, Front Lh[01.1986 - 02.1991] BU60 |
47042-36170 |
US $100.46 |
||
|
47042
|
47042
47042-36122 Plate Sub-Assy, Brake Backing, Front Lh[02.1991 - 02.1992] BU60 |
47042-36122 |
US $100.46 |
||
|
47410C
|
47410C
90501-20012 Spring(For Front Brake Shoe Hold Down)[01.1986 - 02.1992] BU60 |
90501-20012 |
from US $2.15 |
||
|
47410D
|
47410D
90507-29004 Spring, Tension(For Front Brake Shoe Return)[05.1988 - 02.1992] BU60 左側 |
90507-29004 |
US $5.39 |
||
|
47410D
|
47410D
90507-29005 Spring, Tension(For Front Brake Shoe Return)[05.1988 - 02.1992] BU60 右側 |
90507-29005 |
US $5.39 |
||
|
47447
|
47447
47447-20010 Pin, Shoe Hold Down Spring(For Front Brake)[01.1986 - 02.1992] BU60 |
47447-20010 |
from US $1.33 |
||
|
47449
|
47449
47449-30020 Cup, Shoe Hold Down Spring(For Front Brake)[01.1986 - 02.1992] BU60 |
47449-30020 |
from US $1.27 |
||
|
47491
|
47491
47491-36010
Plug, Hole(For Front Brake)
[01.1986 - 05.1988] BU60 |
47491-36010 |
— | ||
| replacement | |||||
|
47491
|
47491
47491-36020 Plug, Hole(For Rear Brake)[01.1986 - 05.1988] BU60 |
47491-36020 |
US $3.05 |
||
|
47510
|
47510
47510-36110 Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)[01.1986 - 05.1988] BU60 W/AUTO ADJUSTER |
47510-36110 |
US $85.90 |
||
|
47510C
|
47510C
90501-08122 Spring, Compression(For Front Wheel Brake Cylinder)[01.1986 - 02.1992] BU60 |
90501-08122 |
US $3.06 |
||
|
47520
|
47520
47520-36110 Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower)[01.1986 - 05.1988] BU60 W/AUTO ADJUSTER |
47520-36110 |
US $85.90 |
||
|
47520
|
47520
47520-36170 Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower)[02.1991 - 02.1992] BU60..N |
47520-36170 |
US $81.54 |
||
| replacement | |||||
|
47520
|
47520
47520-36171 Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower)[02.1991 - 02.1992] BU60..N |
47520-36171 |
US $81.54 |
||
|
47529
|
47529
47529-36010 Seal, Front Wheel Brake Cylinder Adjust Dust[01.1986 - 05.1988] BU60 W/AUTO ADJUSTER |
47529-36010 |
US $4.22 |
||
|
47530
|
47530
47530-36110 Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)[01.1986 - 05.1988] BU60 W/AUTO ADJUSTER |
47530-36110 |
US $85.90 |
||
|
47531
|
47531
47501-36011 Piston, Wheel Brake Cylinder(For Front Brake)[01.1986 - 05.1988] BU60 W/AUTO ADJUSTER,RH |
47501-36011 |
US $50.09 |
||
|
47531
|
47531
47502-36011 Piston, Wheel Brake Cylinder(For Front Brake)[01.1986 - 05.1988] BU60 W/AUTO ADJUSTER,LH |
47502-36011 |
US $50.09 |
||
|
47533
|
47533
47533-30011 Seat, Wheel Cylinder Piston Spring(For Front Brake)[05.1988 - 02.1992] BU60..N |
47533-30011 |
US $3.35 |
||
|
47540
|
47540
47540-36110 Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower)[01.1986 - 05.1988] BU60 W/AUTO ADJUSTER |
47540-36110 |
US $85.90 |
||
|
47540
|
47540
47540-36170 Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower)[02.1991 - 02.1992] BU60..N |
47540-36170 |
US $81.54 |
||
| replacement | |||||
|
47540
|
47540
47540-36171 Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower)[02.1991 - 02.1992] BU60..N |
47540-36171 |
US $81.54 |
||
|
47547
|
47547
47547-12010 Plug, Bleeder(For Release Cylinder)[01.1986 - 02.1992] BU60 |
47547-12010 |
from US $2.26 |
||
|
47548
|
47548
31478-30010 Bleeder Plug Cap[01.1986 - 02.1992] BU60 |
31478-30010 |
from US $1.43 |
||
|
47549
|
47549
47549-36010 Seat, Front Brake Automatic Adjust Nut[01.1986 - 05.1988] BU60 W/AUTO ADJUSTER |
47549-36010 |
US $2.04 |
||
|
47551
|
47551
47506-36010 Nut, Rear Wheel Cylinder Adjusting, Rh(For Rear Brake)[01.1986 - 05.1988] BU60 W/AUTO ADJUSTER |
47506-36010 |
US $9.03 |
||
|
47552
|
47552
47507-36010 Nut, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)[01.1986 - 05.1988] BU60 |
47507-36010 |
US $9.03 |
||
|
47553
|
47553
47553-36070 Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)[01.1986 - 05.1988] BU60 W/AUTO ADJUSTER |
47553-36070 |
US $3.03 |
||
|
47554
|
47554
47554-36070 Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)[01.1986 - 05.1988] BU60 W/AUTO ADJUSTER |
47554-36070 |
from US $3.20 |
||
|
47559B
|
47559B
47559-36010 Sping, Front Automatic Adjust Lever Support[01.1986 - 05.1988] BU60 W/AUTO ADJUSTER |
47559-36010 |
from US $3.32 |
||
|
9014950037
|
9014950037
90149-50037 SCREW |
90149-50037 |
US $1.43 |
||
|
9020112452
|
9020112452
90201-12452 Nut(For Backing Plate To Steering Knuckle Setting) |
90201-12452 |
from US $1.08 |
||
