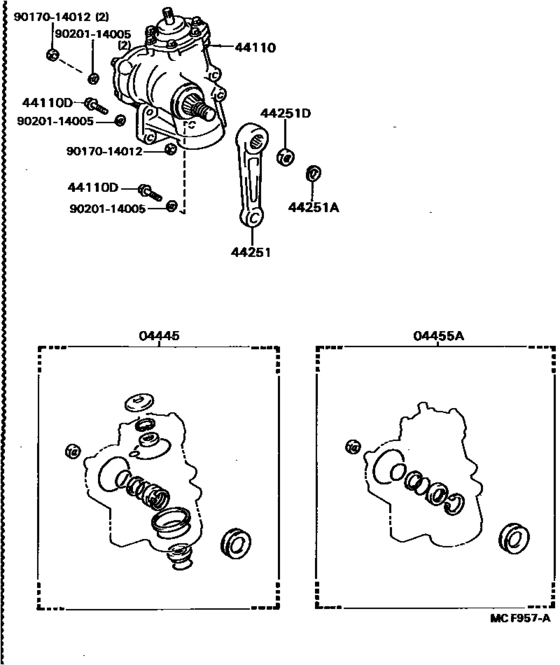

Front Steering Gear & Link ([10.1988 - ] ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) (8810- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04445
|
04445
04445-25010 Gasket Kit, Power Steering Gear(For Recirculating Ball)[01.1986 - 10.1988] BU60 |
04445-25010 |
US $115.02 |
||
|
04445
|
04445
04445-25050 Gasket Kit, Power Steering Gear(For Recirculating Ball)[10.1988 - 10.1990] BU60 |
04445-25050 |
US $115.02 |
||
| replacement | |||||
|
04445
|
04445
04445-36060
Gasket Kit, Power Steering Gear(For Recirculating Ball)
[10.1988 - 10.1990] BU60 |
04445-36060 |
— | ||
|
04445
|
04445
04445-36060
Gasket Kit, Power Steering Gear(For Recirculating Ball)
[10.1990 - 05.1995] BU60 |
04445-36060 |
— | ||
|
04455A
|
04455A
04455-25010 Gasket Kit, Power Steering Cross Shaft Overhole[01.1986 - 10.1988] BU60 |
04455-25010 |
US $36.55 |
||
|
04455A
|
04455A
04455-25030 Gasket Kit, Power Steering Cross Shaft Overhole[10.1988 - 06.1990] BU60 |
04455-25030 |
US $36.40 |
||
| replacement | |||||
|
04455A
|
04455A
04455-36050 Gasket Kit, Power Steering Cross Shaft Overhole[10.1988 - 06.1990] BU60 |
04455-36050 |
US $36.11 |
||
|
04455A
|
04455A
04455-36050 Gasket Kit, Power Steering Cross Shaft Overhole[06.1990 - 05.1995] BU60 |
04455-36050 |
US $36.11 |
||
|
44110
|
44110
44110-36170 Gear Assy, Power Steering[01.1986 - 10.1988] BU60 |
44110-36170 |
US $2,839.20 |
||
| replacements | |||||
|
44110
|
44110
44411-36453 Hose, Pressure Feed[01.1986 - 10.1988] BU60 |
44411-36453 |
US $154.16 |
||
|
44110
|
44110
44110-36172 Gear Assy, Power Steering[01.1986 - 10.1988] BU60 |
44110-36172 |
US $2,839.20 |
||
|
44110
|
44110
44416-36151 Tube, Return(For Steering Gear Outlet)[01.1986 - 10.1988] BU60 |
44416-36151 |
US $80.08 |
||
|
44110
|
44110
44413-36130 Tube, Pressure Feed, No.1[01.1986 - 10.1988] BU60 |
44413-36130 |
US $82.99 |
||
|
44110
|
44110
44110-36171 Gear Assy, Power Steering[10.1988 - 12.1992] BU60 |
44110-36171 |
US $2,839.20 |
||
| replacement | |||||
|
44110
|
44110
44110-36172 Gear Assy, Power Steering[10.1988 - 12.1992] BU60 |
44110-36172 |
US $2,839.20 |
||
|
44110
|
44110
44110-36172 Gear Assy, Power Steering[12.1992 - 05.1995] BU60 |
44110-36172 |
US $2,839.20 |
||
|
44110D
|
44110D
90101-14017 Bolt(For Power Steering Gear)[01.1986 - 05.1988] BU60 L=45 |
90101-14017 |
US $4.66 |
||
|
44110D
|
44110D
90101-14477 Bolt(For Power Steering Gear)[01.1986 - 05.1988] BU60 L=60 |
90101-14477 |
US $6.12 |
||
|
44251
|
44251
45411-36450 Arm, Pitman[03.1989 - 08.1990] BU60; BU60..D EMVﾊﾟﾂｹｰｼﾞ & ｱﾘ(ﾊﾟﾜｰｽﾃｱﾘﾝｸﾞ) |
45411-36450 |
US $116.48 |
||
|
44251
|
44251
45411-36460 Arm, Pitman[01.1986 - 05.1988] BU60 |
45411-36460 |
US $126.67 |
||
|
44251
|
44251
45411-36461 Arm, Pitman[12.1992 - 05.1995] BU60 |
45411-36461 |
US $158.70 |
||
|
44251A
|
44251A
90170-27033 Nut, Castle(For Pitman Arm)[01.1986 - 05.1995] BU60 |
90170-27033 |
US $6.27 |
||
|
44251D
|
44251D
90204-27020 Washer(For Pitman Arm)[01.1986 - 05.1995] BU60 |
90204-27020 |
US $1.97 |
||
|
9017014012
|
9017014012
90170-14012 Nut, Rack End Lock |
90170-14012 |
from US $1.05 |
||
|
9020114005
|
9020114005
90201-14005 Washer, Plate |
90201-14005 |
US $4.30 |
||
