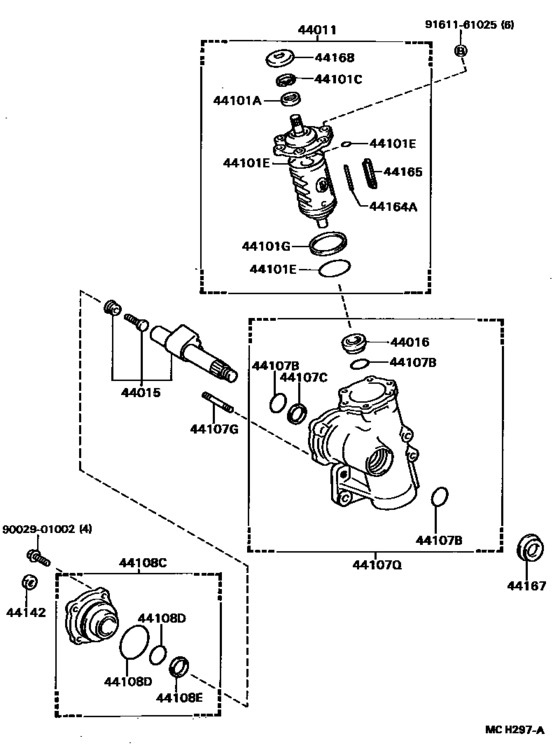

Front Steering Gear & Link ([10.1988 - ] ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) (8810- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44011
|
44011
44011-36130 Piston Sub-Assy, Power[01.1986 - 10.1988] BU60 |
44011-36130 |
US $2,213.12 |
||
|
44011
|
44011
44011-36200 Piston Sub-Assy, Power[10.1988 - 05.1995] BU60 |
44011-36200 |
US $2,198.56 |
||
| replacement | |||||
|
44011
|
44011
44011-37020 Piston Sub-Assy, Power[10.1988 - 05.1995] BU60 |
44011-37020 |
US $2,198.56 |
||
|
44015
|
44015
44015-25010 Shaft Sub-Assy, Sector[01.1986 - 10.1988] BU60 |
44015-25010 |
US $393.12 |
||
|
44015
|
44015
44015-36100 Shaft Sub-Assy, Sector[10.1988 - 12.1992] BU60 |
44015-36100 |
US $390.21 |
||
| replacement | |||||
|
44015
|
44015
44015-36101 Shaft Sub-Assy, Sector[10.1988 - 12.1992] BU60 |
44015-36101 |
US $391.66 |
||
|
44015
|
44015
44015-36101 Shaft Sub-Assy, Sector[12.1992 - 05.1995] BU60 |
44015-36101 |
US $391.66 |
||
|
44016
|
44016
44016-25010 Case Sub-Assy, Worm Bearing[01.1986 - 05.1995] BU60 |
44016-25010 |
US $63.19 |
||
|
44101A
|
44101A
90029-21003 Seal, Type T Oil(For Steering Worm)[01.1986 - 10.1988] BU60 |
90029-21003 |
US $9.17 |
||
|
44101A
|
44101A
90029-21012 Seal, Type T Oil(For Steering Worm)[10.1988 - 05.1995] BU60 |
90029-21012 |
from US $3.14 |
||
|
44101C
|
44101C
96151-03200 Ring, Snap (For Shift Lever)[01.1986 - 05.1995] BU60 |
96151-03200 |
US $2.51 |
||
|
44101E
|
44101E
90029-20006 Ring, O(For Steering Worm)[01.1986 - 05.1995] BU60 ID=79.4 |
90029-20006 |
US $4.72 |
||
|
44101E
|
44101E
90029-20010 Ring, O(For Steering Worm)[10.1985 - 05.1995] BU60 |
90029-20010 |
US $7.43 |
||
|
44101E
|
44101E
90029-20014 Ring, O(For Steering Worm)[01.1986 - 05.1988] BU60 ID=71.4 |
90029-20014 |
US $7.43 |
||
|
44101E
|
44101E
96711-19009 Ring, O(For Oil Level Gage Guide)[01.1986 - 05.1988] BU60 ID=8.8 |
96711-19009 |
from US $1.88 |
||
|
44101G
|
44101G
90029-20702 Seal, Dust(For Steering Worm)[10.1985 - 05.1995] BU60 |
90029-20702 |
US $15.58 |
||
|
44107B
|
44107B
90029-20007 Seal, Dust(For Steering Worm)[01.1986 - 05.1988] BU60 内径＝３９．４,ID=39.4 |
90029-20007 |
US $7.86 |
||
|
44107B
|
44107B
90029-20011 Ring, O(For Power Steering Gear Housing)[01.1986 - 10.1988] BU60 |
90029-20011 |
US $7.28 |
||
|
44107B
|
44107B
90029-20018
Ring, O(For Power Steering Gear Housing)
[10.1988 - 05.1995] BU60 内径＝４０,ID=38 |
90029-20018 |
— | ||
|
44107C
|
44107C
90029-20706 Ring(For Power Steering Gear Housing)[10.1988 - 03.1989] BU60 |
90029-20706 |
US $7.28 |
||
|
44107C
|
44107C
90029-21013 Ring(For Power Steering Gear Housing)[05.1988 - 03.1989] BU60 内径＝５５．０ |
90029-21013 |
US $6.26 |
||
|
44107C
|
44107C
90029-56601 Ring(For Power Steering Gear Housing)[01.1986 - 10.1988] BU60 |
90029-56601 |
US $12.52 |
||
|
44107C
|
44107C
90029-56603
Ring(For Power Steering Gear Housing)
[03.1989 - 05.1995] BU60 内径＝３８ |
90029-56603 |
— | ||
|
44107C
|
44107C
96711-35038 Ring(For Power Steering Gear Housing)[03.1989 - 05.1995] BU60 |
96711-35038 |
US $3.49 |
||
|
44107G
|
44107G
90029-01502 Bolt, Stud(For Power Steering Gear Housing)[05.1988 - 05.1995] BU60 |
90029-01502 |
US $4.95 |
||
|
44107Q
|
44107Q
44107-36170 Housing Sub-Assy, Steering W/name Plate[01.1986 - 10.1988] BU60 |
44107-36170 |
US $1,054.14 |
||
|
44107Q
|
44107Q
44107-36171 Housing Sub-Assy, Steering W/name Plate[10.1988 - 05.1995] BU60 |
44107-36171 |
US $1,052.69 |
||
|
44108C
|
44108C
44108-25010 Cover Sub-Assy, Sector[01.1986 - 10.1988] BU60 |
44108-25010 |
US $355.26 |
||
|
44108C
|
44108C
44108-36110 Cover Sub-Assy, Sector[10.1988 - 05.1995] BU60 |
44108-36110 |
US $353.81 |
||
| replacement | |||||
|
44108C
|
44108C
44108-36100 Cover Sub-Assy, Side[10.1988 - 05.1995] BU60 |
44108-36100 |
US $352.35 |
||
|
44108D
|
44108D
90029-20011 Ring, O(For Power Steering Gear Housing)[01.1986 - 10.1988] BU60 INNER |
90029-20011 |
US $7.28 |
||
|
44108D
|
44108D
90029-20012 Ring, O(For Sector Cover)[01.1986 - 10.1988] BU60 OUTER |
90029-20012 |
US $12.23 |
||
|
44108D
|
44108D
90029-20018
Ring, O(For Power Steering Gear Housing)
[10.1988 - 05.1995] BU60 INNER |
90029-20018 |
— | ||
|
44108D
|
44108D
90029-20019 Ring, O(For Sector Cover)[10.1988 - 05.1995] BU60 OUTER |
90029-20019 |
US $2.77 |
||
|
44108E
|
44108E
90029-20706 Ring(For Power Steering Gear Housing)[10.1988 - 03.1989] BU60 |
90029-20706 |
US $7.28 |
||
|
44108E
|
44108E
90029-56601 Ring(For Power Steering Gear Housing)[01.1986 - 10.1988] BU60 |
90029-56601 |
US $12.52 |
||
|
44108E
|
44108E
90029-56603
Ring(For Power Steering Gear Housing)
[03.1989 - 05.1995] BU60 |
90029-56603 |
— | ||
|
44142
|
44142
44142-37010 Nut, Lock[01.1986 - 05.1995] BU60 |
44142-37010 |
US $5.42 |
||
|
44164A
|
44164A
44164-25010
Ring, Power Piston
[01.1986 - 10.1988] BU60 |
44164-25010 |
— | ||
|
44164A
|
44164A
44164-36050 Ring, Power Piston[10.1988 - 05.1995] BU60 |
44164-36050 |
US $12.52 |
||
|
44165
|
44165
44165-25010 Ring, Seal, No.1[01.1986 - 10.1988] BU60 |
44165-25010 |
US $7.86 |
||
|
44165
|
44165
44165-36050 Ring, Seal, No.1[10.1988 - 05.1995] BU60 |
44165-36050 |
US $20.24 |
||
|
44167
|
44167
44167-25010 Cover, Sector Shaft Dust[01.1986 - 10.1988] BU60 |
44167-25010 |
US $20.24 |
||
|
44167
|
44167
44167-36010 Cover, Sector Shaft Dust[10.1988 - 03.1989] BU60 |
44167-36010 |
US $8.30 |
||
|
44168
|
44168
44168-25010 Cover, Worm Shaft Dust[01.1986 - 05.1995] BU60 |
44168-25010 |
US $10.66 |
||
|
9002901002
|
9002901002
90029-01002 New Genuine Part |
90029-01002 |
US $1.60 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.93 |
||
