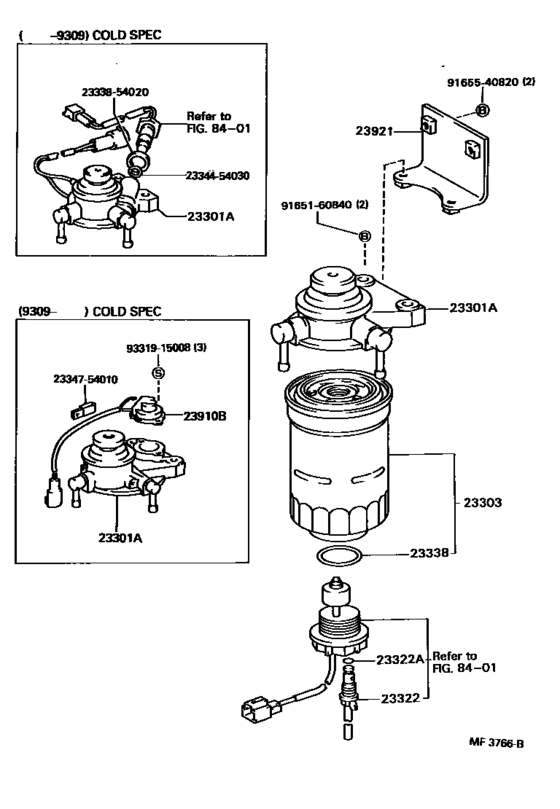

Fuel Filter ([01.1986 - ] (8601- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23301A
|
23301A
23301-56010 Cap Assy, Fuel Filter[01.1986 - 05.1988] B..BU60 W/FUEL HEATER |
23301-56010 |
US $183.46 |
||
|
23301A
|
23301A
23301-56030 Cap Assy, Fuel Filter[01.1986 - 08.1988] B..BU60 |
23301-56030 |
US $252.04 |
||
|
23301A
|
23301A
23301-56190 Cap Assy, Fuel Filter[08.1988 - 09.1993] B..BU60 |
23301-56190 |
US $182 |
||
|
23301A
|
23301A
23301-56200 Cap Assy, Fuel Filter[08.1988 - 09.1993] B..BU60 ｶﾝﾚｲﾁｼﾖｳ |
23301-56200 |
US $182 |
||
|
23301A
|
23301A
23301-56360 Cap Assy, Fuel Filter[09.1993 - 05.1995] B..BU60 |
23301-56360 |
US $182 |
||
|
23301A
|
23301A
23301-56370 Cap Assy, Fuel Filter[09.1993 - 05.1995] B..BU60 ｶﾝﾚｲﾁｼﾖｳ |
23301-56370 |
US $182 |
||
|
23303
|
23303
23303-64010 Element Sub-Assy, Fuel Filter[01.1986 - 05.1995] B..BU60 |
23303-64010 |
from US $51.47 |
||
| replacement | |||||
|
23303
|
23303
23303-64010-00
233036401000
[01.1986 - 05.1995] B..BU60 |
23303-64010-00 |
— | ||
|
23322
|
23322
23322-64010 Drain Plug (For a Level Warning Switch)[01.1986 - 05.1995] B..BU60 |
23322-64010 |
from US $7.18 |
||
|
23322A
|
23322A
23344-54010 O-Ring (For Drain Plug)[01.1986 - 05.1995] B..BU60 |
23344-54010 |
from US $1.54 |
||
|
23338
|
23338
23344-64010 O-Ring (For Level Warning Switch)[01.1986 - 05.1995] B..BU60 |
23344-64010 |
from US $1.54 |
||
|
23910B
|
23910B
23910-17030
Heater Assy, Fuel
[09.1993 - 05.1995] B..BU60 ｶﾝﾚｲﾁ ｼﾖｳ |
23910-17030 |
— | ||
|
23921
|
23921
23921-56020 Support, Fuel Filter[01.1986 - 05.1995] B..BU60 |
23921-56020 |
US $39.60 |
||
|
2333854020
|
2333854020
23338-54020 Gasket(for Warning Switch) |
23338-54020 |
US $2.48 |
||
|
2334454030
|
2334454030
23344-54030
Gasket, Clamping Nut(for Fuel Filter)
|
23344-54030 |
— | ||
|
2334754010
|
2334754010
23347-54010
Clip, Cord
|
23347-54010 |
— | ||
|
9165160840
|
9165160840
91651-60840 BOLT |
91651-60840 |
US $1.61 |
||
|
9165540820
|
9165540820
91655-40820
New Genuine Part
|
91655-40820 |
— | ||
| replacement | |||||
|
9165540820
|
9165540820
91653-40820 BOLT, W/WASHER |
91653-40820 |
US $1.97 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
||
