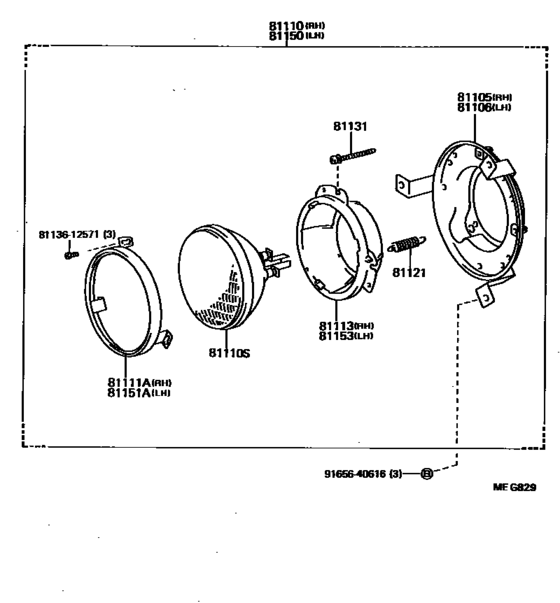

Headlamp ([01.1986 - ] (8601- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81105
|
81105
81105-90D00 Housing Sub-Assy, Headlamp, Rh[01.1986 - 05.1995] BU60 |
81105-90D00 |
US $37.27 |
||
|
81106
|
81106
81106-90D00 Housing Sub-Assy, Headlamp, Lh[01.1986 - 05.1995] BU60 |
81106-90D00 |
US $37.27 |
||
|
81110
|
81110
81110-90F00 Headlamp Assy, Rh[01.1986 - 05.1995] BU60 |
81110-90F00 |
US $94.64 |
||
| replacements | |||||
|
81110
|
81110
81130-25130 New Genuine Part[01.1986 - 05.1995] BU60 |
81130-25130 |
US $39.31 |
||
|
81110
|
81110
90981-06H11 New Genuine Part[01.1986 - 05.1995] BU60 |
90981-06H11 |
US $87.12 |
||
|
81110
|
81110
90981-06H12
New Genuine Part
[01.1986 - 05.1995] BU60 |
90981-06H12 |
— | ||
|
81110S
|
81110S
90981-06014
Sealed Beam Unit, No.1
[01.1986 - 05.1988] BU60 ２４Ｖ ７５／５５Ｗ，＊ＷＢ,24V 75/55W |
90981-06014 |
— | ||
| replacements | |||||
|
81110S
|
81110S
90981-06H11 New Genuine Part[01.1986 - 05.1988] BU60 ２４Ｖ ７５／５５Ｗ，＊ＷＢ,24V 75/55W |
90981-06H11 |
US $87.12 |
||
|
81110S
|
81110S
90981-06H12
New Genuine Part
[01.1986 - 05.1988] BU60 ２４Ｖ ７５／５５Ｗ，＊ＷＢ,24V 75/55W |
90981-06H12 |
— | ||
|
81111A
|
81111A
81111-89117 Ring, Sealed Beam Retaining[01.1986 - 05.1995] BU60 |
81111-89117 |
from US $10.11 |
||
|
81113
|
81113
81113-90A02 Ring, Sealed Beam Mounting, No.1 Rh[01.1986 - 05.1988] BU60 |
81113-90A02 |
US $27.55 |
||
|
81121
|
81121
81121-62010 Spring, Headlamp Tension[01.1986 - 05.1995] BU60 |
81121-62010 |
from US $1.88 |
||
|
81131
|
81131
81131-10031 Screw, Headlamp Adjusting[01.1986 - 05.1995] BU60 |
81131-10031 |
from US $1.62 |
||
|
81150
|
81150
81150-90F00 Headlamp Assy, Lh[01.1986 - 05.1995] BU60 |
81150-90F00 |
US $94.64 |
||
| replacements | |||||
|
81150
|
81150
81170-25110 Unit Assy, Headlamp Daytime Running Light, Lh[01.1986 - 05.1995] BU60 |
81170-25110 |
US $39.31 |
||
|
81150
|
81150
90981-06H11 New Genuine Part[01.1986 - 05.1995] BU60 |
90981-06H11 |
US $87.12 |
||
|
81150
|
81150
90981-06H12
New Genuine Part
[01.1986 - 05.1995] BU60 |
90981-06H12 |
— | ||
|
81151A
|
81151A
81111-89117 Ring, Sealed Beam Retaining[01.1986 - 05.1995] BU60 |
81111-89117 |
from US $10.11 |
||
|
81153
|
81153
81153-90A02 Ring, Sealed Beam Mounting, No.1 Rh[01.1986 - 05.1988] BU60 |
81153-90A02 |
US $27.55 |
||
|
8113612571
|
8113612571
81136-12571 Screw |
81136-12571 |
from US $2.14 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
from US $1.16 |
||
