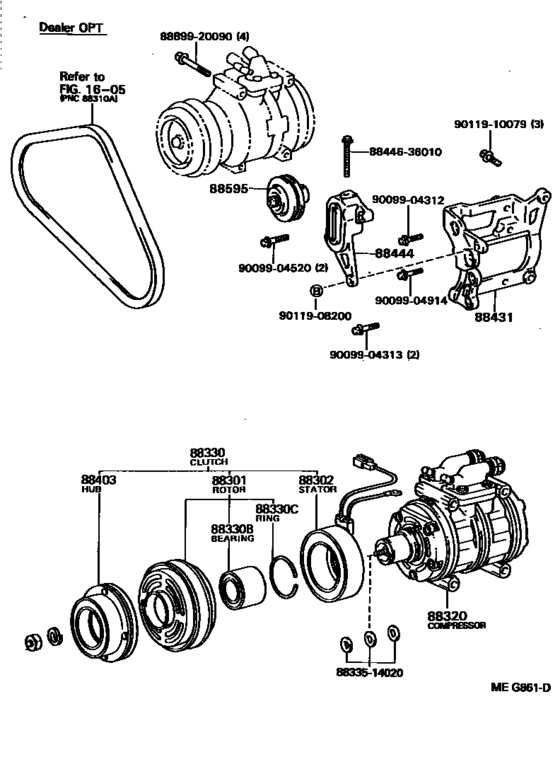

Heating & Air Conditioning - Compressor ([01.1986 - ] (8601- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-22030
Rotor Sub-Assy, Magnet Clutch
[01.1986 - 09.1993] BU60 |
88412-22030 |
— | ||
|
88301
|
88301
88412-26030
Rotor Sub-Assy, Magnet Clutch
[08.1988 - 09.1993] BU60 ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
88412-26030 |
— | ||
|
88302
|
88302
88411-25020
Stator Sub-Assy, Magnet Clutch
[01.1986 - 09.1993] BU60 |
88411-25020 |
— | ||
|
88302
|
88302
88411-36270
Stator Sub-Assy, Magnet Clutch
[08.1988 - 09.1993] BU60 ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
88411-36270 |
— | ||
|
88320
|
88320
88320-36140
Compressor Assy, Cooler
[01.1986 - 05.1988] BU60 |
88320-36140 |
— | ||
|
88320
|
88320
88320-36141
Compressor Assy, Cooler
[05.1988 - 08.1988] BU60 |
88320-36141 |
— | ||
|
88320
|
88320
88320-36280
Compressor Assy, Cooler
[08.1988 - 09.1993] BU60 ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
88320-36280 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-35H91 Compressor Assy, Cooler[08.1988 - 09.1993] BU60 ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
88320-35H91 |
US $1,579.47 |
||
|
88320
|
88320
88320-36380
Compressor Assy, Cooler
[09.1993 - 05.1995] BU60 |
88320-36380 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-35H92 Compressor Assy, Cooler[09.1993 - 05.1995] BU60 |
88320-35H92 |
US $1,359.32 |
||
|
88330
|
88330
88410-36210 Clutch Assy, Magnet[08.1988 - 09.1993] BU60 ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
88410-36210 |
US $503.78 |
||
| replacement | |||||
|
88330
|
88330
88410-36260 Clutch Assy, Magnet[08.1988 - 09.1993] BU60 ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
88410-36260 |
US $496.50 |
||
|
88330
|
88330
88410-36370 Clutch Assy, Magnet[09.1993 - 05.1995] BU60 |
88410-36370 |
US $495.04 |
||
|
88330
|
88330
88410-60070
Clutch Assy, Magnet
[01.1986 - 08.1988] BU60 |
88410-60070 |
— | ||
|
88330B
|
88330B
90099-10133
Bearing, Ball(For Clutch Pully)
[01.1986 - 05.1988] BU60 |
90099-10133 |
— | ||
|
88330B
|
88330B
90099-10162
Bearing (For Magnet Clutch)
[05.1988 - 08.1988] BU60 |
90099-10162 |
— | ||
| replacement | |||||
|
88330B
|
88330B
90099-10133
Bearing, Ball(For Clutch Pully)
[05.1988 - 08.1988] BU60 |
90099-10133 |
— | ||
|
88330C
|
88330C
90099-07094
Ring, Snap (For Magnet Clutch)
[05.1988 - 09.1993] BU60 ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
90099-07094 |
— | ||
|
88330C
|
88330C
90099-07114 Ring, Snap (For Magnet Clutch)[01.1986 - 05.1988] BU60 |
90099-07114 |
from US $1.03 |
||
|
88403
|
88403
88403-12030
Hub Sub-Assy, Magnet Clutch
[01.1986 - 08.1988] BU60 |
88403-12030 |
— | ||
|
88403
|
88403
88403-16011 Hub Sub-Assy, Magnet Clutch[08.1988 - 09.1993] BU60 ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
88403-16011 |
US $82.47 |
||
|
88403
|
88403
88403-30300
Hub Sub-Assy, Magnet Clutch
[09.1993 - 05.1995] BU60 |
88403-30300 |
— | ||
| replacement | |||||
|
88403
|
88403
88403-30290 Hub Sub-Assy, Magnet Clutch[09.1993 - 05.1995] BU60 |
88403-30290 |
from US $86.66 |
||
|
88431
|
88431
88431-36190
Bracket, Compressor Mounting, No.1
[01.1986 - 08.1988] BU60 |
88431-36190 |
— | ||
|
88431
|
88431
88431-36240
Bracket, Compressor Mounting, No.1
[10.1987 - 08.1988] BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ,ＮＯ．１ |
88431-36240 |
— | ||
|
88431
|
88431
88431-36250
Bracket, Compressor Mounting, No.1
[10.1987 - 08.1988] BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ,ＮＯ．２ |
88431-36250 |
— | ||
|
88431
|
88431
88431-36260
Bracket, Compressor Mounting, No.1
[10.1987 - 08.1988] BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ,ＮＯ．３ |
88431-36260 |
— | ||
|
88431
|
88431
88431-36270
Bracket, Compressor Mounting, No.1
[10.1987 - 08.1988] BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ,ＮＯ．４ |
88431-36270 |
— | ||
|
88431
|
88431
88431-36400
Bracket, Compressor Mounting, No.1
[08.1988 - 10.1989] BU60 |
88431-36400 |
— | ||
|
88431
|
88431
88431-36401
Bracket, Compressor Mounting, No.1
[10.1989 - 12.1989] BU60 ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
88431-36401 |
— | ||
| replacement | |||||
|
88431
|
88431
88431-36402
Bracket, Compressor Mounting, No.1
[10.1989 - 12.1989] BU60 ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
88431-36402 |
— | ||
|
88431
|
88431
88431-36402
Bracket, Compressor Mounting, No.1
[10.1989 - 12.1989] BU60 ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
88431-36402 |
— | ||
|
88431
|
88431
88431-36460
Bracket, Compressor Mounting, No.1
[08.1988 - 09.1993] BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ,NO.1 |
88431-36460 |
— | ||
|
88431
|
88431
88431-36470
Bracket, Compressor Mounting, No.1
[08.1988 - 09.1993] BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ,ＮＯ．２ |
88431-36470 |
— | ||
|
88444
|
88444
88444-36110
Bracket, Idle Pulley
[01.1986 - 10.1989] BU60 |
88444-36110 |
— | ||
|
88444
|
88444
88444-36121
Bracket, Idle Pulley
[10.1987 - 09.1993] BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
88444-36121 |
— | ||
|
88444
|
88444
88444-36160
Bracket, Idle Pulley
[10.1989 - 05.1995] BU60 |
88444-36160 |
— | ||
|
88595
|
88595
88440-12160 Pulley Assy, Power Steering Idle[01.1986 - 05.1995] BU60 |
88440-12160 |
US $88.56 |
||
|
8833514020
|
8833514020
88335-14020 Washer |
88335-14020 |
from US $1.24 |
||
|
8844636010
|
8844636010
88446-36010
Bolt, Idle Pulley
|
88446-36010 |
— | ||
|
8889920090
|
8889920090
88899-20090
Cover, Evaporator
|
88899-20090 |
— | ||
|
9009904312
|
9009904312
90099-04312
New Genuine Part
|
90099-04312 |
— | ||
|
9009904313
|
9009904313
90099-04313 BOLT |
90099-04313 |
US $1.98 |
||
|
9009904520
|
9009904520
90099-04520
New Genuine Part
|
90099-04520 |
— | ||
|
9009904914
|
9009904914
90099-04914
New Genuine Part
|
90099-04914 |
— | ||
|
9011908200
|
9011908200
90119-08200 BOLT |
90119-08200 |
from US $2.51 |
||
| replacement | |||||
|
9011908200
|
9011908200
90105-08112 New Genuine Part |
90105-08112 |
US $4.01 |
||
|
9011910079
|
9011910079
90119-10079 Bolt(For Front Suspension Lower Arm No.1 Rh) |
90119-10079 |
US $4.30 |
||
