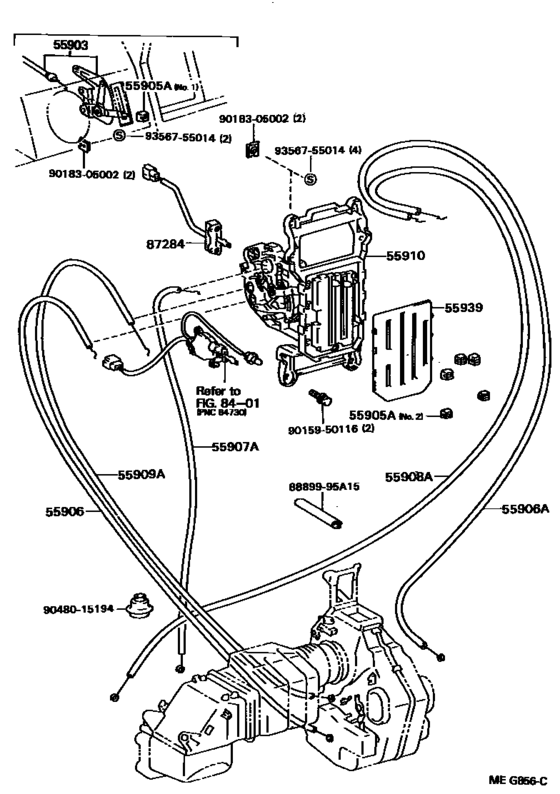

Heating & Air Conditioning - Control & Air Duct ([01.1986 - ] (8601- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55903
|
55903
55805-95403 Lever Sub-Assy, Heater Control[01.1986 - 05.1995] BU60 |
55805-95403 |
US $13.10 |
||
|
55905A
|
55905A
55905-12050-01
Knob, Instrument Panel Register Control
[01.1986 - 05.1988] BU60 NO.1,BLACK |
55905-12050-01 |
— | ||
| replacement | |||||
|
55905A
|
55905A
55905-20230-C0
Knob, Instrument Panel Register Control
[01.1986 - 05.1988] BU60 NO.1,BLACK |
55905-20230-C0 |
— | ||
|
55905A
|
55905A
55905-12070 Knob, Heater Control[05.1988 - 05.1995] BU60 NO.2 |
55905-12070 |
US $5.56 |
||
|
55906
|
55906
55905-37020 Cable Sub-Assy, Heater Control[11.1991 - 05.1995] BU60 |
55905-37020 |
US $15.14 |
||
|
55906
|
55906
55905-90F00 Cable Sub-Assy, Heater Control[01.1986 - 11.1991] BU60 |
55905-90F00 |
US $12.23 |
||
|
55906A
|
55906A
55906-37010 Cable Sub-Assy, Defroster Damper Control[11.1991 - 05.1995] BU60 |
55906-37010 |
US $12.67 |
||
|
55906A
|
55906A
55906-90F00 Cable Sub-Assy, Defroster Damper Control[01.1986 - 11.1991] BU60 |
55906-90F00 |
US $10.77 |
||
|
55907A
|
55907A
55907-37010 Cable Sub-Assy, Water Valve Control[11.1991 - 05.1995] BU60 |
55907-37010 |
US $17.76 |
||
|
55907A
|
55907A
55907-90F00 Cable Sub-Assy, Water Valve Control[01.1986 - 11.1991] BU60 |
55907-90F00 |
US $13.54 |
||
|
55908A
|
55908A
55908-90F00 Cable Sub-Assy, Air Inlet Damper Control[01.1986 - 05.1995] BU60 |
55908-90F00 |
US $12.52 |
||
|
55909A
|
55909A
55909-90F00 Cable Sub-Assy, Airmix Damper Control[01.1986 - 05.1995] BU60 |
55909-90F00 |
US $11.07 |
||
|
55910
|
55910
55910-36070 Control Assy, Heater Or Boost Ventilator[11.1991 - 05.1995] BU60 |
55910-36070 |
US $99.01 |
||
|
55910
|
55910
55910-95407 Control Assy, Heater Or Boost Ventilator[01.1986 - 11.1991] BU60 |
55910-95407 |
US $99.01 |
||
| replacements | |||||
|
55910
|
55910
55905-26010 Cable Sub-Assy, Heater Control[01.1986 - 11.1991] BU60 |
55905-26010 |
US $7.43 |
||
|
55910
|
55910
55905-36010 Cable Sub-Assy, Heater Control[01.1986 - 11.1991] BU60 |
55905-36010 |
US $8.30 |
||
|
55910
|
55910
55905-36020 Cable Sub-Assy, Heater Control[01.1986 - 11.1991] BU60 |
55905-36020 |
US $8.30 |
||
|
55910
|
55910
55905-37020 Cable Sub-Assy, Heater Control[01.1986 - 11.1991] BU60 |
55905-37020 |
US $15.14 |
||
|
55910
|
55910
55906-26020 Cable Sub-Assy, Defroster Damper Control[01.1986 - 11.1991] BU60 |
55906-26020 |
US $12.67 |
||
|
55910
|
55910
55906-36030 Cable Sub-Assy, Defroster Damper Control[01.1986 - 11.1991] BU60 |
55906-36030 |
US $7.78 |
||
|
55910
|
55910
55906-36040 Cable Sub-Assy, Defroster Damper Control[01.1986 - 11.1991] BU60 |
55906-36040 |
US $8.30 |
||
|
55910
|
55910
55906-37010 Cable Sub-Assy, Defroster Damper Control[01.1986 - 11.1991] BU60 |
55906-37010 |
US $12.67 |
||
|
55910
|
55910
55907-26020 Cable Sub-Assy, Water Valve Control[01.1986 - 11.1991] BU60 |
55907-26020 |
US $15.14 |
||
|
55910
|
55910
55907-36010 Cable Sub-Assy, Water Valve Control[01.1986 - 11.1991] BU60 |
55907-36010 |
US $13.40 |
||
|
55910
|
55910
55907-36020 Cable Sub-Assy, Water Valve Control[01.1986 - 11.1991] BU60 |
55907-36020 |
US $14.71 |
||
|
55910
|
55910
55907-37010 Cable Sub-Assy, Water Valve Control[01.1986 - 11.1991] BU60 |
55907-37010 |
US $17.76 |
||
|
55910
|
55910
55910-36070 Control Assy, Heater Or Boost Ventilator[01.1986 - 11.1991] BU60 |
55910-36070 |
US $99.01 |
||
|
55939
|
55939
55519-95401 Ornament, Heater Control[01.1986 - 08.1987] BU60 |
55519-95401 |
US $15.87 |
||
| replacement | |||||
|
55939
|
55939
55519-95405 Plate, Heater Control Name[01.1986 - 08.1987] BU60 |
55519-95405 |
US $33.63 |
||
|
55939
|
55939
55519-95405 Plate, Heater Control Name[08.1987 - 05.1995] BU60 |
55519-95405 |
US $33.63 |
||
|
87284
|
87284
88032-95400
Resistor Sub-Assy, Variable
[01.1986 - 05.1995] BU60 |
88032-95400 |
— | ||
|
8889995A15
|
8889995A15
88899-95A15
Cover, Evaporator
|
88899-95A15 |
— | ||
|
9015950116
|
9015950116
90159-50116 SCREW |
90159-50116 |
US $2.33 |
||
|
9018305002
|
9018305002
90183-05002
New Genuine Part
|
90183-05002 |
— | ||
| replacement | |||||
|
9018305002
|
9018305002
90183-05001
New Genuine Part
|
90183-05001 |
— | ||
|
9048015194
|
9048015194
90480-15194 Grommet(For Hood Lock Control Cable) |
90480-15194 |
US $3.58 |
||
|
9356755014
|
9356755014
93567-55014
Direct
|
93567-55014 |
— | ||
| replacement | |||||
|
9356755014
|
9356755014
93568-55014 Screw |
93568-55014 |
from US $0.48 |
||
