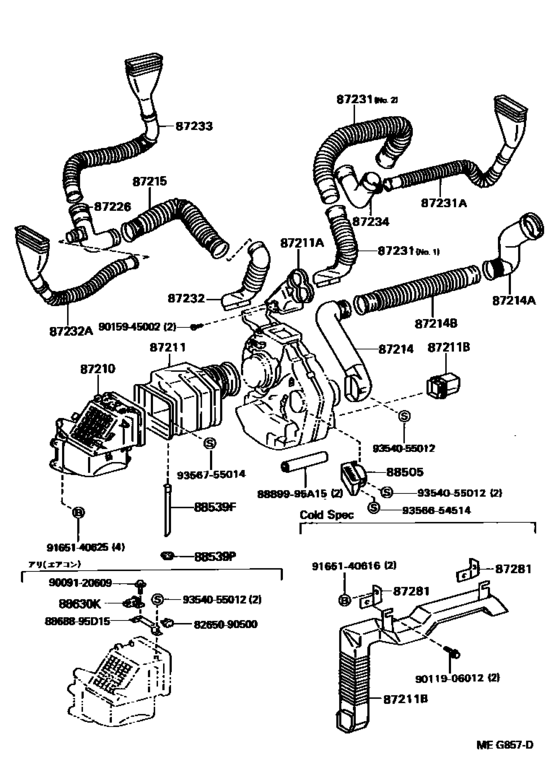

Heating & Air Conditioning - Control & Air Duct ([01.1986 - ] (8601- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87210
|
87210
87210-95402
Damper Assy, Air
[01.1986 - 05.1995] BU60 |
87210-95402 |
— | ||
|
87211
|
87211
87211-95404
Duct, Air, No.1
[01.1986 - 05.1995] BU60 |
87211-95404 |
— | ||
|
87211A
|
87211A
87211-90F00
Duct, Air, No.2
[01.1986 - 05.1995] BU60 |
87211-90F00 |
— | ||
|
87211B
|
87211B
87211-90D06
Duct, Air, No.3
[01.1986 - 05.1995] BU60 |
87211-90D06 |
— | ||
|
87211B
|
87211B
87211-90F01
Duct, Air, No.3
[01.1986 - 05.1988] BU60 COLD SPEC |
87211-90F01 |
— | ||
|
87214
|
87214
87211-90D03
Duct, Air, Side No.1 Rh
[01.1986 - 05.1995] BU60 |
87211-90D03 |
— | ||
|
87214A
|
87214A
87211-90D04
Duct, Air, Side No.2 Rh
[01.1986 - 05.1995] BU60 |
87211-90D04 |
— | ||
|
87214B
|
87214B
87233-90D02
Duct, Air, Side No.3 Rh
[01.1986 - 05.1995] BU60 |
87233-90D02 |
— | ||
|
87215
|
87215
87233-90D02
Duct, Air, Side No.3 Rh
[01.1986 - 05.1995] BU60 |
87233-90D02 |
— | ||
|
87226
|
87226
87234-90D00
Adapter, Air Duct
[01.1986 - 05.1995] BU60 |
87234-90D00 |
— | ||
|
87231
|
87231
87231-95405
Hose, Heater Defroster, Rh
[01.1986 - 05.1988] BU60 NO.1 |
87231-95405 |
— | ||
|
87231
|
87231
87233-90D02
Duct, Air, Side No.3 Rh
[01.1986 - 05.1988] BU60 NO.2 |
87233-90D02 |
— | ||
|
87231A
|
87231A
87232-90D01
Duct, Heater Defroster, Side No.1 Rh
[01.1986 - 05.1995] BU60 |
87232-90D01 |
— | ||
|
87232
|
87232
87231-90D01
Hose, Heater Defroster, Lh
[01.1986 - 05.1995] BU60 |
87231-90D01 |
— | ||
|
87232A
|
87232A
87232-90F01
Duct, Heater Defroster, Side No.1 Lh
[01.1986 - 05.1995] BU60 |
87232-90F01 |
— | ||
|
87233
|
87233
87232-90D01
Duct, Heater Defroster, Side No.1 Rh
[01.1986 - 05.1995] BU60 |
87232-90D01 |
— | ||
|
87234
|
87234
87234-90F00
Adapter, Defroster Hose
[01.1986 - 05.1995] BU60 |
87234-90F00 |
— | ||
|
87281
|
87281
87121-90F02
Bracket, Air Duct
[01.1986 - 05.1995] BU60 |
87121-90F02 |
— | ||
|
88505
|
88505
88505-90D03
Duct Sub-Assy,air Conditioner
[03.1987 - 05.1995] BU60 |
88505-90D03 |
— | ||
|
88539F
|
88539F
88539-90D03
Hose, Drain
[01.1986 - 05.1995] BU60 |
88539-90D03 |
— | ||
|
88539P
|
88539P
90480-26004 Grommet, Heater Hose[01.1986 - 05.1995] BU60 |
90480-26004 |
US $1.12 |
||
|
88630K
|
88630K
88630-95400
Relay Assy, Cooler
[05.1988 - 05.1995] BU60 |
88630-95400 |
— | ||
|
8868895D15
|
8868895D15
88688-95D15
Bracket, Cooler Diaphragm
|
88688-95D15 |
— | ||
|
8889995A15
|
8889995A15
88899-95A15
Cover, Evaporator
|
88899-95A15 |
— | ||
|
8265090500
|
8265090500
82650-90500 Breaker Assy, Wiring Circuit, No.1 |
82650-90500 |
US $40.91 |
||
|
9009120609
|
9009120609
90091-20609 BOLT |
90091-20609 |
US $0.41 |
||
|
9011906012
|
9011906012
90119-06012 New Genuine Part |
90119-06012 |
US $2.18 |
||
|
9015945002
|
9015945002
90159-45002
New Genuine Part
|
90159-45002 |
— | ||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.25 |
||
|
9354055012
|
9354055012
93540-55012 SCREW, TAPPING |
93540-55012 |
US $1.08 |
||
|
9356654514
|
9356654514
93566-54514
New Genuine Part
|
93566-54514 |
— | ||
| replacement | |||||
|
9356654514
|
9356654514
93568-54514 New Genuine Part |
93568-54514 |
US $1.97 |
||
|
9356755014
|
9356755014
93567-55014
Direct
|
93567-55014 |
— | ||
| replacement | |||||
|
9356755014
|
9356755014
93568-55014 Screw |
93568-55014 |
from US $0.48 |
||
