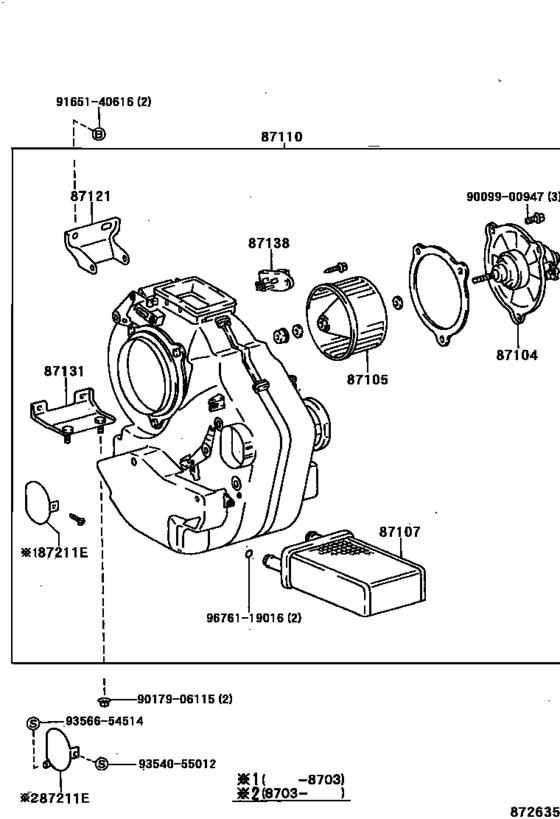

Heating & Air Conditioning - Heater Unit & Blower ([01.1986 - ] (8601- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87104
|
87104
87104-37040 Motor Sub-Assy, Heater Blower[12.1991 - 05.1995] BU60 |
87104-37040 |
US $292.66 |
||
|
87104
|
87104
87104-90F00 Motor Sub-Assy, Heater Blower[01.1986 - 12.1991] BU60 |
87104-90F00 |
US $292.66 |
||
| replacement | |||||
|
87104
|
87104
87104-37040 Motor Sub-Assy, Heater Blower[01.1986 - 12.1991] BU60 |
87104-37040 |
US $292.66 |
||
|
87105
|
87105
87105-16020
Fan Sub-Assy, Heater Blower
[01.1986 - 11.1989] BU60 |
87105-16020 |
— | ||
|
87105
|
87105
87105-90F00
Fan Sub-Assy, Heater Blower
[11.1989 - 05.1995] BU60 |
87105-90F00 |
— | ||
|
87107
|
87107
87107-90D00
Unit Sub-Assy, Heater Radiator
[01.1986 - 03.1986] BU60 |
87107-90D00 |
— | ||
|
87107
|
87107
87107-90D01
Unit Sub-Assy, Heater Radiator
[01.1986 - 03.1986] BU60 COLD SPEC |
87107-90D01 |
— | ||
|
87107
|
87107
87107-90D02
Unit Sub-Assy, Heater Radiator
[03.1986 - 05.1986] BU60 COLD SPEC |
87107-90D02 |
— | ||
|
87107
|
87107
87107-90D03
Unit Sub-Assy, Heater Radiator
[05.1986 - 05.1988] BU60 COLD SPEC |
87107-90D03 |
— | ||
|
87110
|
87110
87110-90F00
Heater Assy
[01.1986 - 03.1987] BU60 |
87110-90F00 |
— | ||
| replacement | |||||
|
87110
|
87110
87110-90F02
Heater Assy
[01.1986 - 03.1987] BU60 |
87110-90F02 |
— | ||
|
87110
|
87110
87110-90F01
Heater Assy
[01.1986 - 05.1986] BU60 COLD SPEC |
87110-90F01 |
— | ||
| replacement | |||||
|
87110
|
87110
87110-90F02
Heater Assy
[01.1986 - 05.1986] BU60 COLD SPEC |
87110-90F02 |
— | ||
|
87110
|
87110
87110-90F02
Heater Assy
[05.1986 - 03.1987] BU60 |
87110-90F02 |
— | ||
|
87110
|
87110
87110-90F03
Heater Assy
[03.1987 - 05.1995] BU60 |
87110-90F03 |
— | ||
| replacement | |||||
|
87110
|
87110
87110-90F04
Heater Assy
[03.1987 - 05.1995] BU60 |
87110-90F04 |
— | ||
|
87110
|
87110
87110-90F04
Heater Assy
[03.1987 - 05.1988] BU60 |
87110-90F04 |
— | ||
|
87121
|
87121
87121-90F00
Bracket, Heater, Front Rh
[01.1986 - 05.1995] BU60 |
87121-90F00 |
— | ||
|
87131
|
87131
87121-90F01
Bracket, Heater, Front Lh
[01.1986 - 05.1995] BU60 |
87121-90F01 |
— | ||
|
87138
|
87138
87138-95402
Resistor, Heater Blower
[01.1986 - 01.1992] BU60 |
87138-95402 |
— | ||
| replacement | |||||
|
87138
|
87138
87138-37100
Resistor, Heater Blower
[01.1986 - 01.1992] BU60 |
87138-37100 |
— | ||
|
87138
|
87138
87138-95413
Resistor, Heater Blower
[01.1992 - 05.1995] BU60 |
87138-95413 |
— | ||
|
87211E
|
87211E
87211-90D05
Cover, Heater Air Duct Hole
[01.1986 - 05.1995] BU60 |
87211-90D05 |
— | ||
|
9009900947
|
9009900947
90099-00947
New Genuine Part
|
90099-00947 |
— | ||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9354055012
|
9354055012
93540-55012 SCREW, TAPPING |
93540-55012 |
US $1.08 |
||
|
9356654514
|
9356654514
93566-54514
New Genuine Part
|
93566-54514 |
— | ||
| replacement | |||||
|
9356654514
|
9356654514
93568-54514 New Genuine Part |
93568-54514 |
US $1.97 |
||
|
9676119016
|
9676119016
96761-19016 RING |
96761-19016 |
from US $0.76 |
||
