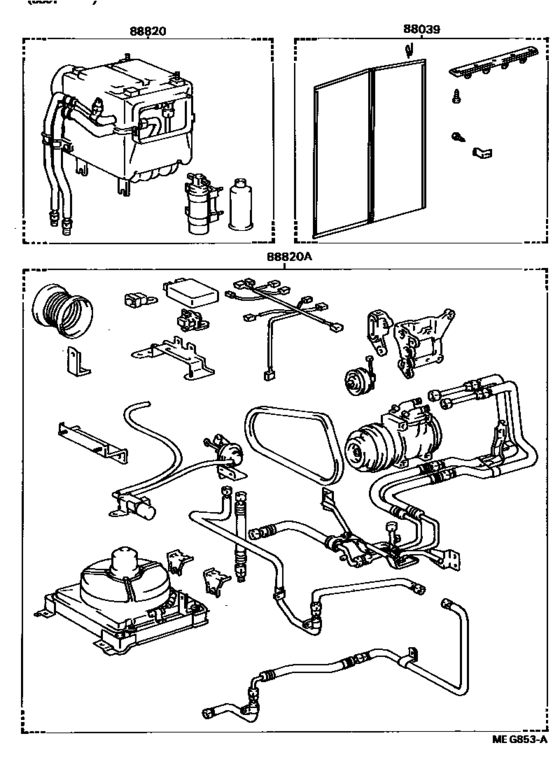

Heating & Air Conditioning - Set ([01.1986 - ] (8601- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88039
|
88039
88039-90F00
Additional Kit,airconditioner
[03.1986 - 05.1988] BU60 |
88039-90F00 |
— | ||
|
88820
|
88820
88820-37010
Air Conditioner & Accesory Sub-Assy, No.1
[09.1993 - 05.1995] BU60 |
88820-37010 |
— | ||
|
88820
|
88820
88820-90F01
Air Conditioner & Accesory Sub-Assy, No.1
[01.1986 - 03.1987] BU60 |
88820-90F01 |
— | ||
|
88820
|
88820
88820-90F03
Air Conditioner & Accesory Sub-Assy, No.1
[03.1987 - 08.1988] BU60 |
88820-90F03 |
— | ||
|
88820
|
88820
88820-90F06
Air Conditioner & Accesory Sub-Assy, No.1
[08.1988 - 09.1993] BU60 |
88820-90F06 |
— | ||
|
88820A
|
88820A
88830-37010
Air Conditioner & Accesory Sub-Assy, No.2
[09.1993 - 05.1995] BU60 |
88830-37010 |
— | ||
|
88820A
|
88820A
88830-90F00
Air Conditioner & Accesory Sub-Assy, No.2
[01.1986 - 03.1987] BU60 |
88830-90F00 |
— | ||
|
88820A
|
88820A
88830-90F01
Air Conditioner & Accesory Sub-Assy, No.2
[03.1987 - 08.1988] BU60 |
88830-90F01 |
— | ||
|
88820A
|
88820A
88830-90F02
Air Conditioner & Accesory Sub-Assy, No.2
[08.1988 - 10.1989] BU60 |
88830-90F02 |
— | ||
|
88820A
|
88820A
88830-90F03
Air Conditioner & Accesory Sub-Assy, No.2
[10.1989 - 09.1993] BU60 |
88830-90F03 |
— |
