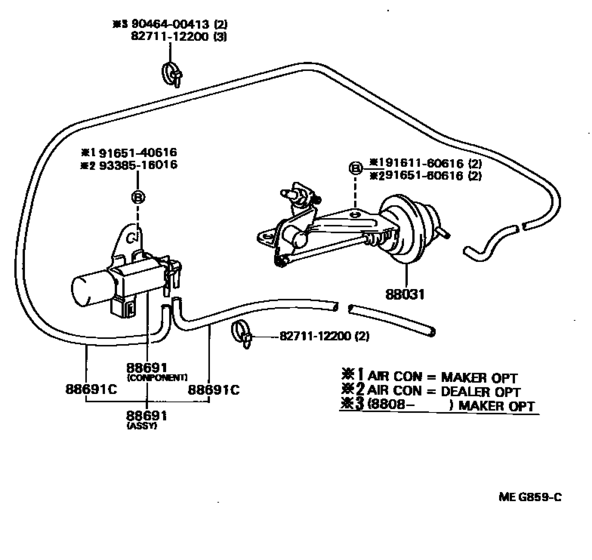

Heating & Air Conditioning - Vacuum Piping ([01.1986 - ] (8601- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88031
|
88031
88031-30060 Actuator Set, Idle-Up[01.1986 - 05.1988] BU60 MAKER OPTION |
88031-30060 |
from US $37.39 |
||
|
88031
|
88031
88031-35040
Actuator Set, Idle-Up
[01.1986 - 05.1988] BU60 DEALER OPTION |
88031-35040 |
— | ||
|
88691
|
88691
88690-90F00
Valve, Magnet (For Idle Up Device)
[01.1986 - 08.1988] BU60 |
88690-90F00 |
— | ||
| replacement | |||||
|
88691
|
88691
88690-90K12
Valve, Magnet (For Idle Up Device)
[01.1986 - 08.1988] BU60 |
88690-90K12 |
— | ||
|
88691
|
88691
88690-90F02
Valve, Magnet (For Idle Up Device)
[08.1988 - 05.1995] BU60 ASSY |
88690-90F02 |
— | ||
|
88691
|
88691
88691-90K00
Valve, Magnet (For Idle Up Device)
[05.1988 - 05.1995] BU60 COMPONENT |
88691-90K00 |
— | ||
|
88691C
|
88691C
90445-08260
Hose (For Idle Up Device)
[05.1988 - 08.1988] BU60 長さ＝１４５０ |
90445-08260 |
— | ||
|
88691C
|
88691C
90999-92004 Hose, Vacuum, No.1 (For Front Drive Shift)[05.1988 - 09.1993] BU60 長さ＝９５０ |
90999-92004 |
from US $8.76 |
||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
US $2.15 |
||
|
9046400413
|
9046400413
90464-00413
New Genuine Part
|
90464-00413 |
— | ||
| replacement | |||||
|
9046400413
|
9046400413
90464-00944 New Genuine Part |
90464-00944 |
US $2.77 |
||
|
9161160616
|
9161160616
91611-60616
Bolt(For Transaxle Case Receiver)
|
91611-60616 |
— | ||
| replacement | |||||
|
9161160616
|
9161160616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.84 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.91 |
||
|
9338516016
|
9338516016
93385-16016 New Genuine Part |
93385-16016 |
US $1.43 |
||
