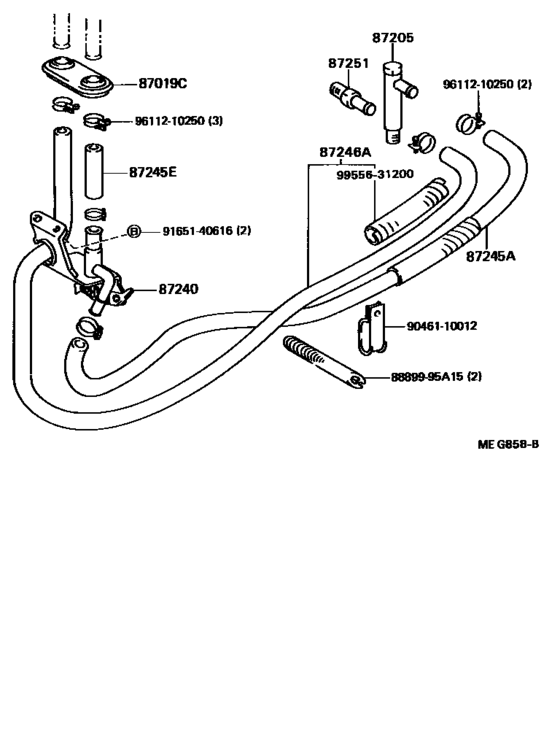

Heating & Air Conditioning - Water Piping ([01.1986 - ] (8601- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87019C
|
87019C
96532-13017 Grommet, Heater Hose[01.1986 - 05.1995] BU60 |
96532-13017 |
from US $1.75 |
||
|
87205
|
87205
87251-95400 Joint Or Union, Front Heater Hose Through Or Inlet Valve[01.1986 - 05.1995] BU60 |
87251-95400 |
US $12.23 |
||
|
87240
|
87240
87240-95405
Valve Assy, Heater Water
[01.1986 - 01.1988] BU60 |
87240-95405 |
— | ||
| replacement | |||||
|
87240
|
87240
87240-95407
Valve Assy, Heater Water
[01.1986 - 01.1988] BU60 |
87240-95407 |
— | ||
|
87240
|
87240
87240-95407
Valve Assy, Heater Water
[01.1988 - 05.1995] BU60 |
87240-95407 |
— | ||
|
87245A
|
87245A
87209-90D00 Hose, Heater Water, Inlet A[01.1986 - 05.1988] BU60 長さ＝９６０ |
87209-90D00 |
US $38.58 |
||
|
87245A
|
87245A
87209-90F03 Hose, Heater Water, Inlet A[05.1988 - 05.1995] BU60 長さ＝１０６０ |
87209-90F03 |
US $40.91 |
||
|
87245A
|
87245A
87245-90F02 Hose, Heater Water, Inlet A[10.1987 - 09.1993] BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
87245-90F02 |
US $27.23 |
||
|
87245E
|
87245E
99556-30100 Hose, Water Inlet[01.1986 - 05.1988] BU60 ＊Ｈ，Ｌ＝６０ |
99556-30100 |
from US $2.96 |
||
|
87246A
|
87246A
87209-90F00 Hose, Heater Water, Outlet A[01.1986 - 05.1988] BU60 長さ＝１２００ |
87209-90F00 |
US $41.64 |
||
|
87246A
|
87246A
87209-90F04 Hose, Heater Water, Outlet A[05.1988 - 05.1995] BU60 長さ＝１１４０ |
87209-90F04 |
US $46.88 |
||
|
87246A
|
87246A
87245-90F01 Hose, Heater Water, Outlet A[10.1987 -] BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
87245-90F01 |
US $34.94 |
||
|
87251
|
87251
87251-30200 Union(For Water By-Pass Hose)[01.1986 - 05.1995] BU60 |
87251-30200 |
from US $5.24 |
||
|
87251
|
87251
88898-36030
Joint Or Union, Water Hose Through
[10.1987 -] BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
88898-36030 |
— | ||
|
8889995A15
|
8889995A15
88899-95A15
Cover, Evaporator
|
88899-95A15 |
— | ||
|
9046110012
|
9046110012
90461-10012
New Genuine Part
|
90461-10012 |
— | ||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9611210250
|
9611210250
96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose) |
96112-10250 |
from US $2.22 |
||
|
9955631200
|
9955631200
99556-31200 Hose, Heater Water, Outlet A |
99556-31200 |
US $31.30 |
||
| replacement | |||||
|
9955631200
|
9955631200
99556-32000
Hose, Heater Water
|
99556-32000 |
— | ||
