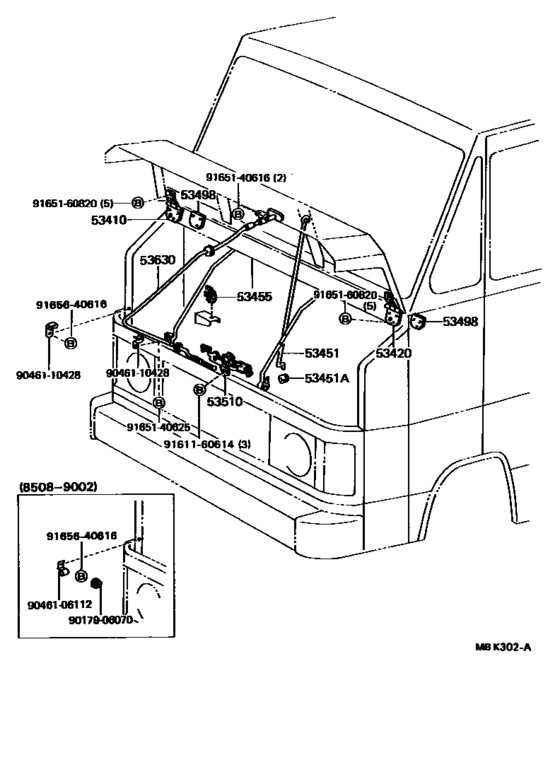

Hood Lock & Hinge ([01.1986 - ] (8601- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53410
|
53410
53401-90D00 Hinge Assy, Hood, Rh[01.1986 - 05.1995] BU60 |
53401-90D00 |
US $20.82 |
||
|
53420
|
53420
53401-90D00 Hinge Assy, Hood, Rh[01.1986 - 05.1995] BU60 |
53401-90D00 |
US $20.82 |
||
|
53451
|
53451
53451-90D01 Rod, Hood Support[01.1986 - 05.1995] BU60 |
53451-90D01 |
US $23.88 |
||
|
53451A
|
53451A
90480-15296 Grommet(For Hood Support)[01.1986 - 05.1995] BU60 |
90480-15296 |
from US $2.26 |
||
|
53455
|
53455
53455-14020 Clamp, Hood Support Rod[01.1986 - 05.1995] BU60 |
53455-14020 |
from US $1.28 |
||
|
53498
|
53498
53498-90D00 Pad, Hood Hinge, No.2[01.1986 - 05.1995] BU60 |
53498-90D00 |
US $2.48 |
||
|
53510
|
53510
53510-90D01 Lock Assy, Hood[01.1986 - 05.1995] BU60 |
53510-90D01 |
US $42.95 |
||
|
53630
|
53630
53630-90D00 Cable Assy, Hood Lock Control[01.1986 - 05.1995] BU60 |
53630-90D00 |
US $24.17 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
|
9046106112
|
9046106112
90461-06112 Clamp, Brake Tube, No.6 |
90461-06112 |
US $2.33 |
||
|
9046110428
|
9046110428
90461-10428
New Genuine Part
|
90461-10428 |
— | ||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.78 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.25 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.97 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
from US $1.16 |
||
