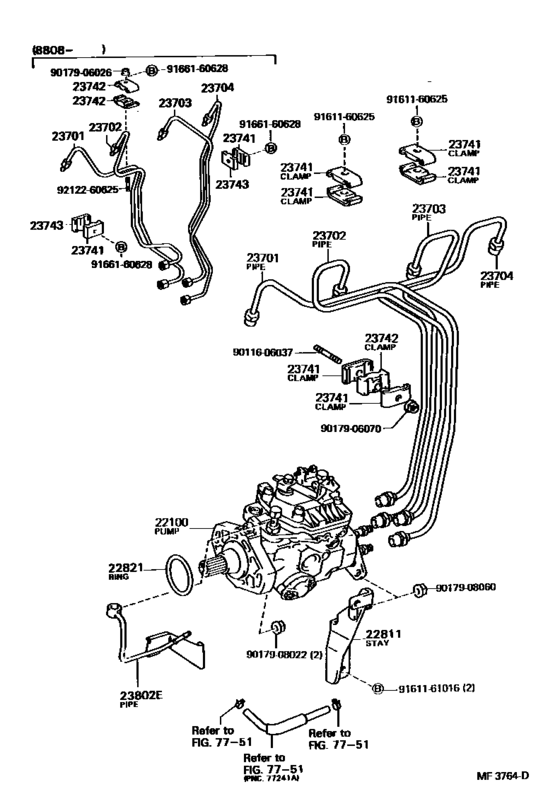

Injection Pump Assembly ([01.1986 - ] (8601- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22100
|
22100
22100-56200 Pump Assy, Injection Or Supply[01.1986 - 08.1986] B..BU60 |
22100-56200 |
US $2,926.56 |
||
|
22100
|
22100
22100-56201 Pump Assy, Injection Or Supply[08.1986 - 08.1988] B..BU60 |
22100-56201 |
US $2,912 |
||
|
22100
|
22100
22100-56290 Pump Assy, Injection Or Supply[08.1988 - 05.1995] B..BU60 |
22100-56290 |
US $3,654.56 |
||
| replacement | |||||
|
22100
|
22100
22100-56430 Pump Assy, Injection Or Supply[08.1988 - 05.1995] B..BU60 |
22100-56430 |
US $3,741.92 |
||
|
22811
|
22811
22811-56020 Stay, Injection Pump, No.1[01.1986 - 08.1988] B..BU60 |
22811-56020 |
US $15.43 |
||
|
22811
|
22811
22811-56050 Stay, Injection Pump, No.1[08.1988 - 05.1995] B..BU60 |
22811-56050 |
US $18.78 |
||
|
22821
|
22821
90301-49003 Gasket, Injection Pump[01.1986 - 05.1995] B..BU60 |
90301-49003 |
from US $2.15 |
||
|
23701
|
23701
23701-56050 Pipe Sub-Assy, Injection, No.1[01.1986 - 08.1988] B..BU60 |
23701-56050 |
US $41.20 |
||
|
23701
|
23701
23701-56070 Pipe Sub-Assy, Injection, No.1[08.1988 - 05.1995] B..BU60 |
23701-56070 |
from US $33.49 |
||
|
23702
|
23702
23702-56050 Pipe Sub-Assy, Injection, No.2[01.1986 - 08.1988] B..BU60 |
23702-56050 |
US $41.20 |
||
|
23702
|
23702
23702-56070 Pipe Sub-Assy, Injection, No.2[08.1988 - 05.1995] B..BU60 |
23702-56070 |
US $33.49 |
||
|
23703
|
23703
23703-56050 Pipe Sub-Assy, Injection, No.3[01.1986 - 08.1988] B..BU60 |
23703-56050 |
US $41.20 |
||
|
23703
|
23703
23703-56070 Pipe Sub-Assy, Injection, No.3[08.1988 - 05.1995] B..BU60 |
23703-56070 |
US $33.49 |
||
|
23704
|
23704
23704-56050 Pipe Sub-Assy, Injection, No.4[01.1986 - 08.1988] B..BU60 |
23704-56050 |
US $41.20 |
||
|
23704
|
23704
23704-56070 Pipe Sub-Assy, Injection, No.4[08.1988 - 05.1995] B..BU60 |
23704-56070 |
US $33.49 |
||
|
23741
|
23741
23741-54010 Clamp, Injection Pipe, No.1[08.1988 - 05.1995] B..BU60 |
23741-54010 |
US $22.34 |
||
|
23741
|
23741
23741-56010 Clamp, Injection Pipe, No.1[01.1986 - 08.1988] B..BU60 |
23741-56010 |
from US $6.04 |
||
|
23742
|
23742
23741-56010 Clamp, Injection Pipe, No.1[08.1988 - 05.1995] B..BU60 |
23741-56010 |
from US $6.04 |
||
|
23742
|
23742
23741-56020
Clamp, Injection Pipe, No.2
[01.1986 - 08.1988] B..BU60 |
23741-56020 |
— | ||
| replacement | |||||
|
23742
|
23742
23741-56021 Clamp, Injection Pipe, No.2[01.1986 - 08.1988] B..BU60 |
23741-56021 |
US $4.89 |
||
|
23743
|
23743
23742-54010 Clamp, Injection Pipe, No.2[08.1988 - 05.1995] B..BU60 |
23742-54010 |
US $22.34 |
||
|
23802E
|
23802E
23801-56070
Pipe Sub-Assy, Fuel
[01.1986 - 08.1988] B..BU60 |
23801-56070 |
— | ||
|
23802E
|
23802E
23801-56090 Pipe Sub-Assy, Fuel[08.1988 - 05.1995] B..BU60 |
23801-56090 |
US $25.77 |
||
|
9011606037
|
9011606037
90116-06037 New Genuine Part |
90116-06037 |
US $2.33 |
||
| replacement | |||||
|
9011606037
|
9011606037
90116-06158 New Genuine Part |
90116-06158 |
US $1.46 |
||
|
9017906026
|
9017906026
90179-06026
Nut, Cap(For Cylinder Head Cover)
|
90179-06026 |
— | ||
| replacement | |||||
|
9017906026
|
9017906026
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
|
9017908022
|
9017908022
90179-08022 NUT |
90179-08022 |
from US $1.48 |
||
|
9017908060
|
9017908060
90179-08060 New Genuine Part |
90179-08060 |
US $1.89 |
||
|
9161160625
|
9161160625
91611-60625
Bolt, W/washer (For Parking Cove & Case)
|
91611-60625 |
— | ||
| replacement | |||||
|
9161160625
|
9161160625
91611-B0625 Bolt (For Automatic Transmission Oil Pan) |
91611-B0625 |
from US $0.38 |
||
|
9161161016
|
9161161016
91611-61016
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-61016 |
— | ||
| replacement | |||||
|
9161161016
|
9161161016
91612-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91612-61016 |
US $2.51 |
||
|
9166160628
|
9166160628
91661-60628
New Genuine Part
|
91661-60628 |
— | ||
| replacement | |||||
|
9166160628
|
9166160628
90119-06775 BOLT WWASHER |
90119-06775 |
from US $1.05 |
||
|
9212260625
|
9212260625
92122-60625 New Genuine Part |
92122-60625 |
US $0.76 |
||
