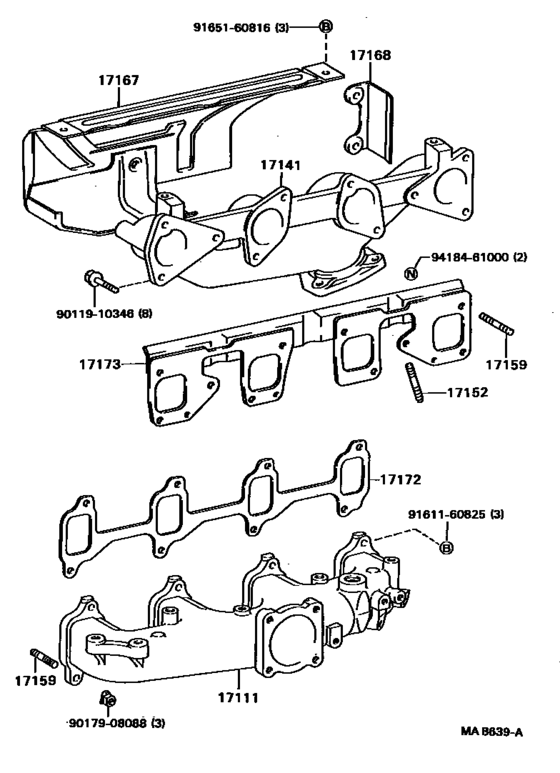

Manifold ([08.1988 - ] (8808- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17111-56140 Manifold, Intake[01.1986 - 08.1988] B..BU60 |
17111-56140 |
US $347.98 |
||
| replacements | |||||
|
17111
|
17111
17111-58090 Manifold, Intake[01.1986 - 08.1988] B..BU60 |
17111-58090 |
US $347.98 |
||
|
17111
|
17111
17171-58020 Gasket, Manifold To Cylinder Head[01.1986 - 08.1988] B..BU60 |
17171-58020 |
from US $8.91 |
||
|
17111
|
17111
17111-56170 Manifold, Intake[08.1988 - 12.1992] B..BU60 |
17111-56170 |
US $345.07 |
||
| replacements | |||||
|
17111
|
17111
17111-58090 Manifold, Intake[08.1988 - 12.1992] B..BU60 |
17111-58090 |
US $347.98 |
||
|
17111
|
17111
17171-58020 Gasket, Manifold To Cylinder Head[08.1988 - 12.1992] B..BU60 |
17171-58020 |
from US $8.91 |
||
|
17111
|
17111
17111-56200 Manifold, Intake[12.1992 - 05.1995] B..BU60 |
17111-56200 |
US $345.07 |
||
| replacements | |||||
|
17111
|
17111
17111-58090 Manifold, Intake[12.1992 - 05.1995] B..BU60 |
17111-58090 |
US $347.98 |
||
|
17111
|
17111
17171-58020 Gasket, Manifold To Cylinder Head[12.1992 - 05.1995] B..BU60 |
17171-58020 |
from US $8.91 |
||
|
17141
|
17141
17141-56050
Manifold, Exhaust
[01.1986 - 08.1988] B..BU60 |
17141-56050 |
— | ||
|
17141
|
17141
17141-56060 Manifold, Exhaust[08.1988 - 05.1995] B..BU60 |
17141-56060 |
from US $198.02 |
||
|
17152
|
17152
90116-10056
Bolt, Stud(For Turbocharger)
[01.1986 - 05.1987] B..BU60 |
90116-10056 |
— | ||
| replacement | |||||
|
17152
|
17152
90116-10087 Bolt, Stud(For Turbocharger)[01.1986 - 05.1987] B..BU60 |
90116-10087 |
from US $2.24 |
||
|
17152
|
17152
90116-10087 Bolt, Stud(For Turbocharger)[05.1987 - 05.1995] B..BU60 |
90116-10087 |
from US $2.24 |
||
|
17159
|
17159
90116-08352 Bolt, Stud(For Intake Manifold To Cylinder Head)[02.1990 - 05.1995] B..BU60 INTAKE MANIFOLD |
90116-08352 |
US $2.33 |
||
|
17159
|
17159
90116-10098
Bolt, Stud(For Exhaust Manifold To Cylinder Head)
[01.1986 - 05.1988] B..BU60 EXHAUST MANIFOLD |
90116-10098 |
— | ||
| replacement | |||||
|
17159
|
17159
90116-10063 Bolt, Stud(For Exhaust Manifold To Cylinder Head)[01.1986 - 05.1988] B..BU60 EXHAUST MANIFOLD |
90116-10063 |
from US $0.91 |
||
|
17159
|
17159
90116-10147 Bolt, Stud(For Manifold To Cylinder Head)[08.1988 - 04.1989] B..BU60 EXHAUST MANIFOLD |
90116-10147 |
US $3.35 |
||
| replacement | |||||
|
17159
|
17159
90116-10063 Bolt, Stud(For Exhaust Manifold To Cylinder Head)[08.1988 - 04.1989] B..BU60 EXHAUST MANIFOLD |
90116-10063 |
from US $0.91 |
||
|
17159
|
17159
92132-60825 Bolt, Stud(For Manifold To Cylinder Head)[01.1986 - 05.1988] B..BU60 INTAKE MANIFOLD |
92132-60825 |
US $3.58 |
||
|
17167
|
17167
17167-56022
Insulator, Exhaust Manifold Heat, No.1
[01.1986 - 08.1987] B..BU60 |
17167-56022 |
— | ||
| replacement | |||||
|
17167
|
17167
17167-56023
Insulator, Exhaust Manifold Heat, No.1
[01.1986 - 08.1987] B..BU60 |
17167-56023 |
— | ||
|
17167
|
17167
17167-56023
Insulator, Exhaust Manifold Heat, No.1
[08.1987 - 08.1988] B..BU60 |
17167-56023 |
— | ||
|
17167
|
17167
17167-56050 Insulator, Exhaust Manifold Heat, No.1[08.1988 - 12.1992] B..BU60 |
17167-56050 |
US $123.76 |
||
| replacement | |||||
|
17167
|
17167
17167-56060 Insulator, Exhaust Manifold Heat, No.1[08.1988 - 12.1992] B..BU60 |
17167-56060 |
US $108.33 |
||
|
17167
|
17167
17167-56060 Insulator, Exhaust Manifold Heat, No.1[12.1992 - 05.1995] B..BU60 |
17167-56060 |
US $108.33 |
||
|
17168
|
17168
17168-56010 Insulator, Exhaust Manifold Heat, No.2[08.1988 - 05.1995] B..BU60..CBU |
17168-56010 |
US $29.27 |
||
| replacement | |||||
|
17168
|
17168
17168-58060 Insulator, Exhaust Manifold Heat, No.2[08.1988 - 05.1995] B..BU60..CBU |
17168-58060 |
US $10.13 |
||
|
17168
|
17168
17168-58030 Insulator, Exhaust Manifold Heat, No.2[01.1986 - 08.1988] B..BU60 |
17168-58030 |
US $26.50 |
||
|
17172
|
17172
17171-56010 Gasket, Manifold To Cylinder Head[08.1988 - 05.1995] B..BU60 |
17171-56010 |
from US $10.93 |
||
|
17172
|
17172
17172-56022
Gasket, Manifold To Cylinder Head
[01.1986 - 08.1988] B..BU60 |
17172-56022 |
— | ||
| replacement | |||||
|
17172
|
17172
17171-56010 Gasket, Manifold To Cylinder Head[01.1986 - 08.1988] B..BU60 |
17171-56010 |
from US $10.93 |
||
|
17173
|
17173
17173-56040 Gasket, Exhaust Manifold To Head[08.1988 - 05.1995] B..BU60 |
17173-56040 |
from US $15.87 |
||
|
17173
|
17173
17173-58010 Gasket, Exhaust Manifold To Head[01.1986 - 08.1988] B..BU60 |
17173-58010 |
from US $22.04 |
||
|
9011910346
|
9011910346
90119-10346
Bolt (For Front Lower Ball Joint)
|
90119-10346 |
— | ||
| replacement | |||||
|
9011910346
|
9011910346
90105-10057 Bolt (For Front Lower Ball Joint) |
90105-10057 |
US $4.12 |
||
|
9017908088
|
9017908088
90179-08088
NUT
|
90179-08088 |
— | ||
| replacement | |||||
|
9017908088
|
9017908088
94185-60800 NUT |
94185-60800 |
from US $0.80 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.08 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $0.99 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
|
9418461000
|
9418461000
94184-61000 Nut(For Rear Spring) |
94184-61000 |
US $2.87 |
||
| replacement | |||||
|
9418461000
|
9418461000
48284-0W060 Nut, Front Spring Center Bolt |
48284-0W060 |
from US $0.87 |
||
