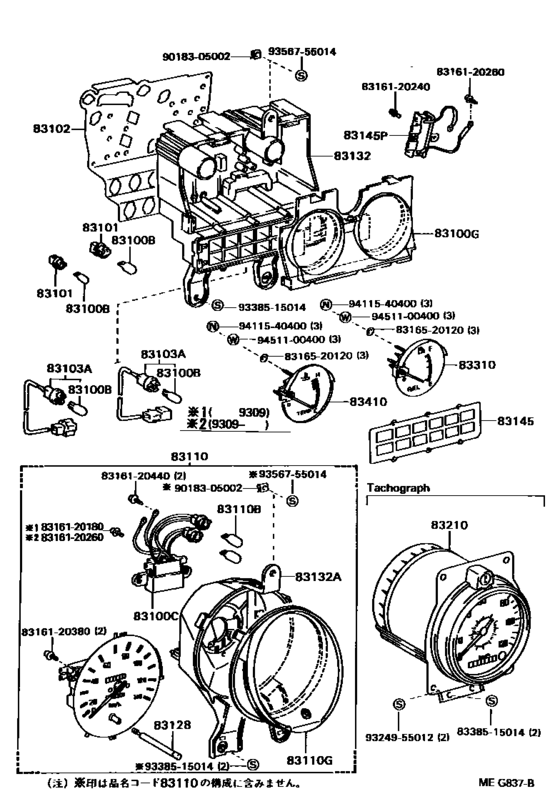

Meter ([01.1986 - ] (8601- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83119-60060 Bulb, Combination Meter, No.1[09.1993 - 05.1995] BU60 ２４Ｖ ３．０Ｗ，グリーン キャップ |
83119-60060 |
US $3.06 |
||
|
83100B
|
83100B
90981-11022 Bulb, Ash Receptacle Lamp[01.1986 - 05.1988] BU60 ２４Ｖ １．４Ｗ,24V 1.4W |
90981-11022 |
US $3.05 |
||
|
83100B
|
83100B
99134-12030 Bulb, Position Indicator Lamp[05.1988 - 09.1993] BU60 ２４Ｖ ３Ｗ |
99134-12030 |
from US $2.15 |
||
|
83100G
|
83100G
83134-95405 Glass, Combination Meter[01.1986 - 05.1995] BU60 |
83134-95405 |
US $81.54 |
||
|
83101
|
83101
83101-89101 Socket Sub-Assy, Combination Meter Bulb[01.1986 - 05.1988] BU60 24V 3W |
83101-89101 |
US $9.32 |
||
|
83101
|
83101
83101-95020 Socket Sub-Assy, Combination Meter Bulb[01.1986 - 05.1988] BU60 24V 1.4W |
83101-95020 |
US $5.73 |
||
|
83102
|
83102
83247-90F00 Plate Sub-Assy, Combination Meter Circuit, No.1[01.1986 - 05.1995] BU60 |
83247-90F00 |
US $62.90 |
||
|
83102
|
83102
83247-90F01 Plate Sub-Assy, Combination Meter Circuit, No.1[08.1987 - 05.1988] BU60 W/BACK DOOR INDICATOR |
83247-90F01 |
US $63.77 |
||
|
83102
|
83102
83247-95404 Plate Sub-Assy, Combination Meter Circuit, No.1[01.1986 - 08.1987] BU60 W/BACK DOOR INDICATOR |
83247-95404 |
US $63.48 |
||
|
83103A
|
83103A
83103-90F00 Lamp Sub-Assy, Meter[01.1986 - 08.1987] BU60 DR. SEAT |
83103-90F00 |
US $63.48 |
||
|
83103A
|
83103A
83103-90F01 Lamp Sub-Assy, Meter[01.1986 - 05.1988] BU60 REVERSE |
83103-90F01 |
US $63.04 |
||
|
83132
|
83132
83132-95402 Case, Combination Meter[01.1986 - 05.1995] BU60 |
83132-95402 |
US $68.14 |
||
|
83145
|
83145
83145-90F04 Lens, Meter, No.1[01.1986 - 08.1987] BU60 W/BACK DOOR INDICATOR |
83145-90F04 |
US $14.56 |
||
|
83145
|
83145
83145-90F06 Lens, Meter, No.1[01.1986 - 08.1987] BU60 W/DR.SEAT & BACK DOOR IND. |
83145-90F06 |
US $14.56 |
||
|
83145
|
83145
83145-90F10 Lens, Meter, No.1[08.1987 - 05.1988] BU60 W/BACK DOOR INDICATOR |
83145-90F10 |
US $14.12 |
||
|
83145
|
83145
83145-90F11 Lens, Meter, No.1[08.1987 - 05.1988] BU60 W/DR.SEAT & BACK DOOR IND. |
83145-90F11 |
US $14.56 |
||
|
83145
|
83145
83146-26020 Lens, Meter, No.1[09.1993 - 05.1995] BU60..N; BU60..D..CBU ｱﾘ(ﾊﾞﾂｸ ﾄﾞｱ ｲﾝｼﾞｹ-ﾀ) |
83146-26020 |
US $8.15 |
||
|
83145P
|
83145P
83131-95401 Droper, Meter[01.1986 - 05.1995] BU60 |
83131-95401 |
US $69.01 |
||
|
83210
|
83210
83210-90F00 Tachograph Assy[08.1986 - 05.1995] BU60..N |
83210-90F00 |
US $1,514.24 |
||
|
83210
|
83210
83210-95409 Tachograph Assy[01.1986 - 08.1986] BU60..N |
83210-95409 |
US $1,514.24 |
||
|
83310
|
83310
83243-95404 Gage Assy, Fuel Receiver[01.1986 - 05.1995] BU60 |
83243-95404 |
US $24.02 |
||
|
83410
|
83410
83244-95403 Gage Assy, Water Temperature Receiver[01.1986 - 05.1995] BU60 |
83244-95403 |
US $24.02 |
||
|
8316120180
|
8316120180
83161-20180 Case, Combination Meter Mirror, No.1 |
83161-20180 |
US $2.33 |
||
|
8316120240
|
8316120240
83161-20240 Case, Combination Meter Mirror, No.1 |
83161-20240 |
US $1.69 |
||
|
8316120260
|
8316120260
83161-20260 Case, Combination Meter Mirror, No.1 |
83161-20260 |
US $1.89 |
||
|
8316120380
|
8316120380
83161-20380 Case, Combination Meter Mirror, No.1 |
83161-20380 |
US $1.14 |
||
|
8316120440
|
8316120440
83161-20440
Case, Combination Meter Mirror, No.1
|
83161-20440 |
— | ||
|
8316520120
|
8316520120
83165-20120
Mirror, Combination Meter, No.2
|
83165-20120 |
— | ||
|
8338515014
|
8338515014
83385-15014
New Genuine Part
|
83385-15014 |
— | ||
|
9018305002
|
9018305002
90183-05002
New Genuine Part
|
90183-05002 |
— | ||
| replacement | |||||
|
9018305002
|
9018305002
90183-05001
New Genuine Part
|
90183-05001 |
— | ||
|
9324955012
|
9324955012
93249-55012 New Genuine Part |
93249-55012 |
US $0.73 |
||
|
9338515014
|
9338515014
93385-15014 Screw(For Steering Tilt Lever) |
93385-15014 |
US $1.97 |
||
|
9356755014
|
9356755014
93567-55014
Direct
|
93567-55014 |
— | ||
| replacement | |||||
|
9356755014
|
9356755014
93568-55014 Screw |
93568-55014 |
from US $0.48 |
||
|
9411540400
|
9411540400
94115-40400
NUT
|
94115-40400 |
— | ||
| replacement | |||||
|
9411540400
|
9411540400
90076-01001 NUT |
90076-01001 |
US $2.33 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.58 |
||
