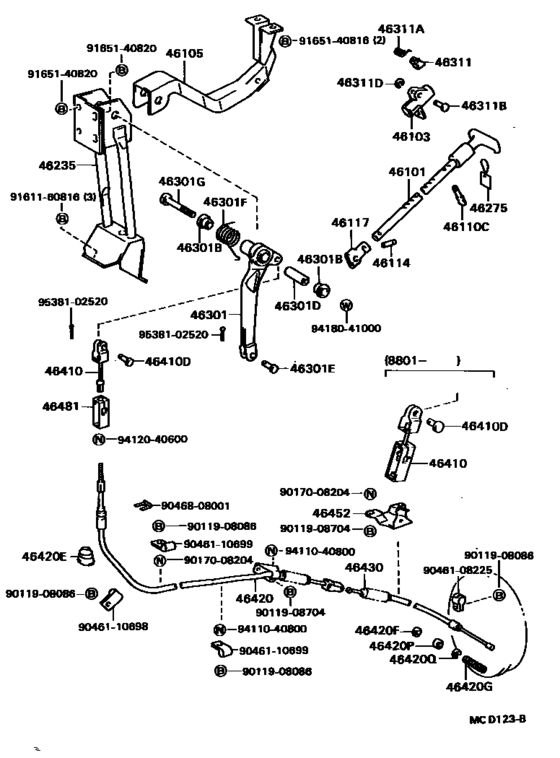

Parking Brake & Cable ([01.1986 - ] (8601- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46101
|
46101
46101-36180-01 Handle Sub-Assy, Parking Brake Control[01.1986 - 05.1988] BU60 BLACK |
46101-36180-01 |
US $44.84 |
||
| replacement | |||||
|
46101
|
46101
46101-36180 Handle Sub-Assy, Parking Brake Control[01.1986 - 05.1988] BU60 BLACK |
46101-36180 |
US $49.36 |
||
|
46103
|
46103
46103-36140 Guide Sub-Assy, Parking Brake Plunger[01.1986 - 05.1995] BU60 |
46103-36140 |
US $11.79 |
||
|
46105
|
46105
46105-36050 Bracket Sub-Assy, Parking Brake Planger Or Pedal[01.1986 - 05.1995] BU60 |
46105-36050 |
US $39.02 |
||
|
46110C
|
46110C
46114-20010 Pin(For Parking Brake Handle Set)[01.1986 - 05.1995] BU60 |
46114-20010 |
from US $2.39 |
||
|
46114
|
46114
46114-30010 Pin, Parking Brake Plunger[01.1986 - 05.1995] BU60 |
46114-30010 |
US $3.06 |
||
|
46117
|
46117
46117-30010 Sleeve, Parking Brake Plunger[01.1986 - 05.1995] BU60 |
46117-30010 |
US $4.37 |
||
|
46235
|
46235
46235-36010 Bracket, Parking Brake Lever Support[01.1986 - 05.1995] BU60 |
46235-36010 |
US $99.01 |
||
|
46275
|
46275
46275-26010 Plate, Parking Brake Release Caution[01.1986 - 05.1995] BU60 |
46275-26010 |
US $2.80 |
||
|
46301
|
46301
46301-36070 Lever Sub-Assy, Parking Brake Intermediate[01.1986 - 05.1995] BU60 |
46301-36070 |
US $29.27 |
||
|
46301B
|
46301B
90386-13007 Bush(For Clutch Pedal)[01.1986 - 05.1995] BU60 |
90386-13007 |
from US $2.45 |
||
|
46301D
|
46301D
90387-10004 Collar, Clutch Pedal Shaft[01.1986 - 05.1995] BU60 |
90387-10004 |
from US $3.76 |
||
|
46301E
|
46301E
90240-08010 Pin (For Power Take-Off Cable)[01.1986 - 05.1995] BU60 |
90240-08010 |
US $2.97 |
||
|
46301F
|
46301F
90508-35024 Spring, Torsion(For Parking Brake Intermediate Lever)[01.1986 - 05.1995] BU60 |
90508-35024 |
US $5.39 |
||
|
46301G
|
46301G
91111-71075 Bolt(For Intermediate Lever)[01.1986 - 05.1995] BU60 |
91111-71075 |
US $3.49 |
||
|
46311
|
46311
46311-26010 Pawl, Parking Brake[01.1986 - 05.1995] BU60 |
46311-26010 |
US $2.62 |
||
|
46311A
|
46311A
90508-08041 Spring(For Parking Brake Pawl)[01.1986 - 05.1995] BU60 |
90508-08041 |
US $1.22 |
||
|
46311B
|
46311B
90249-05010 Pin, Parking Brake Pawl Pivot[01.1986 - 05.1995] BU60 |
90249-05010 |
US $1.41 |
||
|
46311D
|
46311D
90213-03007 Washer, Type C(For Parking Brake Pawl)[01.1986 - 05.1995] BU60 |
90213-03007 |
US $3.14 |
||
|
46410
|
46410
46410-36121 Cable Assy, Parking Brake, No.1[01.1986 - 01.1988] BU60 |
46410-36121 |
US $12.81 |
||
| replacement | |||||
|
46410
|
46410
46410-36350 Cable Assy, Parking Brake, No.1[01.1986 - 01.1988] BU60 |
46410-36350 |
US $14.52 |
||
|
46410
|
46410
46410-36350 Cable Assy, Parking Brake, No.1[01.1988 - 05.1995] BU60 |
46410-36350 |
US $14.52 |
||
|
46410D
|
46410D
90240-08094 Pin, W/hole (For Column Shift Gear Selecting Rod)[01.1986 - 05.1995] BU60 |
90240-08094 |
US $3.32 |
||
|
46420
|
46420
46420-36310 Cable Assy, Parking Brake, No.2[01.1986 - 08.1988] BU60 |
46420-36310 |
US $65.67 |
||
|
46420
|
46420
46420-36360 Cable Assy, Parking Brake, No.2[08.1988 - 05.1995] BU60 |
46420-36360 |
US $74.26 |
||
|
46420E
|
46420E
90480-26006 Grommet(For Parking Brake Cable Clamp)[01.1986 - 05.1995] BU60 |
90480-26006 |
US $4.51 |
||
|
46420F
|
46420F
90303-10001 Seal, Dust(For Parking Brake Cable)[01.1986 - 05.1995] BU60 |
90303-10001 |
US $2.15 |
||
|
46420G
|
46420G
90501-14021 Spring(For Parking Cable Inner Wire Set)[01.1986 - 05.1995] BU60 |
90501-14021 |
from US $2.20 |
||
|
46420P
|
46420P
90560-08002 Spacer(For Parking Brake Handle)[01.1986 - 05.1995] BU60 |
90560-08002 |
US $3.23 |
||
|
46420Q
|
46420Q
96160-00700 Ring, E(For Chain Tensioner Slipper)[01.1986 - 05.1995] BU60 |
96160-00700 |
US $3.58 |
||
|
46430
|
46430
46430-36010 Cable Assy, Parking Brake, No.3[01.1986 - 09.1987] BU60 |
46430-36010 |
US $45.72 |
||
| replacement | |||||
|
46430
|
46430
46430-36011
Cable Assy, Parking Brake, No.3
[01.1986 - 09.1987] BU60 |
46430-36011 |
— | ||
|
46430
|
46430
46430-36011
Cable Assy, Parking Brake, No.3
[09.1987 - 08.1988] BU60 |
46430-36011 |
— | ||
|
46430
|
46430
46430-36230 Cable Assy, Parking Brake, No.3[08.1988 - 05.1995] BU60 |
46430-36230 |
US $45.78 |
||
|
46452
|
46452
46453-36010 Bracket, Parking Brake Cable Support, No.2[01.1986 - 08.1988] BU60 |
46453-36010 |
US $25.63 |
||
|
46452
|
46452
46453-36040 Bracket, Parking Brake Cable Support, No.2[08.1988 - 05.1995] BU60 |
46453-36040 |
US $27.08 |
||
|
46481
|
46481
46481-36012
Connector, Parking Cable
[01.1986 - 01.1988] BU60 |
46481-36012 |
— | ||
|
9011908086
|
9011908086
90119-08086 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08086 |
US $6.81 |
||
|
9011908704
|
9011908704
90119-08704 New Genuine Part |
90119-08704 |
US $1.89 |
||
|
9017008204
|
9017008204
90170-08204 Nut (For Propeller Shaft) |
90170-08204 |
from US $0.72 |
||
|
9046108225
|
9046108225
90461-08225 Clamp, No.3(For Parking Brake Cable) |
90461-08225 |
US $2.51 |
||
|
9046110698
|
9046110698
90461-10698 New Genuine Part |
90461-10698 |
US $3.64 |
||
|
9046110699
|
9046110699
90461-10699 Clamp (For Hose, Tire Air Control No.2) |
90461-10699 |
US $2.62 |
||
|
9046808001
|
9046808001
90468-08001 CLIP |
90468-08001 |
US $3.76 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.95 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $0.96 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.82 |
||
|
9412040600
|
9412040600
94120-40600 Nut, Wire Adjusting, No.1 |
94120-40600 |
US $3.05 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.27 |
||
|
9538102520
|
9538102520
95381-02520 PINCOTTER |
95381-02520 |
US $2.33 |
||
