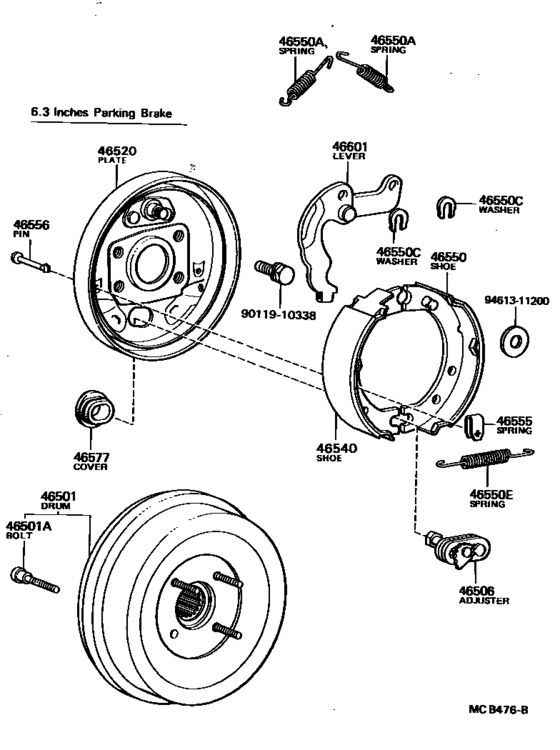

Parking Brake & Cable ([01.1986 - ] (8601- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46501
|
46501
46501-36120
Drum Sub-Assy, Parking Brake
[01.1986 - 01.1990] BU60 |
46501-36120 |
— | ||
|
46501
|
46501
46501-36190 Drum Sub-Assy, Parking Brake[01.1990 - 05.1995] BU60 |
46501-36190 |
from US $117.29 |
||
|
46501A
|
46501A
90114-11124 Bolt (For Transfer Output Shaft Companion Flange)[01.1986 - 05.1995] BU60 |
90114-11124 |
from US $1.25 |
||
|
46506
|
46506
46506-36020 Adjuster Sub-Assy, Parking Brake Shoe, Rh Or Center[01.1986 - 05.1995] BU60 |
46506-36020 |
US $24.19 |
||
|
46520
|
46520
46503-36022 Plate Sub-Assy, Parking Brake, Rh[01.1986 - 05.1995] BU60 |
46503-36022 |
US $37.71 |
||
|
46540
|
46540
46540-36010
Shoe Assy, Parking Brake, Rh Or Center No.1
[01.1986 - 08.1991] BU60 |
46540-36010 |
— | ||
| replacement | |||||
|
46540
|
46540
46540-25010 Shoe Assy, Parking Brake, Rh Or Center No.1[01.1986 - 08.1991] BU60 |
46540-25010 |
from US $14.78 |
||
|
46540
|
46540
46540-36030
Shoe Assy, Parking Brake, Rh Or Center No.1
[08.1991 - 05.1995] BU60 |
46540-36030 |
— | ||
| replacement | |||||
|
46540
|
46540
46540-25010 Shoe Assy, Parking Brake, Rh Or Center No.1[08.1991 - 05.1995] BU60 |
46540-25010 |
from US $14.78 |
||
|
46550
|
46550
46550-36010
Shoe Assy, Parking Brake, Rh Or Center No.2
[01.1986 - 08.1991] BU60 |
46550-36010 |
— | ||
| replacement | |||||
|
46550
|
46550
46550-25010 Shoe Assy, Parking Brake, Rh Or Center No.2[01.1986 - 08.1991] BU60 |
46550-25010 |
from US $15.35 |
||
|
46550
|
46550
46550-36030
Shoe Assy, Parking Brake, Rh Or Center No.2
[08.1991 - 05.1995] BU60 |
46550-36030 |
— | ||
| replacement | |||||
|
46550
|
46550
46550-25010 Shoe Assy, Parking Brake, Rh Or Center No.2[08.1991 - 05.1995] BU60 |
46550-25010 |
from US $15.35 |
||
|
46550A
|
46550A
90506-18012 Spring, Tension, No.1(For Parking Brake Shoe Return)[01.1986 - 05.1995] BU60 |
90506-18012 |
from US $3.94 |
||
|
46550C
|
46550C
90213-06002
Washer, Type C(For Parking Brake Shoe)
[01.1986 - 02.1990] BU60 |
90213-06002 |
— | ||
| replacement | |||||
|
46550C
|
46550C
90213-06003 Washer, Type C(For Parking Brake Shoe)[01.1986 - 02.1990] BU60 |
90213-06003 |
from US $0.87 |
||
|
46550C
|
46550C
90213-06003 Washer, Type C(For Parking Brake Shoe)[02.1990 - 05.1995] BU60 |
90213-06003 |
from US $0.87 |
||
|
46550E
|
46550E
90506-14048 Spring, Tension, No.2(For Parking Brake Shoe Return)[01.1986 - 05.1995] BU60 |
90506-14048 |
from US $2.17 |
||
|
46555
|
46555
46555-35010 Spring, Brake Shoe Hold Down[01.1986 - 05.1995] BU60 |
46555-35010 |
from US $1.18 |
||
|
46556
|
46556
46556-35010 Pin, Shoe Hold Down Spring[01.1986 - 05.1995] BU60 |
46556-35010 |
from US $1.18 |
||
|
46577
|
46577
46577-36010 Cover, Adjusting Cam Hole[01.1986 - 05.1995] BU60 |
46577-36010 |
US $7.17 |
||
|
46601
|
46601
46601-25011 Lever Sub-Assy, Parking Brake Shoe[01.1986 - 05.1995] BU60 |
46601-25011 |
US $29.40 |
||
|
9011910338
|
9011910338
90119-10338 New Genuine Part |
90119-10338 |
US $1.79 |
||
|
9461311200
|
9461311200
94613-11200 WASHER |
94613-11200 |
US $1.25 |
||
