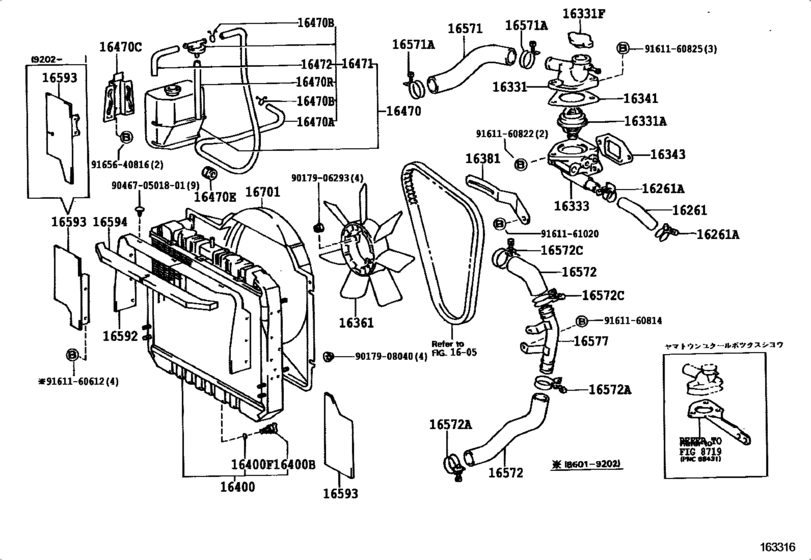

Radiator & Water Outlet ([01.1986 - ] (8601- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16261
|
16261
16261-56012 Hose, Water By-Pass[01.1986 - 05.1995] B..BU60 |
16261-56012 |
from US $9.90 |
||
|
16261A
|
16261A
90044-60053 Clamp Or Clip, Hose(For Water By-Pass Hose)[01.1986 - 09.1986] B..BU60 |
90044-60053 |
US $4.12 |
||
|
16261A
|
16261A
90044-67103
Clip, Hose
[09.1986 - 08.1988] B..BU60 |
90044-67103 |
— | ||
|
16261A
|
16261A
90467-28004
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1988 - 05.1995] B..BU60 |
90467-28004 |
— | ||
| replacement | |||||
|
16261A
|
16261A
90467-28007 Clip Or Clamp(For Ventilation Hose)[08.1988 - 05.1995] B..BU60 |
90467-28007 |
from US $2.98 |
||
|
16331
|
16331
16331-56040 Outlet, Water[01.1986 - 05.1995] B..BU60 |
16331-56040 |
from US $61.33 |
||
|
16331A
|
16331A
90916-03059
Thermostat
[01.1986 - 05.1988] B..BU60 ＊ＷＡＸ ８８−１００ |
90916-03059 |
— | ||
| replacement | |||||
|
16331A
|
16331A
90916-03103 Thermostat[01.1986 - 05.1988] B..BU60 ＊ＷＡＸ ８８−１００ |
90916-03103 |
from US $37.09 |
||
|
16331A
|
16331A
90916-03080
Thermostat
[08.1988 - 05.1995] B..BU60 ＊ＷＡＸ ８８−１００ |
90916-03080 |
— | ||
| replacement | |||||
|
16331A
|
16331A
90916-03103 Thermostat[08.1988 - 05.1995] B..BU60 ＊ＷＡＸ ８８−１００ |
90916-03103 |
from US $37.09 |
||
|
16331F
|
16331F
16401-71010
Cap Sub-Assy(For Water Outlet)
[01.1986 - 05.1995] B..BU60 |
16401-71010 |
— | ||
| replacement | |||||
|
16331F
|
16331F
16401-54750 Radiator Cap[01.1986 - 05.1995] B..BU60 |
16401-54750 |
from US $16.13 |
||
|
16333
|
16333
16333-56060
Housing, Water Outlet
[01.1986 - 08.1988] B..BU60 |
16333-56060 |
— | ||
| replacements | |||||
|
16333
|
16333
16333-58080 Housing, Water Outlet[01.1986 - 08.1988] B..BU60 |
16333-58080 |
from US $59.57 |
||
|
16333
|
16333
16341-56030 Gasket, Water Outlet[01.1986 - 08.1988] B..BU60 |
16341-56030 |
from US $2.51 |
||
|
16333
|
16333
16343-56023 Gasket, Water Outlet Housing[01.1986 - 08.1988] B..BU60 |
16343-56023 |
from US $3.29 |
||
|
16333
|
16333
90341-12006 Plug(For Water Outlet)[01.1986 - 08.1988] B..BU60 |
90341-12006 |
US $4.54 |
||
|
16333
|
16333
90430-12221 Gasket[01.1986 - 08.1988] B..BU60 |
90430-12221 |
from US $1.05 |
||
|
16333
|
16333
92122-60832 Bolt, Stud(For Oil Strainer)[01.1986 - 08.1988] B..BU60 |
92122-60832 |
from US $1.61 |
||
|
16333
|
16333
94185-60800 NUT[01.1986 - 08.1988] B..BU60 |
94185-60800 |
from US $0.80 |
||
|
16333
|
16333
16333-56070
Housing, Water Outlet
[08.1988 - 04.1989] B..BU60 |
16333-56070 |
— | ||
| replacements | |||||
|
16333
|
16333
16333-58080 Housing, Water Outlet[08.1988 - 04.1989] B..BU60 |
16333-58080 |
from US $59.57 |
||
|
16333
|
16333
16343-56023 Gasket, Water Outlet Housing[08.1988 - 04.1989] B..BU60 |
16343-56023 |
from US $3.29 |
||
|
16333
|
16333
92112-60835 Bolt, Stud(For Cylinder Head Cover Set)[08.1988 - 04.1989] B..BU60 |
92112-60835 |
US $3.40 |
||
|
16333
|
16333
90341-12006 Plug(For Water Outlet)[08.1988 - 04.1989] B..BU60 |
90341-12006 |
US $4.54 |
||
|
16333
|
16333
90430-12221 Gasket[08.1988 - 04.1989] B..BU60 |
90430-12221 |
from US $1.05 |
||
|
16333
|
16333
16333-56071
Housing, Water Outlet
[04.1989 - 08.1989] B..BU60 |
16333-56071 |
— | ||
| replacements | |||||
|
16333
|
16333
16343-56023 Gasket, Water Outlet Housing[04.1989 - 08.1989] B..BU60 |
16343-56023 |
from US $3.29 |
||
|
16333
|
16333
16333-58080 Housing, Water Outlet[04.1989 - 08.1989] B..BU60 |
16333-58080 |
from US $59.57 |
||
|
16333
|
16333
90341-12006 Plug(For Water Outlet)[04.1989 - 08.1989] B..BU60 |
90341-12006 |
US $4.54 |
||
|
16333
|
16333
90430-12221 Gasket[04.1989 - 08.1989] B..BU60 |
90430-12221 |
from US $1.05 |
||
|
16333
|
16333
16333-56072
Housing, Water Outlet
[08.1989 - 05.1995] B..BU60 |
16333-56072 |
— | ||
| replacements | |||||
|
16333
|
16333
16333-58080 Housing, Water Outlet[08.1989 - 05.1995] B..BU60 |
16333-58080 |
from US $59.57 |
||
|
16333
|
16333
90341-12006 Plug(For Water Outlet)[08.1989 - 05.1995] B..BU60 |
90341-12006 |
US $4.54 |
||
|
16333
|
16333
90430-12221 Gasket[08.1989 - 05.1995] B..BU60 |
90430-12221 |
from US $1.05 |
||
|
16341
|
16341
16341-56020
Gasket, Water Outlet
[01.1986 - 08.1988] B..BU60 |
16341-56020 |
— | ||
| replacement | |||||
|
16341
|
16341
16341-56021 Gasket, Water Outlet[01.1986 - 08.1988] B..BU60 |
16341-56021 |
from US $3.71 |
||
|
16341
|
16341
16341-56030 Gasket, Water Outlet[08.1988 - 05.1995] B..BU60 |
16341-56030 |
from US $2.51 |
||
|
16343
|
16343
16343-56020
Gasket, Water Outlet Housing
[01.1986 - 08.1988] B..BU60 |
16343-56020 |
— | ||
| replacement | |||||
|
16343
|
16343
16343-56023 Gasket, Water Outlet Housing[01.1986 - 08.1988] B..BU60 |
16343-56023 |
from US $3.29 |
||
|
16343
|
16343
16343-56021
Gasket, Water Outlet Housing
[08.1989 - 01.1990] B..BU60 |
16343-56021 |
— | ||
| replacement | |||||
|
16343
|
16343
16343-56023 Gasket, Water Outlet Housing[08.1989 - 01.1990] B..BU60 |
16343-56023 |
from US $3.29 |
||
|
16343
|
16343
16343-56022 Gasket, Water Outlet Housing[01.1990 - 04.1993] B..BU60 |
16343-56022 |
US $6.84 |
||
| replacement | |||||
|
16343
|
16343
16343-56023 Gasket, Water Outlet Housing[01.1990 - 04.1993] B..BU60 |
16343-56023 |
from US $3.29 |
||
|
16343
|
16343
16343-56023 Gasket, Water Outlet Housing[04.1993 - 05.1995] B..BU60 |
16343-56023 |
from US $3.29 |
||
|
16361
|
16361
16361-56070 Fan[01.1986 - 05.1995] B..BU60 |
16361-56070 |
US $100.51 |
||
|
16381
|
16381
16381-56030
Bar, Fan Belt Adjusting
[01.1986 - 08.1988] B..BU60 |
16381-56030 |
— | ||
|
16381
|
16381
16381-58040 Bar, Fan Belt Adjusting[08.1988 - 05.1995] B..BU60..N |
16381-58040 |
US $28.10 |
||
|
16400
|
16400
16400-56161 Radiator Assy[01.1986 - 05.1995] B..BU60 |
16400-56161 |
US $969.78 |
||
|
16400B
|
16400B
16417-58090 Plug, Radiator Drain Cock[01.1986 - 05.1995] B..BU60 |
16417-58090 |
US $4.66 |
||
|
16400F
|
16400F
16418-24051 Packing(For Radiator Drain Cock)[01.1986 - 05.1995] B..BU60 |
16418-24051 |
US $3.40 |
||
|
16470
|
16470
16470-56140
Tank Assy, Radiator Reserve
[01.1986 - 05.1995] B..BU60 |
16470-56140 |
— | ||
|
16470A
|
16470A
90445-12015
Hose Or Pipe(For Radiator Reserve Tank)
[01.1986 - 05.1988] B..BU60 長さ＝１３００ |
90445-12015 |
— | ||
|
16470B
|
16470B
90467-11085 Clamp Or Clip(For Radiator Breather Hose)[01.1986 - 05.1995] B..BU60 |
90467-11085 |
from US $0.70 |
||
|
16470C
|
16470C
16611-54040 Bracket(For Radiator Reserve Tank)[01.1986 - 05.1995] B..BU60 |
16611-54040 |
US $26.64 |
||
|
16470E
|
16470E
90480-18011 Grommet, Radiator Reserve Tank Hose[01.1986 - 05.1995] B..BU60 |
90480-18011 |
US $1.05 |
||
|
16470R
|
16470R
90445-12078 Hose(For Radiator Breather)[01.1986 - 05.1988] B..BU60 ＊Ｈ，Ｌ＝２００，マーク＝＃＊ |
90445-12078 |
from US $6.57 |
||
|
16471
|
16471
16405-56080
Cap Sub-Assy, Reserve Tank
[01.1986 - 05.1995] B..BU60 |
16405-56080 |
— | ||
|
16472
|
16472
85338-22030
Hose, Breather
[01.1986 - 05.1995] B..BU60 |
85338-22030 |
— | ||
|
16571
|
16571
16571-56040 Hose, Radiator, Inlet[01.1986 - 08.1988] B..BU60 |
16571-56040 |
US $32.18 |
||
|
16571
|
16571
16571-56060 Hose, Radiator, Inlet[08.1988 - 05.1995] B..BU60 |
16571-56060 |
US $39.98 |
||
|
16571A
|
16571A
90467-42001
Clamp Or Clip, Hose(For Radiator Inlet)
[01.1986 - 08.1987] B..BU60 |
90467-42001 |
— | ||
| replacement | |||||
|
16571A
|
16571A
90466-41008 Clamp, Hose(For Radiator Hose)[01.1986 - 08.1987] B..BU60 |
90466-41008 |
from US $4.07 |
||
|
16571A
|
16571A
96111-10490 Clamp Or Clip, Sub Radiator Hose[08.1987 - 10.1989] B..BU60 |
96111-10490 |
from US $1.97 |
||
|
16572
|
16572
16572-56080
Hose, Radiator, Outlet
[01.1986 - 08.1987] B..BU60 WATER PUMP SIDE |
16572-56080 |
— | ||
| replacement | |||||
|
16572
|
16572
16572-56081 Hose, Radiator, Outlet[01.1986 - 08.1987] B..BU60 WATER PUMP SIDE |
16572-56081 |
US $15.42 |
||
|
16572
|
16572
16572-56081 Hose, Radiator, Outlet[08.1987 - 08.1988] B..BU60 WATER PUMP SIDE |
16572-56081 |
US $15.42 |
||
|
16572
|
16572
16572-56090 Hose, Radiator, Outlet[08.1988 - 11.1991] B..BU60 WATER PUMP SIDE |
16572-56090 |
US $17.33 |
||
| replacements | |||||
|
16572
|
16572
16572-56091 Hose, Radiator, Outlet[08.1988 - 11.1991] B..BU60 WATER PUMP SIDE |
16572-56091 |
from US $10.13 |
||
|
16572
|
16572
96111-10490 Clamp Or Clip, Sub Radiator Hose[08.1988 - 11.1991] B..BU60 WATER PUMP SIDE |
96111-10490 |
from US $1.97 |
||
|
16572
|
16572
16572-56091 Hose, Radiator, Outlet[11.1991 - 05.1995] B..BU60 WATER PUMP SIDE |
16572-56091 |
from US $10.13 |
||
|
16572
|
16572
16573-56030 Hose, Radiator, Outlet[01.1986 - 06.1986] B..BU60 RADIATOR SIDE |
16573-56030 |
US $28.97 |
||
|
16572
|
16572
16573-56031 Hose, Radiator, Outlet[06.1986 - 08.1987] B..BU60 RADIATOR SIDE |
16573-56031 |
US $29.12 |
||
|
16572
|
16572
16573-56040 Hose, Radiator, Outlet[08.1987 - 05.1988] B..BU60 RADIATOR SIDE |
16573-56040 |
from US $23.71 |
||
|
16572
|
16572
16573-56050 Hose, Radiator, Outlet[08.1988 - 05.1995] B..BU60 ラジエータ側 |
16573-56050 |
US $24.61 |
||
| replacement | |||||
|
16572
|
16572
16573-58070 Hose, Radiator, No.3[08.1988 - 05.1995] B..BU60 ラジエータ側 |
16573-58070 |
US $29.57 |
||
|
16572A
|
16572A
96111-10510 Clamp Or Clip, Sub Radiator Hose[01.1986 - 05.1995] B..BU60 |
96111-10510 |
US $4.66 |
||
|
16572C
|
16572C
96111-10490 Clamp Or Clip, Sub Radiator Hose[11.1991 - 05.1995] B..BU60 PIPE SIDE |
96111-10490 |
from US $1.97 |
||
|
16572C
|
16572C
96111-10510 Clamp Or Clip, Sub Radiator Hose[01.1986 - 05.1988] B..BU60 PIPE SIDE |
96111-10510 |
US $4.66 |
||
|
16572C
|
16572C
96111-10560 Clamp Or Clip, Hose(For Radiator Outlet No.1)[01.1986 - 08.1987] B..BU60 WATER PUMP SIDE |
96111-10560 |
US $4.12 |
||
|
16572C
|
16572C
96111-10570 Clamp Or Clip, Hose(For Radiator Outlet No.1)[08.1987 - 05.1988] B..BU60 WATER PUMP SIDE |
96111-10570 |
US $2.87 |
||
|
16577
|
16577
16577-56030
Pipe, Radiator, No.7
[01.1986 - 06.1986] B..BU60 |
16577-56030 |
— | ||
| replacements | |||||
|
16577
|
16577
16573-56031 Hose, Radiator, Outlet[01.1986 - 06.1986] B..BU60 |
16573-56031 |
US $29.12 |
||
|
16577
|
16577
16577-56031 Pipe, Radiator, No.7[01.1986 - 06.1986] B..BU60 |
16577-56031 |
US $56.35 |
||
|
16577
|
16577
16577-56031 Pipe, Radiator, No.7[06.1986 - 08.1987] B..BU60 |
16577-56031 |
US $56.35 |
||
|
16577
|
16577
16577-56040 Pipe, Radiator, No.7[08.1987 - 08.1988] B..BU60 |
16577-56040 |
US $55.91 |
||
|
16577
|
16577
16577-56050 Pipe, Radiator, No.7[08.1988 - 05.1995] B..BU60 |
16577-56050 |
US $55.76 |
||
|
16592
|
16592
16593-56030 Guide, Radiator Air, No.3[01.1986 - 07.1986] B..BU60 |
16593-56030 |
US $36.84 |
||
|
16593
|
16593
16593-56050 Guide, Radiator Air, No.1[01.1986 - 05.1988] B..BU60 RH |
16593-56050 |
US $68.14 |
||
| replacement | |||||
|
16593
|
16593
16593-56051 Guide, Radiator Air, No.1[01.1986 - 05.1988] B..BU60 RH |
16593-56051 |
US $68.14 |
||
|
16593
|
16593
16593-56051 Guide, Radiator Air, No.1[02.1992 - 05.1995] B..BU60 右側 |
16593-56051 |
US $68.14 |
||
|
16593
|
16593
16595-56030 Guide, Radiator Air, No.1[01.1986 - 05.1988] B..BU60 LH |
16595-56030 |
US $68.14 |
||
| replacement | |||||
|
16593
|
16593
16595-56031 Guide, Radiator Air, No.1[01.1986 - 05.1988] B..BU60 LH |
16595-56031 |
US $68.14 |
||
|
16593
|
16593
16595-56031 Guide, Radiator Air, No.1[02.1992 - 05.1995] B..BU60 左側 |
16595-56031 |
US $68.14 |
||
|
16593
|
16593
16595-56050 Guide, Radiator Air, No.1[01.1988 -] B..BU60..N..3D YAMATO COOL TAKKUBIN |
16595-56050 |
US $68.14 |
||
|
16594
|
16594
16594-56020 Guide, Radiator Air, No.2[01.1986 - 07.1986] B..BU60 |
16594-56020 |
US $18.64 |
||
|
16701
|
16701
16701-56321 Shroud Sub-Assy, Fan[01.1986 - 05.1995] B..BU60 |
16701-56321 |
US $97.55 |
||
|
9017906293
|
9017906293
90179-06293 NUT |
90179-06293 |
from US $0.82 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.01 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.76 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.74 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $1.16 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.08 |
||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.68 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.05 |
||
|
9165640816
|
9165640816
91656-40816 New Genuine Part |
91656-40816 |
US $1.89 |
||
| replacement | |||||
|
9165640816
|
9165640816
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.84 |
||
|
904670501801
|
904670501801
90467-05018-01
Clip, Slide Door Trim Carpet
|
90467-05018-01 |
— | ||
| replacement | |||||
|
904670501801
|
904670501801
90467-05018-22 New Genuine Part |
90467-05018-22 |
US $1.51 |
||
