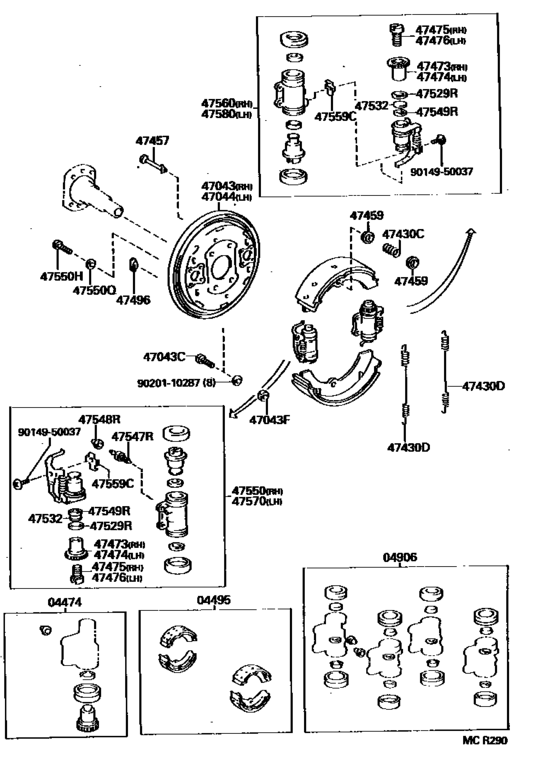

Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04474
|
04474
04474-36100 Cylinder Kit, Rear Wheel[03.1993 - 05.1995] BU60..N 右側; BU60..D ｱﾘ(ｵ-ﾄ ｱｼﾔﾞｽﾀ),右側 |
04474-36100 |
US $47.47 |
||
| replacement | |||||
|
04474
|
04474
04474-36101 Cylinder Kit, Rear Wheel[03.1993 - 05.1995] BU60..N 右側; BU60..D ｱﾘ(ｵ-ﾄ ｱｼﾔﾞｽﾀ),右側 |
04474-36101 |
US $47.61 |
||
|
04474
|
04474
04474-36110 Cylinder Kit, Rear Wheel[03.1993 - 05.1995] BU60..N 左側; BU60..D ｱﾘ(ｵ-ﾄ ｱｼﾔﾞｽﾀ),左側 |
04474-36110 |
US $47.47 |
||
| replacement | |||||
|
04474
|
04474
04474-36111 Cylinder Kit, Rear Wheel[03.1993 - 05.1995] BU60..N 左側; BU60..D ｱﾘ(ｵ-ﾄ ｱｼﾔﾞｽﾀ),左側 |
04474-36111 |
US $47.61 |
||
|
04495
|
04495
04494-36090 Shoe Kit, Front Brake[01.1986 - 11.1989] BU60 |
04494-36090 |
US $221.31 |
||
| replacement | |||||
|
04495
|
04495
04494-36150 Shoe Kit, Brake[01.1986 - 11.1989] BU60 |
04494-36150 |
US $244.61 |
||
|
04495
|
04495
04494-36150 Shoe Kit, Brake[08.1990 - 05.1995] BU60 マーク ＡＫ ＬＡ５１４ |
04494-36150 |
US $244.61 |
||
|
04495
|
04495
04495-25050 Shoe Kit, Front Brake[11.1989 - 08.1990] BU60 マーク ＮＢＫ ＬＮ５０３ |
04495-25050 |
US $170.35 |
||
| replacement | |||||
|
04495
|
04495
04495-25130 Shoe Kit, Rear Brake[11.1989 - 08.1990] BU60 マーク ＮＢＫ ＬＮ５０３ |
04495-25130 |
US $159.12 |
||
|
04495
|
04495
04496-36090
Shoe Kit, Front Brake
[01.1986 - 05.1988] BU60 REBUILT |
04496-36090 |
— | ||
|
04906
|
04906
04906-36130 Cup Kit, Rear Wheel Cylinder[01.1986 - 08.1987] BU60 W/AUTO ADJUSTER |
04906-36130 |
US $29.85 |
||
|
04906
|
04906
04906-36150 Cup Kit, Rear Wheel Cylinder[08.1987 - 05.1988] BU60 W/AUTO ADJUSTER |
04906-36150 |
US $29.85 |
||
|
04906
|
04906
04906-36210 Cup Kit, Rear Wheel Cylinder[03.1993 - 05.1995] BU60..N; BU60..D ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
04906-36210 |
US $30.43 |
||
| replacement | |||||
|
04906
|
04906
04906-36211 Cup Kit, Rear Wheel Cylinder[03.1993 - 05.1995] BU60..N; BU60..D ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
04906-36211 |
US $18 |
||
|
47043
|
47043
47043-36100 Plate Sub-Assy, Brake Backing, Rear Rh[01.1986 - 05.1995] BU60 |
47043-36100 |
US $82.99 |
||
| replacements | |||||
|
47043
|
47043
47043-25110 Plate Sub-Assy, Brake Backing, Rear Rh[01.1986 - 05.1995] BU60 |
47043-25110 |
US $56.64 |
||
|
47043
|
47043
47492-28010 Plug, Shoe Inspection(For Rear Brake)[01.1986 - 05.1995] BU60 |
47492-28010 |
from US $1.48 |
||
|
47043C
|
47043C
90114-10019
Bolt(For Backing Plate To Rear Axle Housing Setting)
[01.1986 - 05.1988] BU60 ＊１０−１．２５ＰＸ３１−２１．５ |
90114-10019 |
— | ||
| replacement | |||||
|
47043C
|
47043C
90114-10063 Bolt, No.1(For Rear Brake Backing Plate Rh)[01.1986 - 05.1988] BU60 ＊１０−１．２５ＰＸ３１−２１．５ |
90114-10063 |
US $1.79 |
||
|
47043F
|
47043F
90170-10178
Nut(For Backing Plate To Rear Axle Housing Setting)
[01.1986 - 05.1995] BU60 |
90170-10178 |
— | ||
| replacement | |||||
|
47043F
|
47043F
94130-01002 Nut, Booster Sleeve Cylinder[01.1986 - 05.1995] BU60 |
94130-01002 |
from US $0.91 |
||
|
47044
|
47044
47044-36100
Plate Sub-Assy, Brake Backing, Rear Lh
[01.1986 - 05.1995] BU60 |
47044-36100 |
— | ||
| replacements | |||||
|
47044
|
47044
47044-25080 Plate Sub-Assy, Brake Backing, Rear Lh[01.1986 - 05.1995] BU60 |
47044-25080 |
US $66.04 |
||
|
47044
|
47044
47492-28010 Plug, Shoe Inspection(For Rear Brake)[01.1986 - 05.1995] BU60 |
47492-28010 |
from US $1.48 |
||
|
47430C
|
47430C
90501-20012 Spring(For Front Brake Shoe Hold Down)[01.1986 - 05.1995] BU60 |
90501-20012 |
from US $2.15 |
||
|
47430D
|
47430D
90507-29002 Spring, Tension(For Front Brake Shoe Return)[01.1986 - 05.1995] BU60 |
90507-29002 |
US $4.13 |
||
|
47457
|
47457
47447-20010 Pin, Shoe Hold Down Spring(For Front Brake)[01.1986 - 05.1995] BU60 |
47447-20010 |
from US $1.33 |
||
|
47459
|
47459
47449-30020 Cup, Shoe Hold Down Spring(For Front Brake)[01.1986 - 05.1995] BU60 |
47449-30020 |
from US $1.27 |
||
|
47473
|
47473
47506-36010 Nut, Rear Wheel Cylinder Adjusting, Rh(For Rear Brake)[01.1986 - 05.1988] BU60 W/AUTO ADJUSTER |
47506-36010 |
US $9.03 |
||
|
47474
|
47474
47507-36010 Nut, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)[01.1986 - 05.1988] BU60 W/AUTO ADJUSTER |
47507-36010 |
US $9.03 |
||
|
47475
|
47475
47553-36070 Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)[01.1986 - 05.1988] BU60 W/AUTO ADJUSTER |
47553-36070 |
US $3.03 |
||
|
47476
|
47476
47554-36070 Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)[01.1986 - 05.1988] BU60 W/AUTO ADJUSTER |
47554-36070 |
from US $3.20 |
||
|
47496
|
47496
47491-36010
Plug, Hole(For Front Brake)
[01.1986 - 05.1988] BU60 |
47491-36010 |
— | ||
| replacement | |||||
|
47496
|
47496
47491-36020 Plug, Hole(For Rear Brake)[01.1986 - 05.1988] BU60 |
47491-36020 |
US $3.05 |
||
|
47529R
|
47529R
47529-36010 Seal, Front Wheel Brake Cylinder Adjust Dust[01.1986 - 05.1988] BU60 W/AUTO ADJUSTER |
47529-36010 |
US $4.22 |
||
|
47532
|
47532
47532-36020 Insert, Rear Wheel Cylinder Piston[08.1987 - 05.1988] BU60 W/AUTO ADJUSTER |
47532-36020 |
US $3.49 |
||
|
47547R
|
47547R
47547-12010 Plug, Bleeder(For Release Cylinder)[01.1986 - 05.1995] BU60 |
47547-12010 |
from US $2.26 |
||
|
47548R
|
47548R
31478-30010 Bleeder Plug Cap[01.1986 - 05.1995] BU60 |
31478-30010 |
from US $1.43 |
||
|
47549R
|
47549R
47549-36010 Seat, Front Brake Automatic Adjust Nut[01.1986 - 05.1988] BU60 W/AUTO ADJUSTER |
47549-36010 |
US $2.04 |
||
|
47550
|
47550
47550-36130
Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
[01.1986 - 08.1987] BU60 W/AUTO ADJUSTER |
47550-36130 |
— | ||
|
47550
|
47550
47550-36170 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)[08.1987 - 05.1988] BU60 W/AUTO ADJUSTER |
47550-36170 |
US $84.45 |
||
|
47550
|
47550
47550-36171 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)[03.1993 - 05.1995] BU60..N; BU60..D ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
47550-36171 |
US $51.54 |
||
|
47550H
|
47550H
90101-08081 Bolt(For Front Wheel Cylinder)[01.1986 - 05.1995] BU60 |
90101-08081 |
US $1.79 |
||
|
47550Q
|
47550Q
90201-08002 Washer(For Front Wheel Cylinder)[01.1986 - 05.1995] BU60 |
90201-08002 |
from US $1.39 |
||
|
47559C
|
47559C
47559-36010 Sping, Front Automatic Adjust Lever Support[01.1986 - 05.1988] BU60 W/AUTO ADJUSTER |
47559-36010 |
from US $3.32 |
||
|
47560
|
47560
47560-36130
Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)
[01.1986 - 08.1987] BU60 W/AUTO ADJUSTER |
47560-36130 |
— | ||
|
47560
|
47560
47560-36170 Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)[08.1987 - 05.1988] BU60 W/AUTO ADJUSTER |
47560-36170 |
US $84.45 |
||
|
47560
|
47560
47560-36171 Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)[03.1993 - 05.1995] BU60..N; BU60..D ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
47560-36171 |
US $66.19 |
||
|
47570
|
47570
47570-36130
Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
[01.1986 - 08.1987] BU60 W/AUTO ADJUSTER |
47570-36130 |
— | ||
|
47570
|
47570
47570-36170 Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)[08.1987 - 05.1988] BU60 W/AUTO ADJUSTER |
47570-36170 |
US $84.45 |
||
|
47570
|
47570
47570-36171 Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)[03.1993 - 05.1995] BU60..N; BU60..D ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
47570-36171 |
US $66.19 |
||
|
47580
|
47580
47580-36130
Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)
[01.1986 - 08.1987] BU60 W/AUTO ADJUSTER |
47580-36130 |
— | ||
|
47580
|
47580
47580-36170 Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)[08.1987 - 03.1993] BU60 W/AUTO ADJUSTER |
47580-36170 |
US $84.45 |
||
|
47580
|
47580
47580-36171 Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)[03.1993 - 05.1995] BU60..N; BU60..D ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
47580-36171 |
US $66.19 |
||
|
9014950037
|
9014950037
90149-50037 SCREW |
90149-50037 |
US $1.43 |
||
|
9020110287
|
9020110287
90201-10287 Washer(For Front Wheel Cylinder) |
90201-10287 |
US $3.05 |
||
