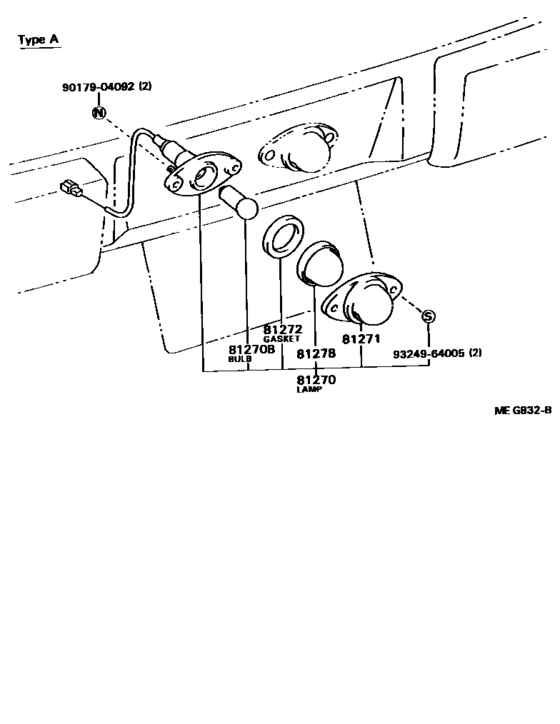

Rear License Plate Lamp ([01.1990 - 08.1988] (8808- )D ; (9001-8808)) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81270
|
81270
81270-90F00 Lamp Assy, License Plate[01.1986 - 05.1988] BU60 RH,TYPE B |
81270-90F00 |
US $66.83 |
||
|
81270
|
81270
81270-90F01 Lamp Assy, License Plate[01.1986 - 05.1988] BU60 TYPE A |
81270-90F01 |
US $34.65 |
||
|
81270
|
81270
81270-90F02 Lamp Assy, License Plate[08.1988 - 05.1995] BU60..N タイプ Ｂ |
81270-90F02 |
US $37.84 |
||
|
81270
|
81270
81690-90F00 Lamp Assy, License Plate[01.1986 - 05.1988] BU60 LH,TYPE B |
81690-90F00 |
US $66.83 |
||
|
81270B
|
81270B
90981-16016 Bulb[01.1986 - 05.1988] BU60 ２４Ｖ ５Ｗ,24V 5W,TYPE B |
90981-16016 |
from US $3.23 |
||
|
81270B
|
81270B
99132-11120 Bulb(For Map Lamp)[01.1986 - 05.1995] BU60 12V 12W,TYPE A |
99132-11120 |
US $2.77 |
||
|
81271
|
81271
81271-10010 Lens, License Plate Lamp[02.1987 - 05.1988] BU60 TYPE A |
81271-10010 |
US $12.19 |
||
|
81271
|
81271
81271-10011
Lens, License Plate Lamp
[01.1986 - 02.1987] BU60 TYPE A |
81271-10011 |
— | ||
| replacement | |||||
|
81271
|
81271
81271-10010 Lens, License Plate Lamp[01.1986 - 02.1987] BU60 TYPE A |
81271-10010 |
US $12.19 |
||
|
81271
|
81271
81271-17010 Lens, License Plate Lamp[08.1988 - 05.1995] BU60..N タイプ Ｂ |
81271-17010 |
US $11.83 |
||
|
81272
|
81272
81272-10010 Gasket, License Plate Lamp Lens[01.1986 - 05.1988] BU60 TYPE A |
81272-10010 |
US $3.76 |
||
|
81278
|
81278
81271-16030 Cover, License Plate Lamp[01.1986 - 05.1988] BU60..N RH,TYPE B |
81271-16030 |
US $42.22 |
||
| replacement | |||||
|
81278
|
81278
81271-16090 Lens, License Plate Lamp[01.1986 - 05.1988] BU60..N RH,TYPE B |
81271-16090 |
US $18.64 |
||
|
81278
|
81278
81278-10011 Cover, License Plate Lamp[05.1988 - 08.1988] BU60 タイプ Ａ |
81278-10011 |
US $6.81 |
||
|
81278
|
81278
81278-12230
Cover, License Plate Lamp
[08.1988 - 05.1995] BU60..N タイプ Ｂ |
81278-12230 |
— | ||
|
81278
|
81278
81278-27010 Cover, License Plate Lamp[01.1986 - 05.1988] BU60 TYPE A |
81278-27010 |
US $8.74 |
||
|
81278
|
81278
81691-16020
Lens, License Plate Lamp
[01.1986 - 05.1988] BU60..N LH,TYPE B |
81691-16020 |
— | ||
|
9017904092
|
9017904092
90179-04092
NUT
|
90179-04092 |
— | ||
| replacement | |||||
|
9017904092
|
9017904092
90179-04001 NUT |
90179-04001 |
from US $1.16 |
||
|
9324964005
|
9324964005
93249-64005 New Genuine Part |
93249-64005 |
US $1.43 |
||
