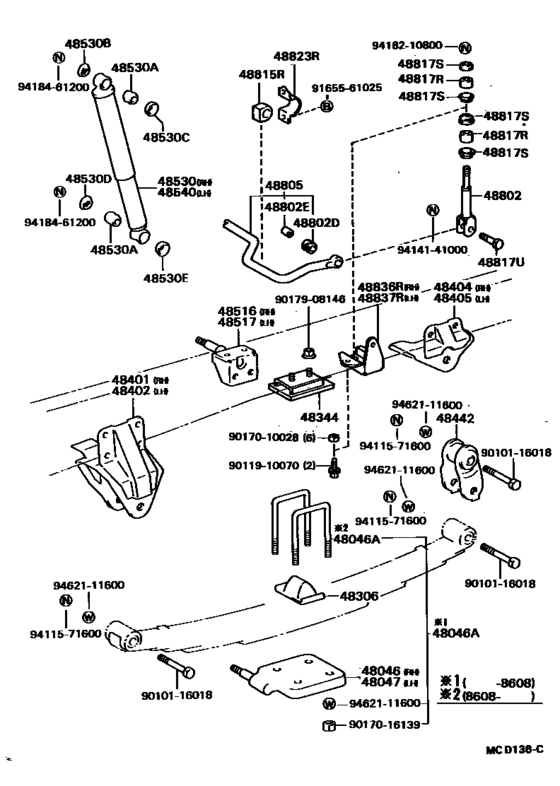

Rear Spring & Shock Absorber ([01.1986 - 08.1987] (8601-8708)) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48046
|
48046
48046-36201 Seat Sub-Assy, Spring U Bolt, Rh[01.1986 - 05.1995] BU60 |
48046-36201 |
US $90.27 |
||
|
48046A
|
48046A
90117-16011 Bolt, U(For Rear Spring)[08.1988 - 05.1995] BU60 長さ＝２２０ |
90117-16011 |
US $39.82 |
||
|
48046A
|
48046A
90117-16014 Bolt, U(For Rear Spring)[08.1986 - 05.1988] BU60 長さ＝２２５ |
90117-16014 |
US $20.82 |
||
|
48046A
|
48046A
90118-16238 Bolt, U(For Rear Spring)[01.1986 - 08.1986] BU60 長さ＝２２５ |
90118-16238 |
US $45.43 |
||
| replacement | |||||
|
48046A
|
48046A
90117-16014 Bolt, U(For Rear Spring)[01.1986 - 08.1986] BU60 長さ＝２２５ |
90117-16014 |
US $20.82 |
||
|
48047
|
48047
48047-36201 Seat Sub-Assy, Spring U Bolt, Lh[01.1986 - 05.1995] BU60 |
48047-36201 |
US $90.27 |
||
|
48306
|
48306
48306-36040 Bumper Sub-Assy, Rear Spring[01.1986 - 06.1986] BU60 |
48306-36040 |
US $33.63 |
||
| replacement | |||||
|
48306
|
48306
48306-36041 Bumper Sub-Assy, Rear Spring[01.1986 - 06.1986] BU60 |
48306-36041 |
US $33.78 |
||
|
48306
|
48306
48306-36041 Bumper Sub-Assy, Rear Spring[06.1986 - 08.1988] BU60 |
48306-36041 |
US $33.78 |
||
|
48306
|
48306
48306-36042 Bumper Sub-Assy, Rear Spring[08.1988 - 05.1995] BU60 |
48306-36042 |
US $37.13 |
||
|
48344
|
48344
48344-36230 Stopper, Bumper, Rear[01.1986 - 08.1988] BU60 |
48344-36230 |
US $41.64 |
||
|
48344
|
48344
48344-36320 Stopper, Bumper, Rear[08.1988 - 05.1995] BU60 |
48344-36320 |
US $60.72 |
||
|
48401
|
48401
48414-36180 Bracket Sub-Assy, Rear Spring, Front Rh[01.1986 - 08.1987] BU60 |
48414-36180 |
US $142.69 |
||
|
48401
|
48401
48414-36250 Bracket Sub-Assy, Rear Spring, Front Rh[08.1987 - 05.1995] BU60 |
48414-36250 |
US $110.66 |
||
|
48402
|
48402
48414-36180 Bracket Sub-Assy, Rear Spring, Front Rh[01.1986 - 08.1987] BU60 |
48414-36180 |
US $142.69 |
||
|
48402
|
48402
48414-36250 Bracket Sub-Assy, Rear Spring, Front Rh[08.1987 - 05.1995] BU60 |
48414-36250 |
US $110.66 |
||
|
48404
|
48404
48416-36200 Bracket Sub-Assy, Rear Spring, Rear Rh[01.1986 - 08.1987] BU60 |
48416-36200 |
US $94.64 |
||
|
48404
|
48404
48416-36240 Bracket Sub-Assy, Rear Spring, Rear Rh[08.1987 - 05.1995] BU60 |
48416-36240 |
US $46.88 |
||
|
48405
|
48405
48417-36080 Bracket Sub-Assy, Rear Spring, Rear Lh[01.1986 - 08.1987] BU60 |
48417-36080 |
US $94.64 |
||
|
48405
|
48405
48417-36120 Bracket Sub-Assy, Rear Spring, Rear Lh[08.1987 - 05.1995] BU60 |
48417-36120 |
US $46.88 |
||
|
48442
|
48442
48042-36021 Shackle, Spring, No.1[01.1986 - 08.1987] BU60 |
48042-36021 |
US $80.08 |
||
|
48516
|
48516
48505-36050 Bracket, Rear Shock Absorber, Upper Rh[01.1986 - 05.1995] BU60 |
48505-36050 |
US $46.88 |
||
|
48517
|
48517
48505-36050 Bracket, Rear Shock Absorber, Upper Rh[01.1986 - 05.1995] BU60 |
48505-36050 |
US $46.88 |
||
|
48530
|
48530
48531-36130 Absorber Assy, Shock, Rear Rh[01.1986 - 05.1995] BU60 マーク ４８５３１−３６１３０ |
48531-36130 |
US $99.01 |
||
|
48530A
|
48530A
90385-16004 Cushion, Front Shock Absorber[01.1986 - 03.1987] BU60 |
90385-16004 |
from US $3.12 |
||
|
48530A
|
48530A
90385-16009 Cushion, Shock Absorber[03.1987 - 01.1992] BU60 |
90385-16009 |
from US $2.51 |
||
|
48530A
|
48530A
90385-16011 Cushion, Shock Absorber[01.1992 - 05.1995] BU60 |
90385-16011 |
US $6.81 |
||
|
48530B
|
48530B
90948-03003 Retainer, Cushion, No.1(For Front Shock Absorber)[01.1986 - 05.1995] BU60 |
90948-03003 |
from US $1.22 |
||
|
48530C
|
48530C
90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)[01.1986 - 05.1995] BU60 |
90948-03004 |
from US $1.37 |
||
|
48530D
|
48530D
90948-03003 Retainer, Cushion, No.1(For Front Shock Absorber)[01.1986 - 05.1995] BU60 |
90948-03003 |
from US $1.22 |
||
|
48530E
|
48530E
90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)[01.1986 - 05.1995] BU60 |
90948-03004 |
from US $1.37 |
||
|
48540
|
48540
48531-36130 Absorber Assy, Shock, Rear Rh[01.1986 - 05.1995] BU60 マーク ４８５３１−３６１３０ |
48531-36130 |
US $99.01 |
||
|
48802
|
48802
48802-36040 Link Sub-Assy, Stabilizer[01.1986 - 05.1995] BU60 |
48802-36040 |
US $11.65 |
||
| replacements | |||||
|
48802
|
48802
48802-36041 Link Sub-Assy, Stabilizer[01.1986 - 05.1995] BU60 |
48802-36041 |
US $11.79 |
||
|
48802
|
48802
90948-02167 Retainer, Cushion, No.2(For Front Stabilizer Bar)[01.1986 - 05.1995] BU60 |
90948-02167 |
US $3.58 |
||
|
48802D
|
48802D
90385-13004 Bush(For Front Suspension Torque Arm)[01.1986 - 05.1995] BU60 |
90385-13004 |
from US $3.25 |
||
|
48802E
|
48802E
90560-10044 Collar(For Front Suspension Torque Arm)[01.1986 - 05.1995] BU60 |
90560-10044 |
from US $1.94 |
||
|
48805
|
48805
48805-36021 Bar Sub-Assy, Rear Stabilizer[05.1988 - 08.1988] BU60 |
48805-36021 |
US $247.52 |
||
| replacements | |||||
|
48805
|
48805
48812-36021 Bar, Stabilizer, Rear[05.1988 - 08.1988] BU60 |
48812-36021 |
US $247.52 |
||
|
48805
|
48805
90385-13004 Bush(For Front Suspension Torque Arm)[05.1988 - 08.1988] BU60 |
90385-13004 |
from US $3.25 |
||
|
48805
|
48805
90560-10044 Collar(For Front Suspension Torque Arm)[05.1988 - 08.1988] BU60 |
90560-10044 |
from US $1.94 |
||
|
48805
|
48805
48805-36022 Bar Sub-Assy, Rear Stabilizer[08.1988 - 05.1995] BU60 |
48805-36022 |
US $260.62 |
||
|
48815R
|
48815R
48818-36020 Bush, Stabilizer(For Rear)[01.1986 - 05.1995] BU60 |
48818-36020 |
US $11.79 |
||
| replacements | |||||
|
48815R
|
48815R
48815-37060 Bush, Stabilizer, Rear[01.1986 - 05.1995] BU60 |
48815-37060 |
US $13.44 |
||
|
48815R
|
48815R
48823-37011 Cover, Front Stabilizer Bracket[01.1986 - 05.1995] BU60 |
48823-37011 |
US $22.18 |
||
|
48817R
|
48817R
48817-36010 Cushion, Front Stabilizer[01.1986 - 05.1995] BU60 |
48817-36010 |
US $5.38 |
||
|
48817S
|
48817S
90948-02015 Retainer, Cushion, No.1(For Front Stabilizer Bar)[01.1986 - 05.1988] BU60 T=1.2 |
90948-02015 |
from US $0.87 |
||
|
48817S
|
48817S
90948-02032 Retainer, Cushion, No.1(For Front Stabilizer Bar)[01.1986 - 05.1988] BU60 T=1.6 |
90948-02032 |
from US $2.13 |
||
|
48817U
|
48817U
91121-71045
Bolt(For Stabilizer)
[01.1986 - 05.1995] BU60 |
91121-71045 |
— | ||
| replacement | |||||
|
48817U
|
48817U
91512-61045 Bolt[01.1986 - 05.1995] BU60 |
91512-61045 |
US $2.51 |
||
|
48823R
|
48823R
48823-36030 Cover, Rear Stabilizer Bracket[01.1986 - 05.1995] BU60 |
48823-36030 |
US $27.81 |
||
| replacements | |||||
|
48823R
|
48823R
48815-37060 Bush, Stabilizer, Rear[01.1986 - 05.1995] BU60 |
48815-37060 |
US $13.44 |
||
|
48823R
|
48823R
48823-37011 Cover, Front Stabilizer Bracket[01.1986 - 05.1995] BU60 |
48823-37011 |
US $22.18 |
||
|
48836R
|
48836R
48836-36021 Bracket, Rear Stabilizer End, Rh[05.1988 - 08.1988] BU60 |
48836-36021 |
US $40.33 |
||
|
48836R
|
48836R
48836-36022 Bracket, Rear Stabilizer End, Rh[08.1988 - 02.1989] BU60 |
48836-36022 |
US $33.20 |
||
| replacement | |||||
|
48836R
|
48836R
48836-36023 Bracket, Rear Stabilizer End, Rh[08.1988 - 02.1989] BU60 |
48836-36023 |
US $33.05 |
||
|
48836R
|
48836R
48836-36023 Bracket, Rear Stabilizer End, Rh[02.1989 - 05.1995] BU60 |
48836-36023 |
US $33.05 |
||
|
48837R
|
48837R
48836-36021 Bracket, Rear Stabilizer End, Rh[05.1988 - 08.1988] BU60 |
48836-36021 |
US $40.33 |
||
|
48837R
|
48837R
48836-36022 Bracket, Rear Stabilizer End, Rh[08.1988 - 02.1989] BU60 |
48836-36022 |
US $33.20 |
||
| replacement | |||||
|
48837R
|
48837R
48836-36023 Bracket, Rear Stabilizer End, Rh[08.1988 - 02.1989] BU60 |
48836-36023 |
US $33.05 |
||
|
48837R
|
48837R
48836-36023 Bracket, Rear Stabilizer End, Rh[02.1989 - 05.1995] BU60 |
48836-36023 |
US $33.05 |
||
|
9010116018
|
9010116018
90101-16018 New Genuine Part |
90101-16018 |
US $9.17 |
||
|
9011910070
|
9011910070
90119-10070 New Genuine Part |
90119-10070 |
US $1.61 |
||
|
9017010028
|
9017010028
90170-10028 New Genuine Part |
90170-10028 |
US $2.51 |
||
|
9017016139
|
9017016139
90170-16139 Nut(For Rear Spring U Bolt) |
90170-16139 |
US $5.38 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9165561025
|
9165561025
91655-61025
Bolt, No.1 (For Center Support Bearing)
|
91655-61025 |
— | ||
| replacement | |||||
|
9165561025
|
9165561025
91651-61020 Bolt, No.1 (For Center Support Bearing) |
91651-61020 |
US $2.33 |
||
|
9411571600
|
9411571600
94115-71600
Nut(For Front Suspension Lower Arm)
|
94115-71600 |
— | ||
| replacement | |||||
|
9411571600
|
9411571600
94130-01602 Nut(For Dust Cover To Steering Knuckle Arm Setting) |
94130-01602 |
from US $0.97 |
||
|
9414141000
|
9414141000
94141-41000 NUT |
94141-41000 |
US $3.23 |
||
|
9418210800
|
9418210800
94182-10800 Nut |
94182-10800 |
from US $1.29 |
||
|
9418461200
|
9418461200
94184-61200 Nut, Lock(For Power Steering Control Valve) |
94184-61200 |
from US $1.01 |
||
|
9462111600
|
9462111600
94621-11600 Washer(For Rear Spring U Bolt) |
94621-11600 |
US $5.73 |
||
