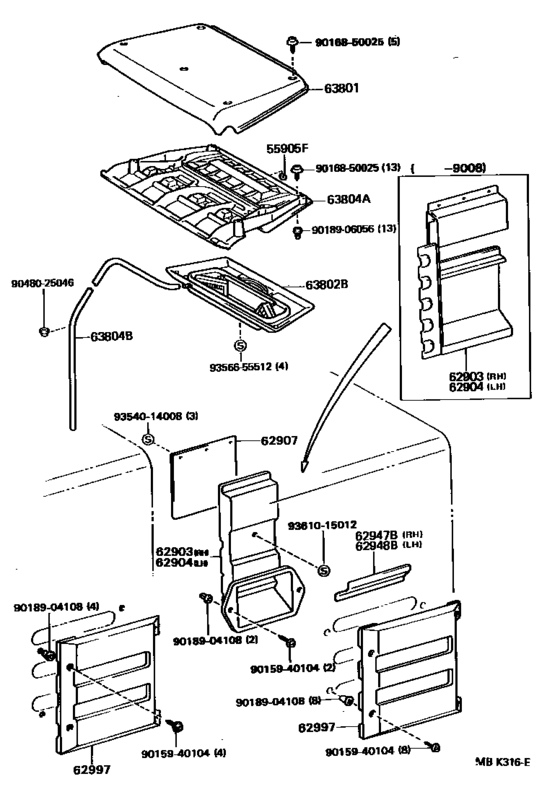

Rear Ventilator & Roof Ventilator ([01.1986 - ] (8601- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55905F
|
55905F
55905-10110 Knob, Heater Control[01.1986 - 05.1995] BU60 |
55905-10110 |
US $5.10 |
||
|
62903
|
62903
62903-90D01 Duct Sub-Assy, Quarter Ventilator, Rh[01.1986 - 08.1990] BU60 |
62903-90D01 |
US $152.88 |
||
|
62903
|
62903
62903-90D02 Duct Sub-Assy, Quarter Ventilator, Rh[08.1990 - 05.1995] BU60..CBU |
62903-90D02 |
US $35.53 |
||
|
62904
|
62904
62903-90D02 Duct Sub-Assy, Quarter Ventilator, Rh[08.1990 - 02.1993] BU60..CBU |
62903-90D02 |
US $35.53 |
||
|
62904
|
62904
62904-90D02 Duct Sub-Assy, Quarter Ventilator, Lh[01.1986 - 08.1990] BU60 |
62904-90D02 |
US $152.88 |
||
|
62907
|
62907
62935-90D01 Butterfly Sub-Assy, Vent[01.1986 - 08.1990] BU60 |
62935-90D01 |
US $15.87 |
||
|
62947B
|
62947B
62947-90D00 Shield, Quarter Vent Duct Water, Rh[01.1986 - 08.1987] BU60 |
62947-90D00 |
US $15.29 |
||
|
62948B
|
62948B
62948-90D00 Shield, Quarter Vent Duct Water, Lh[01.1986 - 08.1987] BU60 |
62948-90D00 |
US $15.29 |
||
|
62997
|
62997
62997-90901 Cover, Quarter Vent Hole[06.1993 - 05.1995] BU60..N; BU60..D..CBU |
62997-90901 |
US $43.53 |
||
|
62997
|
62997
62997-90D00 Cover, Quarter Vent Hole[08.1987 - 12.1987] BU60 |
62997-90D00 |
US $43.83 |
||
| replacement | |||||
|
62997
|
62997
62997-90900 Cover, Quarter Vent Hole[08.1987 - 12.1987] BU60 |
62997-90900 |
US $43.24 |
||
|
62997
|
62997
62997-90D00-08 Cover, Quarter Vent Hole[12.1987 - 05.1988] BU60 WHITE,WHITE |
62997-90D00-08 |
US $43.83 |
||
| replacement | |||||
|
62997
|
62997
62997-90900 Cover, Quarter Vent Hole[12.1987 - 05.1988] BU60 WHITE,WHITE |
62997-90900 |
US $43.24 |
||
|
62997
|
62997
62997-90D00-18 Cover, Quarter Vent Hole[12.1987 - 05.1988] BU60 CREAM,CREAM |
62997-90D00-18 |
US $43.83 |
||
| replacement | |||||
|
62997
|
62997
62997-90900 Cover, Quarter Vent Hole[12.1987 - 05.1988] BU60 CREAM,CREAM |
62997-90900 |
US $43.24 |
||
|
62997
|
62997
62997-90D01-08 Cover, Quarter Vent Hole[08.1990 - 02.1993] BU60 WHITE,WHITE,045 |
62997-90D01-08 |
US $43.24 |
||
| replacement | |||||
|
62997
|
62997
62997-90901 Cover, Quarter Vent Hole[08.1990 - 02.1993] BU60 WHITE,WHITE,045 |
62997-90901 |
US $43.53 |
||
|
62997
|
62997
62997-90D01-18 Cover, Quarter Vent Hole[02.1993 - 06.1993] BU60..N CREAM,9A7 |
62997-90D01-18 |
US $43.24 |
||
| replacement | |||||
|
62997
|
62997
62997-90901 Cover, Quarter Vent Hole[02.1993 - 06.1993] BU60..N CREAM,9A7 |
62997-90901 |
US $43.53 |
||
|
63801
|
63801
63801-95401
Cover Sub-Assy, Roof Ventilator, Front
[01.1986 - 05.1995] BU60 |
63801-95401 |
— | ||
|
63802B
|
63802B
63802-95400-03 Cover Sub-Assy, Roof Ventilator, Inner[01.1986 - 05.1988] BU60 GRAY,GRAY |
63802-95400-03 |
US $60.42 |
||
| replacement | |||||
|
63802B
|
63802B
63802-95400-B0 Cover Sub-Assy, Roof Ventilator, No.2ROOF VENTILATOR, NO.2 [01.1986 - 05.1988] BU60 GRAY,GRAY |
63802-95400-B0 |
US $60.28 |
||
|
63802B
|
63802B
63802-95400-B6 Cover Sub-Assy, Roof Ventilator, Inner[09.1991 - 05.1995] BU60 GRAY,TRIM4# |
63802-95400-B6 |
US $60.42 |
||
| replacement | |||||
|
63802B
|
63802B
63802-95400-B0 Cover Sub-Assy, Roof Ventilator, No.2ROOF VENTILATOR, NO.2 [09.1991 - 05.1995] BU60 GRAY,TRIM4# |
63802-95400-B0 |
US $60.28 |
||
|
63804A
|
63804A
63804-95400 Housing Sub-Assy, Roof Ventilator[01.1986 - 05.1995] BU60 |
63804-95400 |
US $216.94 |
||
|
63804B
|
63804B
63849-90D00 Hose, Drain(For Roof Ventilator)[01.1986 - 12.1988] BU60 |
63849-90D00 |
US $23.44 |
||
| replacement | |||||
|
63804B
|
63804B
63849-90F00 Hose, Drain(For Roof Ventilator)[01.1986 - 12.1988] BU60 |
63849-90F00 |
US $23.30 |
||
|
63804B
|
63804B
63849-90F00 Hose, Drain(For Roof Ventilator)[12.1988 - 05.1995] BU60 |
63849-90F00 |
US $23.30 |
||
|
9015940104
|
9015940104
90159-40104
New Genuine Part
|
90159-40104 |
— | ||
|
9016850025
|
9016850025
90168-50025 New Genuine Part |
90168-50025 |
US $1.60 |
||
|
9018904108
|
9018904108
90189-04108 New Genuine Part |
90189-04108 |
US $1.65 |
||
|
9018906056
|
9018906056
90189-06056 New Genuine Part |
90189-06056 |
US $2.33 |
||
|
9048025046
|
9048025046
90480-25046 Wire, Drain Hose(For Cooler) |
90480-25046 |
US $5.24 |
||
|
9354014008
|
9354014008
93540-14008 New Genuine Part |
93540-14008 |
US $1.61 |
||
|
9356655512
|
9356655512
93566-55512 SCREW |
93566-55512 |
US $1.60 |
||
| replacement | |||||
|
9356655512
|
9356655512
93568-55012 SCREW |
93568-55012 |
US $1.08 |
||
|
9361015012
|
9361015012
93610-15012 New Genuine Part |
93610-15012 |
US $1.05 |
||
