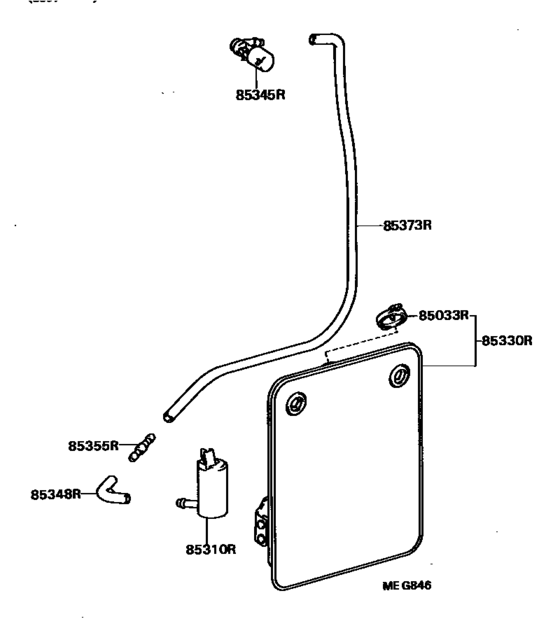

Rear Washer ([01.1986 - ] (8601- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85033R
|
85033R
85033-22010
Cap Assy, Windshield Washer
[01.1986 - 08.1987] BU60 |
85033-22010 |
— | ||
|
85310R
|
85310R
85310-90B00 Motor And Pump Assy, Windshield Washer[01.1986 - 08.1987] BU60 |
85310-90B00 |
US $47.52 |
||
|
85330R
|
85330R
85331-90F00
Jar Assy, Rear Washer
[01.1986 - 08.1987] BU60 |
85331-90F00 |
— | ||
|
85345R
|
85345R
85035-90D00
Nozzle Sub-Assy, Rear Washer
[01.1986 - 08.1987] BU60 |
85035-90D00 |
— | ||
| replacement | |||||
|
85345R
|
85345R
85035-95J00
Nozzle Sub-Assy, Rear Washer
[01.1986 - 08.1987] BU60 |
85035-95J00 |
— | ||
|
85348R
|
85348R
85355-22070
Joint, Rear Washer Hose, No.1
[01.1986 - 08.1987] BU60 |
85355-22070 |
— | ||
|
85355R
|
85355R
85031-12250
Valve Sub-Assy, Washer
[01.1986 - 08.1987] BU60 |
85031-12250 |
— | ||
|
85373R
|
85373R
90446-06013 Hose, Windshield Washer (From Motor To Joint)[01.1986 - 08.1987] BU60 長さ＝４５０ |
90446-06013 |
from US $0.70 |
||
