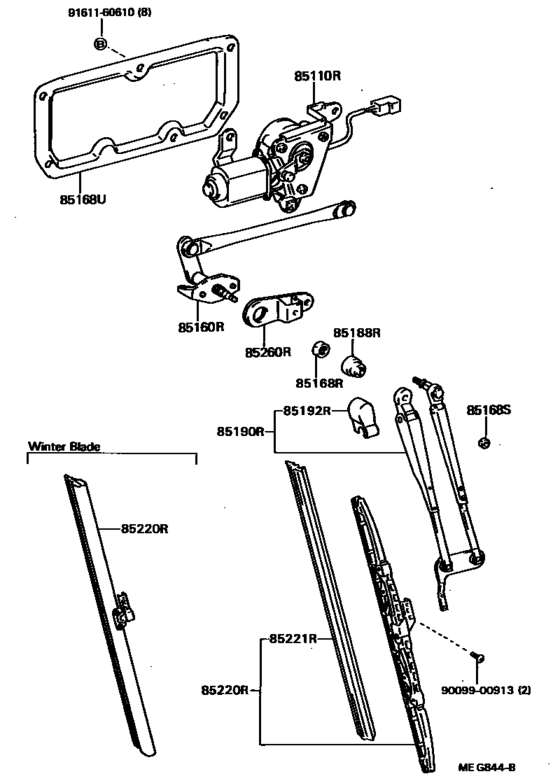

Rear Wiper ([01.1986 - ] (8601- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110R
|
85110R
85120-90F00 Motor Assy, Rear Wiper[01.1986 - 08.1987] BU60 |
85120-90F00 |
US $282.46 |
||
|
85160R
|
85160R
85160-90F01 Link Assy, Rear Wiper[01.1986 - 08.1987] BU60 |
85160-90F01 |
US $104.83 |
||
|
85168R
|
85168R
85186-90D00 Nut, Rear Wiper Link Pivot, No.1[01.1986 - 08.1987] BU60 |
85186-90D00 |
US $3.79 |
||
|
85168S
|
85168S
90179-06158 Nut, Rear Wiper Link Pivot, No.2[01.1986 - 08.1987] BU60 |
90179-06158 |
from US $0.95 |
||
|
85168U
|
85168U
85298-90D00 Cover, Rear Wiper[01.1986 - 08.1987] BU60 |
85298-90D00 |
US $29.27 |
||
|
85188R
|
85188R
85178-90D00 Cap, Wiper Link[01.1986 - 08.1987] BU60 |
85178-90D00 |
US $4.89 |
||
|
85190R
|
85190R
85190-90F01 Arm Assy, Rear Wiper[01.1986 - 08.1987] BU60 |
85190-90F01 |
US $125.22 |
||
|
85192R
|
85192R
85192-14020
Cover, Rear Wiper Arm
[01.1986 - 08.1987] BU60 |
85192-14020 |
— | ||
| replacement | |||||
|
85192R
|
85192R
85192-13060 Cover, Rear Wiper Arm[01.1986 - 08.1987] BU60 |
85192-13060 |
from US $5.11 |
||
|
85220R
|
85220R
85220-16530 Blade Assy, Rear Wiper[01.1986 - 08.1987] BU60 |
85220-16530 |
US $36.55 |
||
| replacement | |||||
|
85220R
|
85220R
85242-90D00 Blade Assy, Rear Wiper[01.1986 - 08.1987] BU60 |
85242-90D00 |
US $31.74 |
||
|
85220R
|
85220R
85220-90D00 Blade Assy, Rear Wiper[10.1986 - 08.1987] BU60 WINTER BLADE |
85220-90D00 |
US $46.16 |
||
| replacement | |||||
|
85220R
|
85220R
85291-90D00 Blade Assy, Rear Wiper[10.1986 - 08.1987] BU60 WINTER BLADE |
85291-90D00 |
US $41.64 |
||
|
85221R
|
85221R
85221-14210
Blade, Rear Wiper
[01.1986 - 08.1987] BU60 |
85221-14210 |
— | ||
| replacement | |||||
|
85221R
|
85221R
85214-24H90 Blade, Rear Wiper[01.1986 - 08.1987] BU60 |
85214-24H90 |
from US $14.34 |
||
|
85260R
|
85260R
85150-90D00 Link Assy, Rear Wiper, No.2[01.1986 - 08.1987] BU60 |
85150-90D00 |
US $39.60 |
||
|
9009900913
|
9009900913
90099-00913 SCREW |
90099-00913 |
US $3.05 |
||
|
9161160610
|
9161160610
91611-60610
Bolt (For Transfer Oil Receiver No.1)
|
91611-60610 |
— | ||
| replacement | |||||
|
9161160610
|
9161160610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
from US $0.78 |
||
