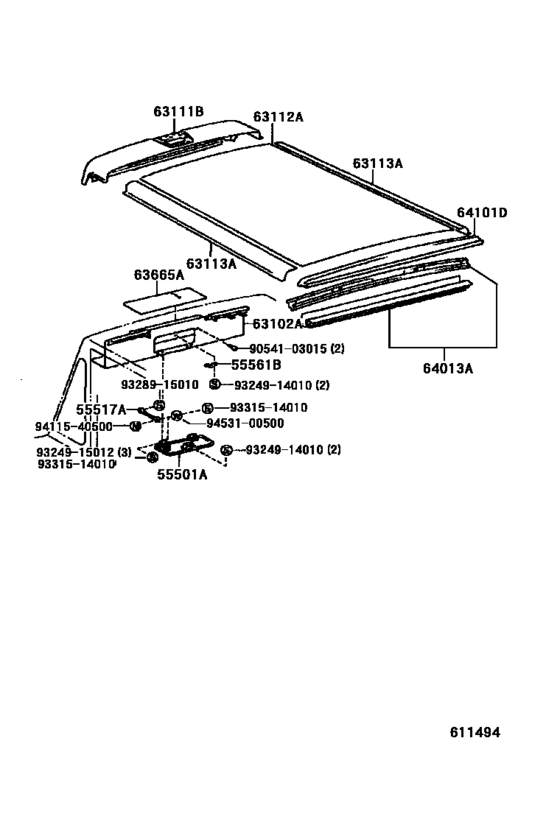

Roof Panel & Back Panel ([01.1986 - ] (8601- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55501A
|
55501A
55501-90D00 Door Sub-Assy, Glove Compartment[01.1986 - 05.1995] BU60 |
55501-90D00 |
US $65.67 |
||
|
55517A
|
55517A
55517-90D00 Stopper, Glove Compartment Door[01.1986 - 05.1995] BU60 |
55517-90D00 |
US $5.82 |
||
|
55561B
|
55561B
55561-90800
Striker, Glove Compartment Door Lock
[01.1986 - 05.1995] BU60 |
55561-90800 |
— | ||
|
63102A
|
63102A
63102-90F01 Panel Sub-Assy, Windshield Header[01.1986 - 05.1988] BU60 W/OVER HEAD GLOVE BOX |
63102-90F01 |
US $235.87 |
||
|
63102A
|
63102A
63102-90F02 Panel Sub-Assy, Windshield Header[08.1988 - 02.1990] BU60..N |
63102-90F02 |
US $235.87 |
||
|
63102A
|
63102A
63102-90F07 Panel Sub-Assy, Windshield Header[02.1990 - 05.1995] BU60..N; BU60..D ｱﾘ(ｵ-ﾊﾞ- ﾍﾂﾄﾞ ｸﾞﾗﾌﾞ ﾎﾞﾂｸｽ & ｽﾎﾟﾂﾄ ﾗﾝﾌﾟ) |
63102-90F07 |
US $232.96 |
||
|
63111B
|
63111B
63111-90F04 Panel, Roof, No.1[01.1986 - 05.1995] BU60..N; BU60..IV3; BU60..D..CBU ｱﾘ(ﾗｼﾞｵ) |
63111-90F04 |
US $302.85 |
||
|
63112A
|
63112A
63112-90F00 Panel, Roof, No.2[01.1986 - 05.1995] BU60 |
63112-90F00 |
US $586.77 |
||
|
63113A
|
63113A
63113-90F00 Panel, Roof, No.3[01.1986 - 05.1995] BU60 右側 |
63113-90F00 |
US $235.87 |
||
|
63113A
|
63113A
63114-90F00 Panel, Roof, No.3[01.1986 - 05.1995] BU60 左側 |
63114-90F00 |
US $256.26 |
||
| replacement | |||||
|
63113A
|
63113A
63113-90F00 Panel, Roof, No.3[01.1986 - 05.1995] BU60 左側 |
63113-90F00 |
US $235.87 |
||
|
63665A
|
63665A
63665-90D00 Mat, Roof Console Box[01.1986 - 05.1988] BU60 |
63665-90D00 |
US $24.46 |
||
|
64013A
|
64013A
64013-90F02 Rail Sub-Assy, Back[01.1986 - 05.1988] BU60..3D W/COURTESY SWITCH |
64013-90F02 |
US $263.54 |
||
|
64101D
|
64101D
64101-90F00
Rail Sub-Assy, Upper Back, Outer
[01.1986 - 02.1987] BU60 |
64101-90F00 |
— | ||
|
64101D
|
64101D
64101-90F01 Rail Sub-Assy, Upper Back, Outer[02.1987 - 05.1995] BU60 |
64101-90F01 |
US $407.68 |
||
|
9054103015
|
9054103015
90541-03015 Cushion, Instrument Panel Box |
90541-03015 |
from US $1.52 |
||
|
9324914010
|
9324914010
93249-14010 New Genuine Part |
93249-14010 |
US $2.18 |
||
| replacement | |||||
|
9324914010
|
9324914010
93249-14008 New Genuine Part |
93249-14008 |
US $1.25 |
||
|
9324915012
|
9324915012
93249-15012 New Genuine Part |
93249-15012 |
US $1.31 |
||
|
9328915010
|
9328915010
93289-15010 New Genuine Part |
93289-15010 |
US $2.18 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.74 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
US $1.97 |
||
|
9453100500
|
9453100500
94531-00500 WASHER,WAVE |
94531-00500 |
US $1.93 |
||
