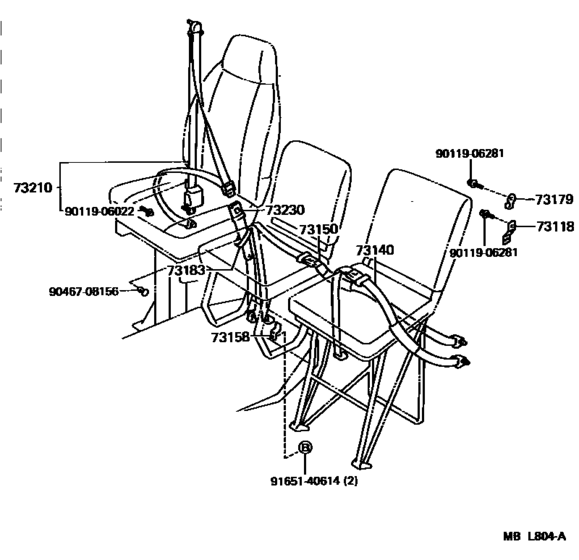

Seat Belt ([08.1987 - ] (8708- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73118
|
73118
73118-90D00 Plate, Belt Support[08.1987 - 05.1995] BU60 |
73118-90D00 |
US $6.41 |
||
|
73140
|
73140
73140-90D01 Belt Assy, Front Seat Lap Type, Lh[01.1986 - 08.1987] BU60 |
73140-90D01 |
US $173.26 |
||
|
73140
|
73140
73140-90D02-06 Belt Assy, Front Seat Lap Type, Lh[08.1987 - 05.1988] BU60 BROWN,BROWN,TRIM4# |
73140-90D02-06 |
US $149.97 |
||
|
73150
|
73150
73150-90F00-06 Belt Assy, Front Seat Lap Type, Center[08.1987 - 05.1988] BU60 BROWN,BROWN,TRIM4# |
73150-90F00-06 |
US $174.72 |
||
|
73158
|
73158
73158-90D00 Bracket, Seat Belt Guide Set[01.1986 - 05.1995] BU60 |
73158-90D00 |
US $31.89 |
||
|
73179
|
73179
73181-90D00 Hanger, Front Seat Lap Belt, Lh[01.1986 - 05.1995] BU60 |
73181-90D00 |
US $26.35 |
||
| replacement | |||||
|
73179
|
73179
73181-37010 Hanger, Front Seat Lap Belt[01.1986 - 05.1995] BU60 |
73181-37010 |
US $11.07 |
||
|
73183
|
73183
73183-90D00 Guide, Front Seat Lap Belt, Inner[08.1987 - 08.1990] BU60 |
73183-90D00 |
US $9.03 |
||
|
73210
|
73210
73210-90D00 Belt Assy, Front Seat Outer, Rh[01.1986 - 08.1987] BU60 |
73210-90D00 |
US $77.17 |
||
|
73210
|
73210
73210-90D01-06 Belt Assy, Front Seat Outer, Rh[08.1987 - 05.1988] BU60 BROWN,BROWN,TRIM4# |
73210-90D01-06 |
US $304.30 |
||
|
73230
|
73230
73230-26070-E0 Belt Assy, Front Seat Inner, Rh[09.1993 - 05.1995] BU60 BROWN,TRIM4# |
73230-26070-E0 |
US $82.99 |
||
|
73230
|
73230
73230-90D02 Belt Assy, Front Seat Inner, Rh[01.1986 - 08.1987] BU60 |
73230-90D02 |
US $67.56 |
||
|
73230
|
73230
73230-90D03-06 Belt Assy, Front Seat Inner, Rh[08.1987 - 05.1988] BU60 BROWN,BROWN,TRIM4# |
73230-90D03-06 |
US $78.62 |
||
|
73230
|
73230
73230-90F00-06 Belt Assy, Front Seat Inner, Rh[08.1990 - 05.1995] BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ,BROWN,TRIM4# |
73230-90F00-06 |
US $90.27 |
||
|
9011906022
|
9011906022
90119-06022 BOLT |
90119-06022 |
US $2.33 |
||
|
9011906281
|
9011906281
90119-06281 New Genuine Part |
90119-06281 |
US $5.53 |
||
| replacement | |||||
|
9011906281
|
9011906281
90119-06278 BOLT |
90119-06278 |
from US $0.89 |
||
|
9046708156
|
9046708156
90467-08156 Clip(For Hood To Radiator Support Seal) |
90467-08156 |
US $2.33 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.76 |
||
