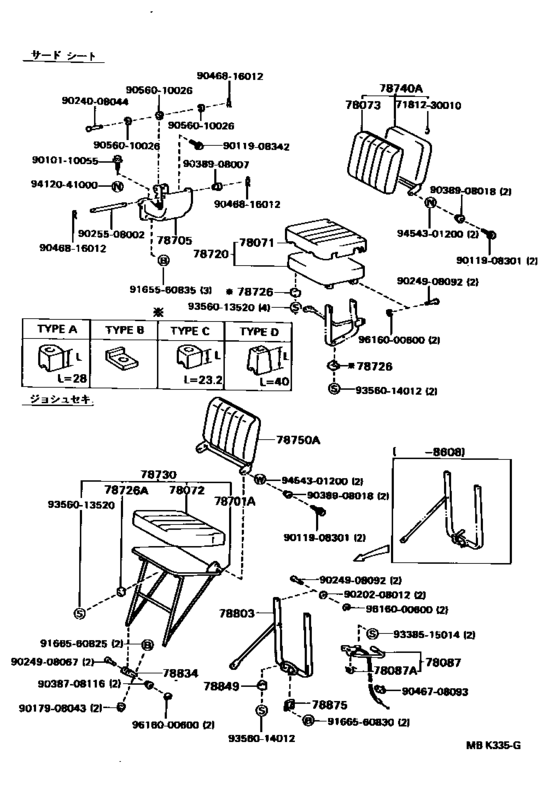

Seat & Seat Track ([01.1986 - 08.1987] (8601-8708)) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78071
|
78071
78072-90D00
Cover Sub-Assy, Sub Seat Cushion, Rh
[01.1986 - 08.1987] BU60 |
78072-90D00 |
— | ||
|
78071
|
78071
78072-90D03-06 Cover Sub-Assy, Sub Seat Cushion, Rh[08.1987 - 05.1988] BU60 DARK BROWN,DARK BROWN,TRIM4# |
78072-90D03-06 |
US $168.90 |
||
|
78072
|
78072
78071-90D01
Cover Sub-Assy, Sub Seat Cushion, Lh
[01.1986 - 08.1987] BU60 |
78071-90D01 |
— | ||
|
78072
|
78072
78071-90D02-06 Cover Sub-Assy, Sub Seat Cushion, Lh[08.1987 - 05.1988] BU60 DARK BROWN,DARK BROWN,TRIM4# |
78071-90D02-06 |
US $168.90 |
||
|
78073
|
78073
78081-90D00 Cover Sub-Assy, Sub Seat Back, Rh[01.1986 - 05.1995] BU60 |
78081-90D00 |
US $149.97 |
||
|
78087
|
78087
78087-90D00 Lever Sub-Assy, Sub Seat Lock[08.1986 - 05.1995] BU60 |
78087-90D00 |
US $43.24 |
||
|
78087A
|
78087A
90508-16080 Spring(For Reclining Remote Control Lever)[08.1986 - 05.1995] BU60 |
90508-16080 |
from US $4.16 |
||
|
78701A
|
78701A
78701-90F02-D0 Frame Sub-Assy, Sub Seat Cushion[05.1988 - 10.1991] BU60 DARK BROWN,DARK BROWN,TRIM4# |
78701-90F02-D0 |
US $155.79 |
||
|
78705
|
78705
78705-90M00 Bracket Sub-Assy, Sub Seat Cushion[01.1986 - 05.1995] BU60 |
78705-90M00 |
US $60.42 |
||
|
78720
|
78720
78730-90D00
Cushion Assy, Sub Seat, Rh
[01.1986 - 08.1987] BU60 |
78730-90D00 |
— | ||
|
78720
|
78720
78730-90D03-06 Cushion Assy, Sub Seat, Rh[08.1987 - 05.1988] BU60 DARK BROWN,DARK BROWN,TRIM4# |
78730-90D03-06 |
US $436.80 |
||
|
78726
|
78726
78726-90B00 Cushion, Sub Seat Cushion Frame[01.1986 - 07.1987] BU60 TYPE C |
78726-90B00 |
US $5.23 |
||
|
78726
|
78726
78726-90B01 Cushion, Sub Seat Cushion Frame[01.1986 - 08.1987] BU60 TYPE A |
78726-90B01 |
US $8.74 |
||
|
78726
|
78726
78726-90C00 Cushion, Sub Seat Cushion Frame[01.1986 - 08.1987] BU60 TYPE B |
78726-90C00 |
US $8.44 |
||
|
78726
|
78726
78726-90D01 Cushion, Sub Seat Cushion Frame[07.1987 - 05.1988] BU60 TYPE D |
78726-90D01 |
US $15.58 |
||
|
78726A
|
78726A
78726-90D01 Cushion, Sub Seat Cushion Frame[05.1988 - 05.1995] BU60 |
78726-90D01 |
US $15.58 |
||
|
78730
|
78730
78720-90F00
Cushion Assy, Sub Seat, Lh
[01.1986 - 08.1986] BU60 |
78720-90F00 |
— | ||
|
78730
|
78730
78720-90F01-06
Cushion Assy, Sub Seat, Lh
[08.1986 - 08.1987] BU60 DARK BROWN,DARK BROWN,TRIM4# |
78720-90F01-06 |
— | ||
|
78730
|
78730
78720-90F04-06 Cushion Assy, Sub Seat, Lh[08.1987 - 05.1988] BU60 DARK BROWN,DARK BROWN,TRIM4# |
78720-90F04-06 |
US $436.80 |
||
|
78740A
|
78740A
78740-90D02 Back Assy, Sub Seat, Rh[01.1986 - 05.1995] BU60 |
78740-90D02 |
US $334.88 |
||
|
78750A
|
78750A
78740-90D01 Back Assy, Sub Seat, Rh[01.1986 - 05.1995] BU60 |
78740-90D01 |
US $266.45 |
||
|
78803
|
78803
78803-90F01 Leg Sub-Assy, Sub Seat[08.1986 - 08.1987] BU60 |
78803-90F01 |
US $206.75 |
||
| replacement | |||||
|
78803
|
78803
78803-90F02-06 Leg Sub-Assy, Sub Seat[08.1986 - 08.1987] BU60 |
78803-90F02-06 |
US $205.30 |
||
|
78803
|
78803
78803-90F02-06 Leg Sub-Assy, Sub Seat[08.1987 - 05.1988] BU60 BROWN,BROWN,TRIM4# |
78803-90F02-06 |
US $205.30 |
||
|
78834
|
78834
78834-90D01 Bracket, Sub Seat Leg[08.1986 - 05.1995] BU60 |
78834-90D01 |
US $18.05 |
||
| replacement | |||||
|
78834
|
78834
78834-90D01-B0 Bracket, Sub Seat Leg[08.1986 - 05.1995] BU60 |
78834-90D01-B0 |
US $18.05 |
||
|
78849
|
78849
78849-90D00 Bumper, Sub Seat Leg[01.1986 - 05.1995] BU60 |
78849-90D00 |
US $5.82 |
||
|
78875
|
78875
78808-90D00 Striker, Sub Seat Lock[01.1986 - 05.1995] BU60 |
78808-90D00 |
US $16.45 |
||
|
7181230010
|
7181230010
71812-30010
Ring(For Seat Belt Cover)
|
71812-30010 |
— | ||
| replacements | |||||
|
7181230010
|
7181230010
90468-16019 Clip (For Rear Seat Back) |
90468-16019 |
from US $0.84 |
||
|
7181230010
|
7181230010
90468-18008 Clip (For Rear Seat Back) |
90468-18008 |
from US $0.70 |
||
|
9010110055
|
9010110055
90101-10055 Bolt(For Clutch Pedal Stopper) |
90101-10055 |
US $1.38 |
||
|
9011908301
|
9011908301
90119-08301 BOLT |
90119-08301 |
US $2.33 |
||
|
9011908342
|
9011908342
90119-08342 New Genuine Part |
90119-08342 |
US $3.20 |
||
|
9017908043
|
9017908043
90179-08043
New Genuine Part
|
90179-08043 |
— | ||
| replacement | |||||
|
9017908043
|
9017908043
90179-08074 New Genuine Part |
90179-08074 |
US $3.58 |
||
|
9020208012
|
9020208012
90202-08012 New Genuine Part |
90202-08012 |
US $1.60 |
||
|
9024008044
|
9024008044
90240-08044 PIN |
90240-08044 |
US $2.20 |
||
|
9024908067
|
9024908067
90249-08067 New Genuine Part |
90249-08067 |
US $4.22 |
||
|
9024908092
|
9024908092
90249-08092 New Genuine Part |
90249-08092 |
US $3.20 |
||
|
9025508002
|
9025508002
90255-08002 New Genuine Part |
90255-08002 |
US $5.82 |
||
|
9038708116
|
9038708116
90387-08116 New Genuine Part |
90387-08116 |
US $3.35 |
||
|
9038908007
|
9038908007
90389-08007 New Genuine Part |
90389-08007 |
US $3.20 |
||
|
9038908018
|
9038908018
90389-08018 New Genuine Part |
90389-08018 |
US $3.06 |
||
|
9046708093
|
9046708093
90467-08093 New Genuine Part |
90467-08093 |
US $1.31 |
||
|
9046816012
|
9046816012
90468-16012 Pin, Sub Seat Cushion Pin |
90468-16012 |
from US $0.87 |
||
|
9056010026
|
9056010026
90560-10026 SPACER |
90560-10026 |
US $2.51 |
||
|
9165560835
|
9165560835
91655-60835 Bolt(For Front Suspension Control Accumulator) |
91655-60835 |
US $1.89 |
||
| replacement | |||||
|
9165560835
|
9165560835
91651-60835 Bolt(For Front Suspension Control Accumulator) |
91651-60835 |
from US $1.48 |
||
|
9166560825
|
9166560825
91665-60825
New Genuine Part
|
91665-60825 |
— | ||
| replacement | |||||
|
9166560825
|
9166560825
91661-60825 New Genuine Part |
91661-60825 |
US $2.69 |
||
|
9166560830
|
9166560830
91665-60830 New Genuine Part |
91665-60830 |
US $2.18 |
||
| replacement | |||||
|
9166560830
|
9166560830
91661-60830 Bolt |
91661-60830 |
from US $1.61 |
||
|
9338515014
|
9338515014
93385-15014 Screw(For Steering Tilt Lever) |
93385-15014 |
US $1.97 |
||
|
9356013520
|
9356013520
93560-13520 New Genuine Part |
93560-13520 |
US $1.61 |
||
|
9356014012
|
9356014012
93560-14012 SCREW |
93560-14012 |
US $1.25 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.74 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9454301200
|
9454301200
94543-01200 WASHER |
94543-01200 |
US $2.33 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.82 |
||
