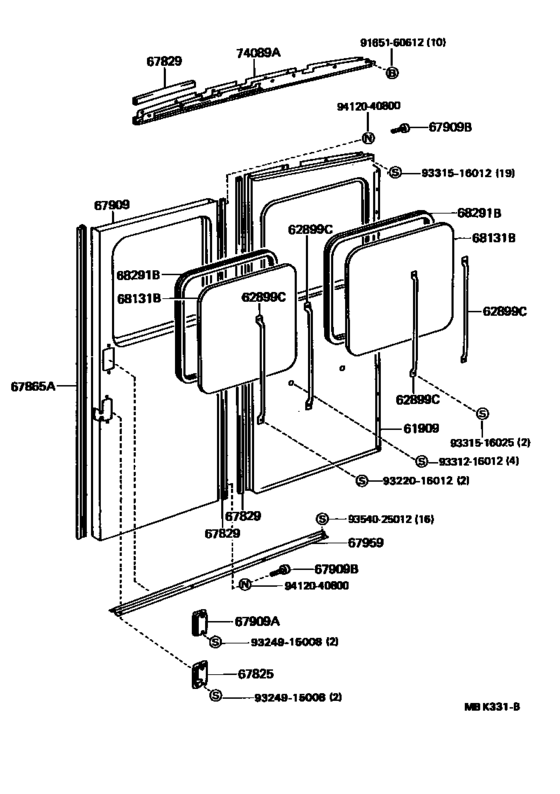

Separation Door Panel & Glass ([01.1986 - ] (8601- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61909
|
61909
74085-90F00 Panel Sub-Assy, Separation[01.1986 - 02.1990] BU60 |
74085-90F00 |
US $1,587.04 |
||
| replacement | |||||
|
61909
|
61909
74085-90F02 Panel Sub-Assy, Separation[01.1986 - 02.1990] BU60 |
74085-90F02 |
US $1,432.70 |
||
|
61909
|
61909
74085-90F02 Panel Sub-Assy, Separation[02.1990 - 05.1995] BU60..CBU |
74085-90F02 |
US $1,432.70 |
||
|
62899C
|
62899C
62893-90D02 Tube, Separation[01.1986 - 05.1988] BU60 |
62893-90D02 |
US $47.61 |
||
|
62899C
|
62899C
62893-90D04 Tube, Separation[06.1988 -] BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
62893-90D04 |
US $48.48 |
||
|
67825
|
67825
67825-26010 Cover, Separation Door Service Hole[06.1991 - 05.1995] BU60..CBU |
67825-26010 |
US $9.90 |
||
|
67825
|
67825
67825-90D00 Cover, Separation Door Service Hole[01.1986 - 05.1988] BU60 |
67825-90D00 |
US $19.95 |
||
|
67829
|
67829
67827-90D02 Moulding, Separation Door Trim[01.1986 - 06.1986] BU60 L=1690 |
67827-90D02 |
US $27.81 |
||
| replacement | |||||
|
67829
|
67829
67827-90D03 Moulding, Separation Door Trim[01.1986 - 06.1986] BU60 L=1690 |
67827-90D03 |
US $27.66 |
||
|
67829
|
67829
67827-90D03 Moulding, Separation Door Trim[06.1986 - 05.1988] BU60 L=1690 |
67827-90D03 |
US $27.66 |
||
|
67829
|
67829
67839-90D02 Moulding, Separation Door Trim[01.1986 - 05.1988] BU60 L=1730 |
67839-90D02 |
US $32.91 |
||
| replacement | |||||
|
67829
|
67829
67839-25010-B0 Moulding, Separation Door Trim[01.1986 - 05.1988] BU60 L=1730 |
67839-25010-B0 |
US $33.20 |
||
|
67865A
|
67865A
67865-90D02 Weatherstrip, Separation Door[01.1986 - 05.1988] BU60 |
67865-90D02 |
US $81.54 |
||
|
67909
|
67909
67909-36010 Panel Sub-Assy, Separation Door[06.1991 - 05.1995] BU60..CBU |
67909-36010 |
US $1,365.73 |
||
|
67909
|
67909
67909-36020 Panel Sub-Assy, Separation Door[06.1991 - 05.1995] BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
67909-36020 |
US $1,370.10 |
||
|
67909
|
67909
67909-90F00 Panel Sub-Assy, Separation Door[01.1986 - 08.1987] BU60 |
67909-90F00 |
US $1,499.68 |
||
|
67909
|
67909
67909-90F01 Panel Sub-Assy, Separation Door[08.1987 - 02.1990] BU60 |
67909-90F01 |
US $1,514.24 |
||
| replacement | |||||
|
67909
|
67909
67909-90F03 Panel Sub-Assy, Separation Door[08.1987 - 02.1990] BU60 |
67909-90F03 |
US $1,514.24 |
||
|
67909
|
67909
67909-90F02 Panel Sub-Assy, Separation Door[02.1989 - 08.1990] BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
67909-90F02 |
US $1,499.68 |
||
|
67909
|
67909
67909-90F03 Panel Sub-Assy, Separation Door[02.1990 - 06.1991] BU60..CBU |
67909-90F03 |
US $1,514.24 |
||
|
67909
|
67909
67909-90F04 Panel Sub-Assy, Separation Door[08.1990 - 06.1991] BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
67909-90F04 |
US $1,514.24 |
||
|
67909A
|
67909A
61791-90A00 Cover, Roof Side Inner Service Hole[01.1986 - 05.1988] BU60 |
61791-90A00 |
US $36.55 |
||
| replacement | |||||
|
67909A
|
67909A
61791-90B01 Cover, Roof Side Inner Service Hole[01.1986 - 05.1988] BU60 |
61791-90B01 |
US $5.24 |
||
|
67909A
|
67909A
61791-90B01 Cover, Roof Side Inner Service Hole[05.1988 - 06.1991] BU60..CBU |
61791-90B01 |
US $5.24 |
||
|
67909A
|
67909A
67826-26010 Cover, Separation Door Service Hole, No.1[06.1991 - 05.1995] BU60..CBU |
67826-26010 |
US $10.05 |
||
|
67909B
|
67909B
53382-60010
Bumper, Hood, Front
[05.1988 - 05.1995] BU60..CBU |
53382-60010 |
— | ||
| replacement | |||||
|
67909B
|
67909B
53382-60011 Bumper, Hood, Front[05.1988 - 05.1995] BU60..CBU |
53382-60011 |
from US $12.58 |
||
|
67909B
|
67909B
53382-90A00
Bumper, Hood, Front
[01.1986 - 05.1988] BU60 |
53382-90A00 |
— | ||
| replacement | |||||
|
67909B
|
67909B
53382-90K01 Bumper, Hood, Front[01.1986 - 05.1988] BU60 |
53382-90K01 |
from US $6.59 |
||
|
67959
|
67959
67959-90F00 Rail, Separation Door[01.1986 - 05.1988] BU60 |
67959-90F00 |
US $151.42 |
||
|
68131B
|
68131B
68131-90D02
Glass, Separation
[01.1986 - 05.1988] BU60 *TEM,T=3.5 |
68131-90D02 |
— | ||
| replacement | |||||
|
68131B
|
68131B
68515-25010 Glass, Separation[01.1986 - 05.1988] BU60 *TEM,T=3.5 |
68515-25010 |
US $230.05 |
||
|
68291B
|
68291B
68291-90D00 Weatherstrip, Side Window, No.2(For Fixed Type)[01.1986 - 05.1988] BU60 |
68291-90D00 |
US $58.53 |
||
|
74089A
|
74089A
74089-90F00 Rail Sub-Assy, Separation Door[01.1986 - 05.1988] BU60 |
74089-90F00 |
US $263.54 |
||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.61 |
||
|
9322016012
|
9322016012
93220-16012 SCREW |
93220-16012 |
US $1.40 |
||
|
9324915008
|
9324915008
93249-15008 New Genuine Part |
93249-15008 |
US $2.18 |
||
|
9331216012
|
9331216012
93312-16012 New Genuine Part |
93312-16012 |
US $1.46 |
||
|
9331516012
|
9331516012
93315-16012 New Genuine Part |
93315-16012 |
US $2.77 |
||
|
9331516025
|
9331516025
93315-16025 New Genuine Part |
93315-16025 |
US $2.18 |
||
|
9354025012
|
9354025012
93540-25012 New Genuine Part |
93540-25012 |
US $0.87 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.61 |
||
