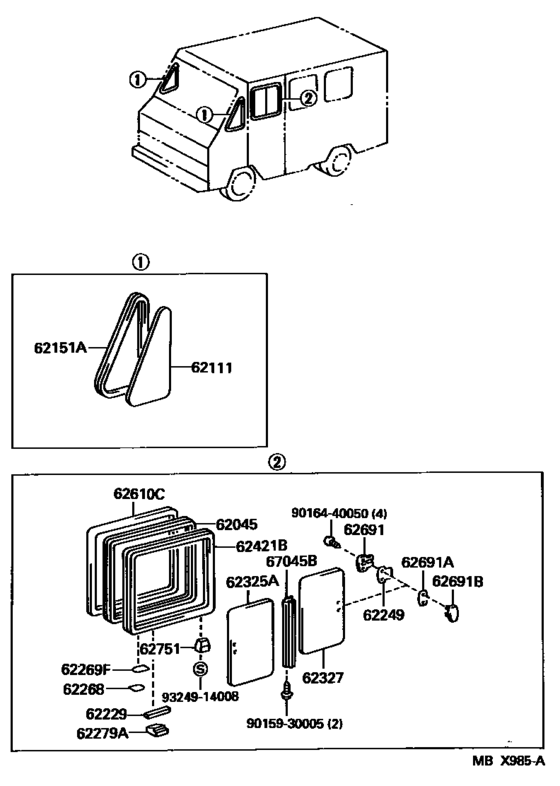

Side Window ([01.1986 - ] (8601- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62045
|
62045
62045-90D04 Frame Sub-Assy, Front Door Window, Outer Lh[01.1986 - 05.1995] BU60 |
62045-90D04 |
US $145.60 |
||
|
62111
|
62111
62111-90D02
Glass, Front Side Window
[01.1986 - 05.1988] BU60 *TEM,T=3.5 |
62111-90D02 |
— | ||
| replacement | |||||
|
62111
|
62111
62111-25010
Glass, Front Side Window
[01.1986 - 05.1988] BU60 *TEM,T=3.5 |
62111-25010 |
— | ||
|
62151A
|
62151A
62151-90D02 Weatherstrip, Front Side Window[01.1986 - 05.1995] BU60 |
62151-90D02 |
US $51.40 |
||
|
62229
|
62229
62229-95J00 Packing, Side Window[01.1986 - 05.1995] BU60..N; BU60..D..CBU |
62229-95J00 |
US $2.15 |
||
|
62249
|
62249
62249-95700 Plate, Side Window, Rh[01.1986 - 05.1995] BU60 |
62249-95700 |
from US $1.46 |
||
|
62268
|
62268
62268-90A00 Film, Side Window Frame, B[01.1986 - 05.1995] BU60..N; BU60..D..CBU |
62268-90A00 |
US $2.97 |
||
|
62269F
|
62269F
62269-90A00 Film, Side Window Frame, Rh[01.1986 - 05.1995] BU60..N; BU60..D..CBU |
62269-90A00 |
US $2.34 |
||
|
62279A
|
62279A
62279-90A00
Spacer, Side Window Frame
[01.1986 - 05.1995] BU60..N; BU60..D..CBU |
62279-90A00 |
— | ||
|
62279A
|
62279A
62279-90K00 Spacer, Side Window Frame, Upper[01.1986 - 05.1995] BU60 |
62279-90K00 |
US $5.56 |
||
|
62325A
|
62325A
62325-90D00 Glass, Front Door Window, Front Lh[12.1987 - 05.1995] BU60 |
62325-90D00 |
US $214.03 |
||
| replacement | |||||
|
62325A
|
62325A
62325-25010
Glass, Front Door Window, Front Lh
[12.1987 - 05.1995] BU60 |
62325-25010 |
— | ||
|
62327
|
62327
62327-90D00 Glass, Front Door Window, Rear Lh[12.1987 - 05.1995] BU60 |
62327-90D00 |
US $215.49 |
||
| replacement | |||||
|
62327
|
62327
62327-25010
Glass, Front Door Window, Rear Lh
[12.1987 - 05.1995] BU60 |
62327-25010 |
— | ||
|
62421B
|
62421B
62421-90D03 Run, Fr0Nt Door Window, Lh[01.1986 - 05.1995] BU60 |
62421-90D03 |
US $43.83 |
||
|
62610C
|
62610C
62375-90D04 Clip, Side Window Outer Sash, No.1 (For Slide Type)[01.1986 - 05.1995] BU60 |
62375-90D04 |
US $75.71 |
||
|
62691
|
62691
62910-95703 Lock, Side Window, No.1 Glass (For Slide Type)[01.1986 - 05.1995] BU60 |
62910-95703 |
from US $11.19 |
||
|
62691A
|
62691A
62792-95A00 Packing, Side Rear Window, Rh[01.1986 - 05.1995] BU60 |
62792-95A00 |
from US $1.54 |
||
|
62691B
|
62691B
62793-95A01
Retainer, Side Window Lock, No.1
[01.1986 - 05.1995] BU60 |
62793-95A01 |
— | ||
| replacement | |||||
|
62691B
|
62691B
62793-95704 Retainer, Side Window Lock, No.1[01.1986 - 05.1995] BU60 |
62793-95704 |
from US $6.10 |
||
|
62751
|
62751
62751-95661
Stop, Side Front Window Glass, Rh
[05.1988 - 05.1995] BU60 |
62751-95661 |
— | ||
|
67045B
|
67045B
67045-90D00 Frame Sub-Assy, Slide Window, Center[01.1986 - 05.1995] BU60 |
67045-90D00 |
US $80.08 |
||
|
9015930005
|
9015930005
90159-30005 SCREW |
90159-30005 |
US $1.61 |
||
|
9016440050
|
9016440050
90164-40050 SCREW |
90164-40050 |
from US $0.78 |
||
|
9324914008
|
9324914008
93249-14008 New Genuine Part |
93249-14008 |
US $1.25 |
||
