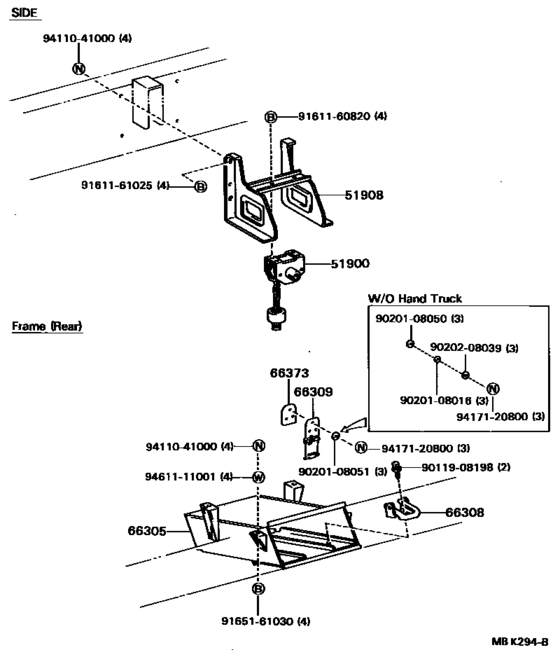

Spare Wheel Carrier ([01.1986 - 08.1987] (8601-8708)) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51900
|
51900
51900-36080 Carrier Assy, Spare Wheel[01.1986 - 07.1986] BU60 |
51900-36080 |
US $91.73 |
||
| replacement | |||||
|
51900
|
51900
51900-36102 Carrier Assy, Spare Wheel[01.1986 - 07.1986] BU60 |
51900-36102 |
from US $96.10 |
||
|
51900
|
51900
51900-36100 Carrier Assy, Spare Wheel[07.1986 - 02.1988] BU60 |
51900-36100 |
US $91.73 |
||
| replacement | |||||
|
51900
|
51900
51900-36102 Carrier Assy, Spare Wheel[07.1986 - 02.1988] BU60 |
51900-36102 |
from US $96.10 |
||
|
51900
|
51900
51900-36101 Carrier Assy, Spare Wheel[02.1988 - 05.1995] BU60 |
51900-36101 |
US $96.10 |
||
| replacement | |||||
|
51900
|
51900
51900-36102 Carrier Assy, Spare Wheel[02.1988 - 05.1995] BU60 |
51900-36102 |
from US $96.10 |
||
|
51900
|
51900
51903-90F00 Carrier Assy, Spare Wheel[02.1989 - 08.1990] BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
51903-90F00 |
US $104.83 |
||
|
51900
|
51900
51903-90F01 Carrier Assy, Spare Wheel[08.1990 - 05.1995] BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
51903-90F01 |
US $104.83 |
||
|
51908
|
51908
51908-36060 Bracket Sub-Assy, Spare Wheel Carrier[01.1986 - 05.1995] BU60 |
51908-36060 |
US $90.27 |
||
|
66305
|
66305
66305-90F01 Box Sub-Assy, Hand Truck[01.1986 - 08.1987] BU60..N |
66305-90F01 |
US $543.09 |
||
|
66305
|
66305
66305-90F02 Box Sub-Assy, Hand Truck[08.1987 - 10.1989] BU60..N |
66305-90F02 |
US $647.92 |
||
| replacement | |||||
|
66305
|
66305
66305-90F03 Box Sub-Assy, Hand Truck[08.1987 - 10.1989] BU60..N |
66305-90F03 |
US $647.92 |
||
|
66305
|
66305
66305-90F03 Box Sub-Assy, Hand Truck[10.1989 - 05.1995] BU60..N |
66305-90F03 |
US $647.92 |
||
|
66308
|
66308
66308-90D00 Stopper Sub-Assy, Hand Truck[01.1986 - 08.1987] BU60..N |
66308-90D00 |
US $125.22 |
||
|
66309
|
66309
66309-90F02 Hinge Sub Assy, Hand Truck Stopper[01.1986 - 08.1987] BU60..N |
66309-90F02 |
US $225.68 |
||
|
66373
|
66373
66373-90D00 Packing, Stopper Hinge Male[01.1986 - 08.1987] BU60..N |
66373-90D00 |
US $5.97 |
||
|
9011908198
|
9011908198
90119-08198 BOLT |
90119-08198 |
US $2.87 |
||
|
9020108016
|
9020108016
90201-08016 New Genuine Part |
90201-08016 |
US $2.62 |
||
|
9020108050
|
9020108050
90201-08050 Washer, Plate (For Transmission Control Cable) |
90201-08050 |
US $1.16 |
||
|
9020108051
|
9020108051
90201-08051 New Genuine Part |
90201-08051 |
US $1.75 |
||
|
9020208039
|
9020208039
90202-08039 WASHER |
90202-08039 |
US $3.76 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.16 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.93 |
||
|
9165161030
|
9165161030
91651-61030 Bolt (For Transfer Case) |
91651-61030 |
from US $1.39 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
|
9417120800
|
9417120800
94171-20800 NUT |
94171-20800 |
US $5.73 |
||
|
9461111001
|
9461111001
94611-11001 Plate, Rear Seat Back Stopper |
94611-11001 |
US $1.43 |
||
