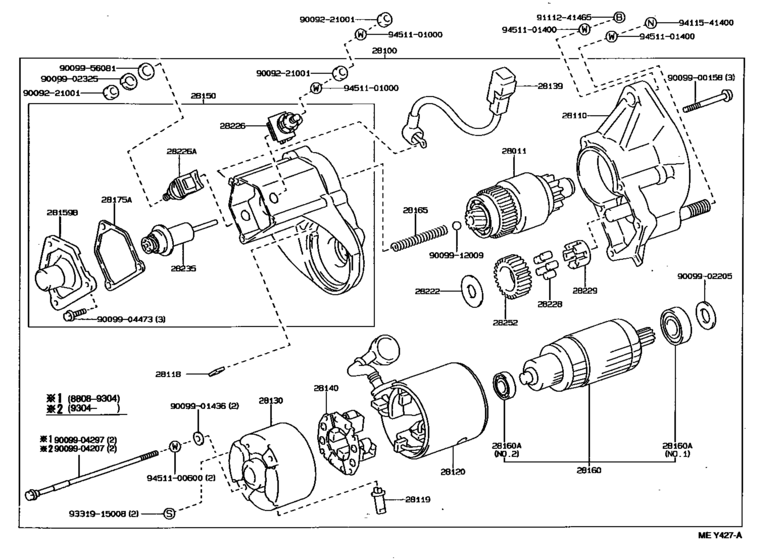

Starter ([08.1988 - ] 24V 4.5KW (8808- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-54010 Clutch Sub-Assy, Starter[01.1986 - 05.1988] B..BU60 24V 4.5KW |
28011-54010 |
from US $184.93 |
||
|
28100
|
28100
28100-56171 Starter Assy[01.1986 - 01.1988] B..BU60 ２４Ｖ ４．５ＫＷ,24V 4.5KW |
28100-56171 |
US $2,256.80 |
||
|
28100
|
28100
28100-56240 Starter Assy[01.1988 - 05.1988] B..BU60 ２４Ｖ ４．５ＫＷ,24V 4.5KW |
28100-56240 |
US $2,242.24 |
||
| replacement | |||||
|
28100
|
28100
28100-56242 Starter Assy[01.1988 - 05.1988] B..BU60 ２４Ｖ ４．５ＫＷ,24V 4.5KW |
28100-56242 |
US $2,242.24 |
||
|
28100
|
28100
28100-56241 Starter Assy[08.1988 - 10.1989] B..BU60 ２４Ｖ ４．５ＫＷ |
28100-56241 |
US $2,795.52 |
||
| replacement | |||||
|
28100
|
28100
28100-56242 Starter Assy[08.1988 - 10.1989] B..BU60 ２４Ｖ ４．５ＫＷ |
28100-56242 |
US $2,242.24 |
||
|
28100
|
28100
28100-56242 Starter Assy[10.1989 - 09.1993] B..BU60 ２４Ｖ ４．５ＫＷ |
28100-56242 |
US $2,242.24 |
||
|
28100
|
28100
28100-56330 Starter Assy[09.1993 - 05.1995] B..BU60 ２４Ｖ ４．５ＫＷ |
28100-56330 |
US $2,213.12 |
||
| replacement | |||||
|
28100
|
28100
28100-56332
Starter Assy
[09.1993 - 05.1995] B..BU60 ２４Ｖ ４．５ＫＷ |
28100-56332 |
— | ||
|
28110
|
28110
28110-56150 Housing Assy, Starter Drive[01.1986 - 05.1988] B..BU60 24V 4.5KW |
28110-56150 |
US $155.79 |
||
| replacement | |||||
|
28110
|
28110
28110-56151 Housing Assy, Starter Drive[01.1986 - 05.1988] B..BU60 24V 4.5KW |
28110-56151 |
from US $113.30 |
||
|
28118
|
28118
28118-77090
Plate(For Starter Yoke)
[01.1986 - 05.1988] B..BU60 24V 4.5KW |
28118-77090 |
— | ||
|
28119
|
28119
28119-77090
Cover, Starter End Frame
[01.1986 - 02.1987] B..BU60 24V 4.5KW |
28119-77090 |
— | ||
| replacement | |||||
|
28119
|
28119
28199-77090
Cover, Starter End Frame
[01.1986 - 02.1987] B..BU60 24V 4.5KW |
28199-77090 |
— | ||
|
28119
|
28119
28199-46080 Cover, Starter End Frame[04.1993 - 05.1995] B..BU60 |
28199-46080 |
from US $2.97 |
||
|
28119
|
28119
28199-77090
Cover, Starter End Frame
[02.1987 - 05.1988] B..BU60 24V 4.5KW |
28199-77090 |
— | ||
|
28120
|
28120
28120-56071 Yoke Assy, Starter[01.1986 - 05.1988] B..BU60 24V 4.5KW |
28120-56071 |
US $248.10 |
||
|
28120
|
28120
28120-56221
Yoke Assy, Starter
[08.1988 - 05.1995] B..BU60 |
28120-56221 |
— | ||
|
28130
|
28130
28130-56080 Frame Assy, Starter Commutator End[01.1986 - 05.1988] B..BU60 24V 4.5KW |
28130-56080 |
US $77.17 |
||
| replacements | |||||
|
28130
|
28130
28130-56260
Frame Assy, Starter Commutator End
[01.1986 - 05.1988] B..BU60 24V 4.5KW |
28130-56260 |
— | ||
|
28130
|
28130
28199-46080 Cover, Starter End Frame[01.1986 - 05.1988] B..BU60 24V 4.5KW |
28199-46080 |
from US $2.97 |
||
|
28130
|
28130
90099-04207
New Genuine Part
[01.1986 - 05.1988] B..BU60 24V 4.5KW |
90099-04207 |
— | ||
|
28130
|
28130
28130-56260
Frame Assy, Starter Commutator End
[04.1993 - 05.1995] B..BU60 |
28130-56260 |
— | ||
|
28139
|
28139
28139-56150
Wire, Lead, No.1(For Starter)
[01.1986 - 01.1988] B..BU60 24V 4.5KW |
28139-56150 |
— | ||
|
28139
|
28139
28139-56220
Wire, Lead, No.1(For Starter)
[01.1988 - 05.1988] B..BU60 24V 4.5KW |
28139-56220 |
— | ||
|
28139
|
28139
28139-56250
Wire, Lead, No.1(For Starter)
[09.1993 - 05.1995] B..BU60 |
28139-56250 |
— | ||
| replacement | |||||
|
28139
|
28139
28139-56310
Wire, Lead, No.1(For Starter)
[09.1993 - 05.1995] B..BU60 |
28139-56310 |
— | ||
|
28140
|
28140
28140-77090 Holder Assy, Starter Brush[01.1986 - 05.1988] B..BU60 24V 4.5KW |
28140-77090 |
from US $55.39 |
||
|
28150
|
28150
28150-56170 Switch Assy, Magnet Starter[01.1986 - 05.1988] B..BU60 24V 4.5KW |
28150-56170 |
US $435.34 |
||
| replacement | |||||
|
28150
|
28150
28150-56320 Switch Assy, Magnet Starter[01.1986 - 05.1988] B..BU60 24V 4.5KW |
28150-56320 |
US $436.80 |
||
|
28150
|
28150
28150-56330 Switch Assy, Magnet Starter[09.1993 - 05.1995] B..BU60 |
28150-56330 |
US $436.80 |
||
| replacement | |||||
|
28150
|
28150
28150-58010 Switch Assy, Magnet Starter[09.1993 - 05.1995] B..BU60 |
28150-58010 |
US $275.18 |
||
|
28159B
|
28159B
28159-56310
Cover, Magnet Switch
[01.1986 - 05.1995] B..BU60 |
28159-56310 |
— | ||
|
28160
|
28160
28160-56140 Armature Assy, Starter[01.1986 - 05.1988] B..BU60 24V 4.5KW |
28160-56140 |
US $426.61 |
||
|
28160A
|
28160A
90099-10131 Bearing, Starter Armature[01.1986 - 05.1988] B..BU60 24V 4.5KW,NO.2 |
90099-10131 |
US $7.43 |
||
|
28160A
|
28160A
90099-54120 Bearing, Starter Armature[01.1986 - 05.1988] B..BU60 24V 4.5KW,NO.1 |
90099-54120 |
US $16.02 |
||
|
28165
|
28165
28165-77090
Spring, Starter Magnet Switch Return
[01.1986 - 05.1988] B..BU60 24V 4.5KW |
28165-77090 |
— | ||
|
28175A
|
28175A
28175-56310 Gasket, Magnet Switch Cover[01.1986 - 05.1995] B..BU60 |
28175-56310 |
from US $1.92 |
||
|
28222
|
28222
28222-77090
Washer, Starter Idle Gear Clutch
[01.1986 - 05.1988] B..BU60 24V 4.5KW |
28222-77090 |
— | ||
|
28226
|
28226
28226-56330
Starter Kit, Battery Terminal
[01.1986 - 05.1995] B..BU60 |
28226-56330 |
— | ||
| replacement | |||||
|
28226
|
28226
28226-54320 Starter Kit, Battery Terminal[01.1986 - 05.1995] B..BU60 |
28226-54320 |
from US $10.01 |
||
|
28226A
|
28226A
28226-54220 Starter Kit, Motor Terminal[01.1986 - 05.1995] B..BU60 |
28226-54220 |
from US $11.21 |
||
|
28228
|
28228
28228-56080
Roller, Starter Idle Gear Clutch
[01.1986 - 05.1988] B..BU60 24V 4.5KW |
28228-56080 |
— | ||
|
28229
|
28229
28229-56080
Retainer, Starter Idle Gear
[01.1986 - 05.1988] B..BU60 24V 4.5KW |
28229-56080 |
— | ||
|
28235
|
28235
28235-17030 Plunger, Magnet Switch[01.1986 - 05.1995] B..BU60 |
28235-17030 |
from US $25.44 |
||
|
28252
|
28252
28254-77090
Pinion, Starter Drive
[01.1986 - 05.1988] B..BU60 24V 4.5KW |
28254-77090 |
— | ||
|
9009221001
|
9009221001
90092-21001 NUT |
90092-21001 |
US $1.46 |
||
|
9009900158
|
9009900158
90099-00158
SCREW
|
90099-00158 |
— | ||
|
9009901436
|
9009901436
90099-01436
New Genuine Part
|
90099-01436 |
— | ||
|
9009902205
|
9009902205
90099-02205
Washer, Felt, Starter
|
90099-02205 |
— | ||
|
9009902325
|
9009902325
90099-02325 WASHER |
90099-02325 |
from US $0.29 |
||
|
9009904207
|
9009904207
90099-04207
New Genuine Part
|
90099-04207 |
— | ||
|
9009904297
|
9009904297
90099-04297
BOLT
|
90099-04297 |
— | ||
|
9009904473
|
9009904473
90099-04473
New Genuine Part
|
90099-04473 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9009956081
|
9009956081
90099-56081
New Genuine Part
|
90099-56081 |
— | ||
|
9111241465
|
9111241465
91112-41465 BOLT |
91112-41465 |
US $4.22 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
||
|
9411541400
|
9411541400
94115-41400 Nut(For Backing Plate To Steering Knuckle Setting) |
94115-41400 |
US $1.22 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $2.15 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.97 |
||
|
9451101400
|
9451101400
94511-01400
WASHER
|
94511-01400 |
— | ||
