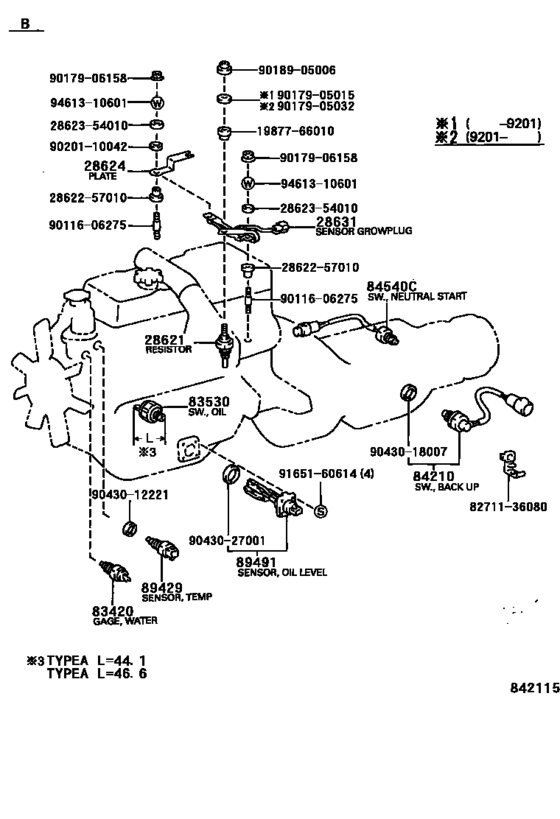

Switch & Relay & Computer ([01.1986 - ] (8601- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28621
|
28621
28621-57011
Resistor, Glow Plug
[01.1986 - 05.1995] B..BU60 |
28621-57011 |
— | ||
|
28624
|
28624
28624-57010
Plate, Current Sensor
[01.1986 - 08.1988] B..BU60 |
28624-57010 |
— | ||
|
28631
|
28631
28631-57010
Sensor, Glow Plug Current
[01.1986 - 08.1988] B..BU60 |
28631-57010 |
— | ||
|
83420
|
83420
83420-16040 Gage Assy, Water Temperature Sender[09.1993 - 05.1995] BU60 ＮＩＰＰＯＮＤＥＮＳＯ |
83420-16040 |
from US $27.76 |
||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[01.1986 - 09.1993] BU60 |
83420-20020 |
from US $28.46 |
||
|
83420
|
83420
83420-20030
Gage Assy, Water Temperature Sender
[09.1993 - 05.1995] BU60 ＹＡＺＡＫＩ |
83420-20030 |
— | ||
| replacement | |||||
|
83420
|
83420
83420-16040 Gage Assy, Water Temperature Sender[09.1993 - 05.1995] BU60 ＹＡＺＡＫＩ |
83420-16040 |
from US $27.76 |
||
|
83530
|
83530
83530-14030
Switch Assy, Oil Pressure (For Engine)
[01.1986 - 09.1993] BU60 TYPE A |
83530-14030 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-28030 Switch Assy, Oil Pressure (For Engine)[01.1986 - 09.1993] BU60 TYPE A |
83530-28030 |
from US $23.20 |
||
|
83530
|
83530
83530-14070
Switch Assy, Oil Pressure (For Engine)
[09.1993 - 05.1995] BU60 TYPE B |
83530-14070 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-28010 Switch Assy, Oil Pressure (For Engine)[09.1993 - 05.1995] BU60 TYPE B |
83530-28010 |
from US $25.68 |
||
|
84210
|
84210
84210-60021 Switch Assy, Back-Up Lamp[01.1986 - 05.1995] BU60 |
84210-60021 |
from US $41.69 |
||
|
84540C
|
84540C
84540-36050
Switch Assy, Neutral (For Exhaust Brake)
[01.1986 - 05.1995] BU60 |
84540-36050 |
— | ||
|
89429
|
89429
89422-20010 Sensor, Water Temperature (For E.f.i.)[08.1988 - 05.1995] BU60 |
89422-20010 |
from US $40.66 |
||
|
89429
|
89429
89422-30020
Sensor, Water Temperature (For E.f.i.)
[01.1986 - 08.1988] BU60 |
89422-30020 |
— | ||
| replacement | |||||
|
89429
|
89429
89422-12010 Sensor, Water Temperature (For E.f.i.)[01.1986 - 08.1988] BU60 |
89422-12010 |
US $67.54 |
||
|
89491
|
89491
89491-36050 Sensor, Engine Oil Level[10.1989 - 05.1995] BU60 |
89491-36050 |
US $304.30 |
||
|
1987766010
|
1987766010
19877-66010 Insulator Sub-Assy, Glow Plug, No.1 |
19877-66010 |
US $5.10 |
||
|
2862257010
|
2862257010
28622-57010 Insulator, Glow Plug Resistor, No.1 |
28622-57010 |
from US $1.40 |
||
|
2862354010
|
2862354010
28623-54010 Insulator, Glow Plug Resistor, No.2 |
28623-54010 |
from US $1.40 |
||
|
8271136080
|
8271136080
82711-36080
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-36080 |
— | ||
|
9011606275
|
9011606275
90116-06275
Bolt, Stud(For Injection Pipe Clamp)
|
90116-06275 |
— | ||
| replacement | |||||
|
9011606275
|
9011606275
90116-06095 Bolt, Stud(For Head To Cylinder Head Cover) |
90116-06095 |
US $1.61 |
||
|
9017905015
|
9017905015
90179-05015 New Genuine Part |
90179-05015 |
US $1.12 |
||
|
9017905032
|
9017905032
90179-05032
NUT
|
90179-05032 |
— | ||
| replacement | |||||
|
9017905032
|
9017905032
90179-05011 NUT |
90179-05011 |
from US $0.76 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.95 |
||
|
9018905006
|
9018905006
90189-05006 GROMMET |
90189-05006 |
US $6.99 |
||
|
9020110042
|
9020110042
90201-10042 Washer, Plate (For Transfer Control Cable) |
90201-10042 |
US $1.61 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.05 |
||
|
9043018007
|
9043018007
90430-18007
Gasket(For Water Hole)
|
90430-18007 |
— | ||
| replacement | |||||
|
9043018007
|
9043018007
90430-18008 Gasket |
90430-18008 |
from US $0.87 |
||
|
9043027001
|
9043027001
90430-27001 Gasket, Engine Oil Level Sensor |
90430-27001 |
from US $1.03 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.16 |
||
|
9461310601
|
9461310601
94613-10601 Washer (For Primary Regulator Valve) |
94613-10601 |
US $1.25 |
||
