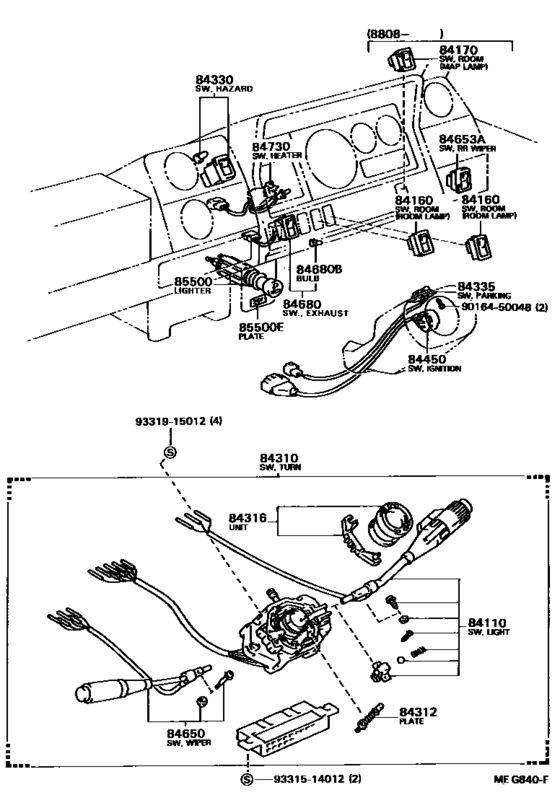

Switch & Relay & Computer ([01.1986 - ] (8601- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84110
|
84110
84112-29196
Switch Assy, Light Control, No.1
[01.1986 - 05.1995] BU60 |
84112-29196 |
— | ||
|
84160
|
84160
84170-90D00 Switch Assy, Room Lamp[01.1986 - 05.1988] BU60 |
84170-90D00 |
US $60.31 |
||
|
84170
|
84170
84170-90D00 Switch Assy, Room Lamp[08.1988 - 05.1995] BU60 |
84170-90D00 |
US $60.31 |
||
|
84310
|
84310
84310-26082 Switch Assy, Turn Signal[01.1986 - 08.1987] BU60 |
84310-26082 |
US $230.05 |
||
|
84310
|
84310
84310-36480 Switch Assy, Turn Signal[08.1987 - 05.1995] BU60 |
84310-36480 |
US $254.80 |
||
|
84312
|
84312
84312-20011 Plate, Horn Contact[01.1986 - 05.1995] BU60 |
84312-20011 |
from US $4.69 |
||
|
84316
|
84316
84316-26010 Unit, Turn Signal[02.1992 - 05.1995] BU60 |
84316-26010 |
US $67.85 |
||
|
84330
|
84330
84332-20190 Switch Assy, Hazard Warning Signal[08.1987 - 12.1990] BU60 |
84332-20190 |
US $54.16 |
||
|
84330
|
84330
84332-26070 Switch Assy, Hazard Warning Signal[12.1990 - 05.1992] BU60 |
84332-26070 |
US $54.16 |
||
| replacement | |||||
|
84330
|
84330
84332-26071 Switch Assy, Hazard Warning Signal[12.1990 - 05.1992] BU60 |
84332-26071 |
US $54.31 |
||
|
84330
|
84330
84332-26071 Switch Assy, Hazard Warning Signal[05.1992 - 05.1995] BU60 |
84332-26071 |
US $54.31 |
||
|
84335
|
84335
84330-95A02 Switch Assy, Parking Lamp[01.1986 - 08.1987] BU60 |
84330-95A02 |
US $38.44 |
||
|
84450
|
84450
84450-27120 Switch Assy, Ignition Or Starter[09.1991 - 05.1995] BU60 8ﾋﾟﾝｺﾈｸﾀ |
84450-27120 |
US $58.39 |
||
| replacement | |||||
|
84450
|
84450
84450-26081 Switch Assy, Ignition Or Starter[09.1991 - 05.1995] BU60 8ﾋﾟﾝｺﾈｸﾀ |
84450-26081 |
US $63.92 |
||
|
84450
|
84450
84450-30131 Switch Assy, Ignition Or Starter[01.1986 - 09.1991] BU60 6ﾋﾟﾝｺﾈｸﾀ |
84450-30131 |
US $61.88 |
||
| replacement | |||||
|
84450
|
84450
84450-26040 Switch Assy, Ignition Or Starter[01.1986 - 09.1991] BU60 6ﾋﾟﾝｺﾈｸﾀ |
84450-26040 |
US $58.53 |
||
|
84650
|
84650
84652-29027 Switch Assy, Windshield Wiper[01.1986 - 05.1988] BU60 |
84652-29027 |
US $99.01 |
||
| replacement | |||||
|
84650
|
84650
84652-22042 Switch Assy, Windshield Wiper[01.1986 - 05.1988] BU60 |
84652-22042 |
US $88.82 |
||
|
84653A
|
84653A
84653-22020 Switch, Rear Wiper[01.1986 - 08.1987] BU60 |
84653-22020 |
US $63.34 |
||
|
84680
|
84680
84680-36030 Switch Assy, Exhaust Brake Main[01.1986 - 05.1995] BU60 |
84680-36030 |
US $54.45 |
||
|
84680B
|
84680B
84999-10100 Bulb, Position Indicator Lamp[01.1986 - 05.1995] BU60 |
84999-10100 |
US $7.17 |
||
|
84730
|
84730
84732-95403 Switch Assy, Heater Blower[01.1986 - 08.1987] BU60 |
84732-95403 |
US $54.31 |
||
| replacement | |||||
|
84730
|
84730
84732-95405 Switch Assy, Heater Blower[01.1986 - 08.1987] BU60 |
84732-95405 |
US $48.19 |
||
|
84730
|
84730
84732-95405 Switch Assy, Heater Blower[08.1987 - 05.1995] BU60 |
84732-95405 |
US $48.19 |
||
|
85500
|
85500
85500-90F00
Lighter Assy, Cigarette
[01.1986 - 05.1995] BU60 |
85500-90F00 |
— | ||
|
85500E
|
85500E
74534-90K00 Plate, Fog Lamp Switch Caution, No.2[01.1986 - 05.1995] BU60 |
74534-90K00 |
US $3.58 |
||
|
9016450048
|
9016450048
90164-50048 SCREW |
90164-50048 |
from US $0.84 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.76 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.25 |
||
