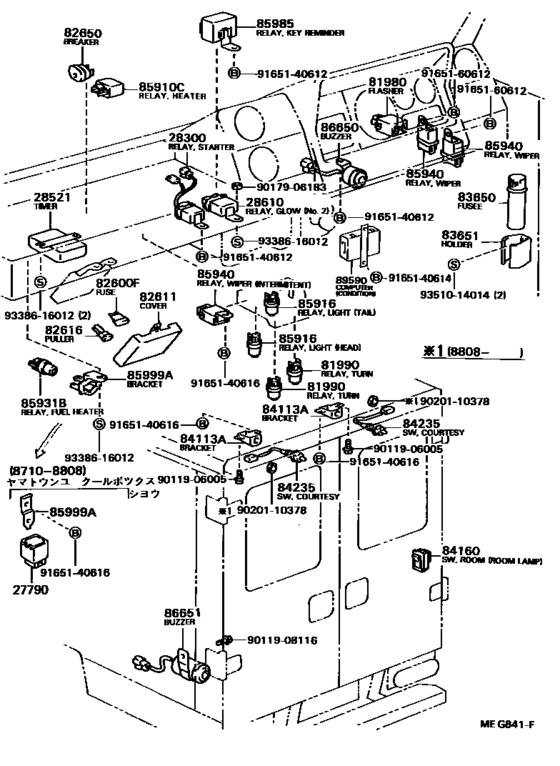

Switch & Relay & Computer ([01.1986 - ] (8601- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27790
|
27790
27790-56010 Relay Assy, Charge Lamp[10.1987 - 09.1993] B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
27790-56010 |
US $81.54 |
||
|
28300
|
28300
28300-56010 Relay Assy, Starter[01.1986 - 05.1995] B..BU60 |
28300-56010 |
US $118.08 |
||
|
28521
|
28521
28521-56030 Timer, Preheating[05.1991 - 05.1995] B..BU60 |
28521-56030 |
US $624.62 |
||
|
28521
|
28521
28521-57051
Timer, Preheating
[01.1986 - 06.1986] B..BU60 |
28521-57051 |
— | ||
|
28521
|
28521
28521-57070 Timer, Preheating[06.1986 - 08.1988] B..BU60 |
28521-57070 |
US $634.82 |
||
|
28521
|
28521
28521-57090 Timer, Preheating[08.1988 - 05.1991] B..BU60 |
28521-57090 |
US $631.90 |
||
| replacement | |||||
|
28521
|
28521
28521-56030 Timer, Preheating[08.1988 - 05.1991] B..BU60 |
28521-56030 |
US $624.62 |
||
|
28610
|
28610
28610-54160 Relay Assy, Glow Plug[01.1986 - 05.1988] B..BU60 NO.2 |
28610-54160 |
US $109.20 |
||
|
28610
|
28610
28610-54170 Relay Assy, Glow Plug[01.1986 - 08.1987] B..BU60 NO.1 |
28610-54170 |
US $200.93 |
||
|
28610
|
28610
28610-57090 Relay Assy, Glow Plug[08.1987 - 05.1988] B..BU60 NO.1 |
28610-57090 |
from US $152.78 |
||
|
28610
|
28610
28610-58070
Relay Assy, Glow Plug
[08.1988 - 05.1995] B..BU60 ＮＯ．１ |
28610-58070 |
— | ||
|
28610
|
28610
28610-58080 Relay Assy, Glow Plug[08.1988 - 05.1995] B..BU60 ＮＯ．２ |
28610-58080 |
US $109.20 |
||
|
81980
|
81980
81980-36060 Flasher Assy, Turn Signal[01.1986 - 05.1995] BU60 |
81980-36060 |
US $129.56 |
||
|
81990
|
81990
90987-02005 Relay, Ignition, No.1[01.1986 - 05.1995] BU60 |
90987-02005 |
from US $28.80 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[01.1986 - 05.1988] BU60 １５Ａ,15A |
90982-09003 |
from US $0.87 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[01.1986 - 05.1988] BU60 ２０Ａ,20A |
90982-09004 |
from US $0.84 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[01.1986 - 05.1988] BU60 ７．５Ａ,7.5A |
90982-09005 |
from US $0.97 |
||
|
82611
|
82611
82611-90D01 Cover, Fuse Block[01.1986 - 08.1987] BU60 |
82611-90D01 |
US $16.02 |
||
|
82611
|
82611
82611-90D02 Cover, Fuse Block[08.1987 - 05.1995] BU60 |
82611-90D02 |
US $16.16 |
||
|
82616
|
82616
82616-12010 Lever, Fuse[01.1986 - 05.1995] BU60 |
82616-12010 |
US $3.40 |
||
|
82650
|
82650
82650-35010 Breaker Assy, Wiring Circuit, No.1[01.1986 - 08.1987] BU60 ２０Ａ,20A |
82650-35010 |
US $14 |
||
|
83650
|
83650
90986-01003
Fusee
[01.1986 - 10.1989] BU60 |
90986-01003 |
— | ||
|
83650
|
83650
90986-01005
Fusee
[10.1989 - 05.1995] BU60 |
90986-01005 |
— | ||
|
83651
|
83651
62199-90P80 Holder, Fusee[10.1989 - 05.1995] BU60 |
62199-90P80 |
US $11.29 |
||
|
83651
|
83651
81713-90500 Holder, Fusee[01.1986 - 10.1989] BU60 |
81713-90500 |
US $4.51 |
||
|
84113A
|
84113A
84233-90D00 Bracket, Switch, No.1[01.1986 - 05.1988] BU60 |
84233-90D00 |
US $11.07 |
||
|
84160
|
84160
84170-90D00 Switch Assy, Room Lamp[01.1986 - 05.1988] BU60 |
84170-90D00 |
US $60.31 |
||
|
84235
|
84235
84230-22051
Switch Assy, Courtesy Lamp (For Front Door)
[01.1986 - 05.1988] BU60 |
84230-22051 |
— | ||
| replacement | |||||
|
84235
|
84235
84231-28010 Switch Assy, Courtesy Lamp[01.1986 - 05.1988] BU60 |
84231-28010 |
from US $16.49 |
||
|
84235
|
84235
84231-28010 Switch Assy, Courtesy Lamp[05.1988 - 05.1995] BU60..CBU |
84231-28010 |
from US $16.49 |
||
|
85910C
|
85910C
85913-90K00 Relay Assy (For Heater Blower Motor)[01.1986 - 05.1995] BU60 |
85913-90K00 |
from US $71.40 |
||
|
85916
|
85916
90987-01004 Relay, Heater Pump[01.1986 - 05.1995] BU60 |
90987-01004 |
US $35.78 |
||
|
85931B
|
85931B
90987-02005 Relay, Ignition, No.1[01.1986 - 09.1993] BU60 |
90987-02005 |
from US $28.80 |
||
|
85940
|
85940
85940-26010 Relay Assy (For Heater Blower Motor)[01.1986 - 05.1995] BU60 |
85940-26010 |
US $50.67 |
||
|
85940
|
85940
85940-90B03 Relay Assy, Windshield Wiper[01.1986 - 05.1988] BU60 INTERMITENT WIPER RELAY |
85940-90B03 |
US $144.14 |
||
|
85985
|
85985
80590-36010 Relay, Key Reminder[08.1991 - 05.1995] BU60 |
80590-36010 |
US $110.66 |
||
|
85999A
|
85999A
85999-12050
Bracket, Main Relay
[01.1986 - 09.1993] BU60 |
85999-12050 |
— | ||
|
85999A
|
85999A
85999-22070 Bracket, Relay, No.2[10.1987 - 08.1988] BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
85999-22070 |
US $3.64 |
||
|
86650
|
86650
86650-25040 Buzzer Assy, Vacuum Indicator[01.1986 - 05.1995] BU60 |
86650-25040 |
US $30.14 |
||
|
86651
|
86651
86650-95405 Buzzer Assy, Back[01.1986 - 08.1987] BU60 |
86650-95405 |
US $88.82 |
||
| replacement | |||||
|
86651
|
86651
86650-95408 Buzzer Assy, Reverse Warning[01.1986 - 08.1987] BU60 |
86650-95408 |
US $88.82 |
||
|
86651
|
86651
86650-95408 Buzzer Assy, Reverse Warning[08.1987 - 05.1995] BU60 |
86650-95408 |
US $88.82 |
||
|
89590
|
89590
89590-36130 Computer Assy, Condition Indicator[10.1989 - 05.1995] BU60 |
89590-36130 |
US $77.17 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.43 |
||
|
9011908116
|
9011908116
90119-08116 Bolt W Washer |
90119-08116 |
US $4.30 |
||
|
9017906183
|
9017906183
90179-06183 New Genuine Part |
90179-06183 |
US $3.35 |
||
| replacement | |||||
|
9017906183
|
9017906183
90179-06329 NUT |
90179-06329 |
US $1.43 |
||
|
9020110378
|
9020110378
90201-10378 New Genuine Part |
90201-10378 |
US $2.91 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.95 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.76 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.61 |
||
|
9338616012
|
9338616012
93386-16012 New Genuine Part |
93386-16012 |
US $1.02 |
||
|
9351014014
|
9351014014
93510-14014 New Genuine Part |
93510-14014 |
US $1.75 |
||
