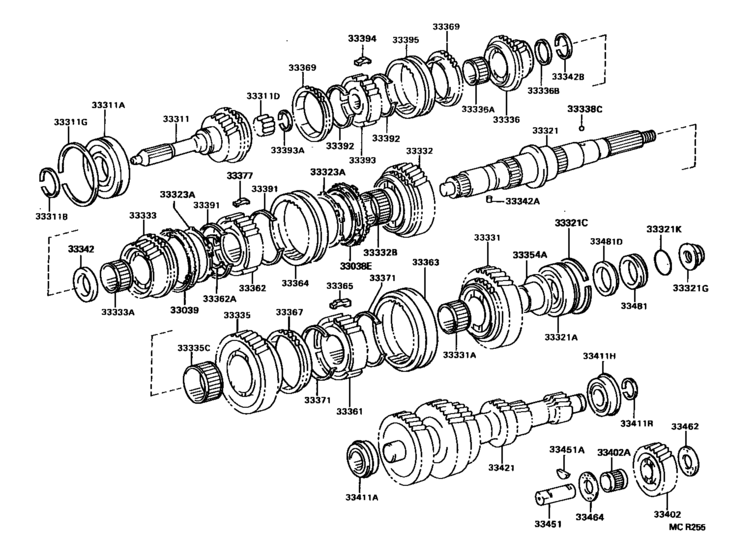

Transmission Gear (Mtm) ([10.1992 - ] (9210- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33038E
|
33038E
33038-36010 Ring Set, Synchronizer, No.2[10.1992 - 05.1995] BU60 |
33038-36010 |
from US $90.08 |
||
|
33039
|
33039
33039-36010 Ring Set, Synchronizer, No.3[10.1992 - 05.1995] BU60 |
33039-36010 |
from US $79.93 |
||
|
33311
|
33311
33301-36030
Shaft, Input
[01.1986 - 01.1990] BU60 |
33301-36030 |
— | ||
| replacement | |||||
|
33311
|
33311
33301-36070 Shaft, Input[01.1986 - 01.1990] BU60 |
33301-36070 |
US $381.47 |
||
|
33311
|
33311
33301-36031 Shaft, Input[01.1990 - 10.1992] BU60 |
33301-36031 |
US $330.51 |
||
| replacement | |||||
|
33311
|
33311
33301-36071 Shaft, Input[01.1990 - 10.1992] BU60 |
33301-36071 |
from US $308.16 |
||
|
33311
|
33311
33301-36110 Shaft, Input[10.1992 - 05.1995] BU60 |
33301-36110 |
US $330.51 |
||
| replacement | |||||
|
33311
|
33311
33301-36120 Shaft, Input[10.1992 - 05.1995] BU60 |
33301-36120 |
from US $252.47 |
||
|
33311A
|
33311A
90363-45010 Bearing (For Input Shaft Front)[01.1986 - 05.1995] BU60 |
90363-45010 |
from US $45.19 |
||
|
33311B
|
33311B
90520-42002 Ring, Shaft Snap (For Front Bearing)[01.1986 - 05.1988] BU60 厚さ＝２．５０−２．５５，ＭＡＲＫ ２,T=2.50-2.55 |
90520-42002 |
from US $1.05 |
||
|
33311B
|
33311B
90520-42003 Ring, Shaft Snap (For Front Bearing)[01.1986 - 05.1988] BU60 厚さ＝２．５５−２．６０，ＭＡＲＫ ３,T=2.55-2.60 |
90520-42003 |
US $1.14 |
||
|
33311B
|
33311B
90520-42004 Ring, Shaft Snap (For Front Bearing)[01.1986 - 05.1988] BU60 厚さ＝２．６０−２．６５，ＭＡＲＫ ４,T=2.60-2.65 |
90520-42004 |
US $1.14 |
||
|
33311B
|
33311B
90520-42005 Ring, Shaft Snap (For Front Bearing)[01.1986 - 05.1988] BU60 厚さ＝２．６５−２．７０，ＭＡＲＫ ５,T=2.65-2.70 |
90520-42005 |
US $1.14 |
||
|
33311B
|
33311B
90520-42006 Ring, Shaft Snap (For Front Bearing)[01.1986 - 05.1988] BU60 厚さ＝２．７０−２．７５，ＭＡＲＫ ６,T=2.70-2.75 |
90520-42006 |
US $1.14 |
||
|
33311B
|
33311B
90520-42007 Ring, Shaft Snap (For Front Bearing)[01.1986 - 05.1988] BU60 厚さ＝２．７５−２．８０，ＭＡＲＫ ７,T=2.75-2.80 |
90520-42007 |
US $1.14 |
||
|
33311D
|
33311D
90361-08004 Bearing, Input Shaft[01.1986 - 01.1990] BU60 |
90361-08004 |
from US $1.10 |
||
|
33311D
|
33311D
90361-09001 Bearing, Input Shaft[01.1990 - 05.1995] BU60 |
90361-09001 |
US $2.33 |
||
|
33311G
|
33311G
90520-96001 Ring, Shaft Snap (For Front Bearing)[01.1986 - 05.1988] BU60 |
90520-96001 |
from US $1.49 |
||
|
33321
|
33321
33321-36070
Shaft, Output
[01.1986 - 09.1988] BU60 |
33321-36070 |
— | ||
| replacements | |||||
|
33321
|
33321
33321-36071 Shaft, Output[01.1986 - 09.1988] BU60 |
33321-36071 |
US $401.86 |
||
|
33321
|
33321
90520-34010 Ring, Shaft Snap (For Gear Thrust Washer)[01.1986 - 09.1988] BU60 |
90520-34010 |
from US $1.31 |
||
|
33321
|
33321
90560-37003 Spacer (For 5Th Gear Bearing)[01.1986 - 09.1988] BU60 |
90560-37003 |
from US $0.61 |
||
|
33321
|
33321
33321-36071 Shaft, Output[09.1988 - 01.1990] BU60 |
33321-36071 |
US $401.86 |
||
|
33321
|
33321
33321-36090 Shaft, Output[01.1990 - 10.1992] BU60 |
33321-36090 |
US $407.68 |
||
|
33321
|
33321
33321-36100
Shaft, Output
[10.1992 - 05.1995] BU60 |
33321-36100 |
— | ||
|
33321A
|
33321A
90363-40034 Bearing (For Input Shaft Front)[01.1986 - 05.1995] BU60 |
90363-40034 |
from US $41.83 |
||
|
33321C
|
33321C
90520-88001 Ring, Shaft Snap (For Front Bearing)[01.1986 - 05.1988] BU60 厚さ＝２．３６−２．４６ |
90520-88001 |
from US $3.38 |
||
|
33321G
|
33321G
90179-24002 Nut (For Manual Transmission Output Shaft Rear Set)[01.1986 - 10.1989] BU60 |
90179-24002 |
from US $3.80 |
||
|
33321G
|
33321G
90179-24008 Nut (For Manual Transmission Output Shaft Rear Set)[01.1990 - 05.1995] BU60 |
90179-24008 |
from US $3.23 |
||
|
33321G
|
33321G
90179-24011 Nut (For Manual Transmission Output Shaft Rear Set)[10.1989 - 01.1990] BU60 |
90179-24011 |
from US $2.89 |
||
|
33321K
|
33321K
90301-31003 Ring, O(For Manual Transmisson Output Shaft Rear Set Nut)[01.1990 - 05.1995] BU60 |
90301-31003 |
from US $3.15 |
||
|
33323A
|
33323A
33323-36010 Spacer, Synchronizer Ring[10.1992 - 05.1995] BU60 |
33323-36010 |
from US $4.37 |
||
|
33331
|
33331
33031-36010
Gear, Reverse
[01.1986 - 12.1989] BU60 |
33031-36010 |
— | ||
| replacement | |||||
|
33331
|
33331
33031-36020 Gear, Reverse[01.1986 - 12.1989] BU60 |
33031-36020 |
US $230.05 |
||
|
33331
|
33331
33031-36020 Gear, Reverse[12.1989 - 10.1992] BU60 |
33031-36020 |
US $230.05 |
||
|
33331
|
33331
33031-36030 Gear, Reverse[10.1992 - 05.1995] BU60 |
33031-36030 |
US $232.96 |
||
|
33331A
|
33331A
90364-47004
Bearing (For Reverse Gear)
[01.1986 - 10.1992] BU60 |
90364-47004 |
— | ||
| replacement | |||||
|
33331A
|
33331A
90364-47007 Bearing, Needle Roller (For 3Rd Gear)[01.1986 - 10.1992] BU60 |
90364-47007 |
from US $11.01 |
||
|
33331A
|
33331A
90364-54004 Bearing (For Reverse Gear)[10.1992 - 05.1995] BU60 |
90364-54004 |
from US $22.19 |
||
|
33332
|
33332
33033-36030
Gear, 2Nd
[01.1986 - 01.1990] BU60 |
33033-36030 |
— | ||
| replacement | |||||
|
33332
|
33332
33033-37010 Gear, 2Nd2ND [01.1986 - 01.1990] BU60 |
33033-37010 |
US $145.60 |
||
|
33332
|
33332
33033-36031 Gear, 2Nd[01.1990 - 10.1992] BU60 |
33033-36031 |
US $254.80 |
||
| replacement | |||||
|
33332
|
33332
33033-37010 Gear, 2Nd2ND [01.1990 - 10.1992] BU60 |
33033-37010 |
US $145.60 |
||
|
33332
|
33332
33033-36060 Gear, 2Nd[10.1992 - 05.1995] BU60 |
33033-36060 |
US $230.05 |
||
| replacement | |||||
|
33332
|
33332
33033-36070
Gear, 2Nd
[10.1992 - 05.1995] BU60 |
33033-36070 |
— | ||
|
33332B
|
33332B
90364-54001
Bearing, Needle Roller (For 2Nd Gear)
[01.1986 - 10.1992] BU60 |
90364-54001 |
— | ||
| replacement | |||||
|
33332B
|
33332B
90364-54003 Bearing, Needle Roller (For 2Nd Gear)[01.1986 - 10.1992] BU60 |
90364-54003 |
from US $23.69 |
||
|
33332B
|
33332B
90364-54003 Bearing, Needle Roller (For 2Nd Gear)[10.1992 - 05.1995] BU60 |
90364-54003 |
from US $23.69 |
||
|
33333
|
33333
33034-36010
Gear, 3Rd
[01.1986 - 01.1990] BU60 |
33034-36010 |
— | ||
| replacement | |||||
|
33333
|
33333
33034-36050 Gear, 3Rd[01.1986 - 01.1990] BU60 |
33034-36050 |
US $206.75 |
||
|
33333
|
33333
33034-36011 Gear, 3Rd[01.1990 - 10.1992] BU60 |
33034-36011 |
US $206.75 |
||
| replacement | |||||
|
33333
|
33333
33034-36050 Gear, 3Rd[01.1990 - 10.1992] BU60 |
33034-36050 |
US $206.75 |
||
|
33333
|
33333
33034-36060 Gear, 3Rd[10.1992 - 05.1995] BU60 |
33034-36060 |
US $121.39 |
||
|
33333A
|
33333A
90364-47004
Bearing (For Reverse Gear)
[01.1986 - 10.1992] BU60 |
90364-47004 |
— | ||
| replacement | |||||
|
33333A
|
33333A
90364-47007 Bearing, Needle Roller (For 3Rd Gear)[01.1986 - 10.1992] BU60 |
90364-47007 |
from US $11.01 |
||
|
33333A
|
33333A
90364-47007 Bearing, Needle Roller (For 3Rd Gear)[10.1992 - 05.1995] BU60 |
90364-47007 |
from US $11.01 |
||
|
33335
|
33335
33032-36030
Gear, 1St
[01.1986 - 01.1990] BU60 |
33032-36030 |
— | ||
| replacement | |||||
|
33335
|
33335
33335-37040 Gear, 1St[01.1986 - 01.1990] BU60 |
33335-37040 |
US $193.65 |
||
|
33335
|
33335
33032-36031 Gear, 1St[01.1990 - 10.1992] BU60 |
33032-36031 |
US $308.67 |
||
| replacement | |||||
|
33335
|
33335
33335-37040 Gear, 1St[01.1990 - 10.1992] BU60 |
33335-37040 |
US $193.65 |
||
|
33335
|
33335
33032-36050 Gear, 1St[10.1992 - 02.1995] BU60 |
33032-36050 |
US $308.67 |
||
| replacement | |||||
|
33335
|
33335
33335-37040 Gear, 1St[10.1992 - 02.1995] BU60 |
33335-37040 |
US $193.65 |
||
|
33335
|
33335
33335-37030 Gear, 1St[02.1995 - 05.1995] BU60 |
33335-37030 |
US $308.67 |
||
| replacement | |||||
|
33335
|
33335
33335-37040 Gear, 1St[02.1995 - 05.1995] BU60 |
33335-37040 |
US $193.65 |
||
|
33335C
|
33335C
90364-58001
Bearing, Needle Roller(For 1St Gear)
[01.1986 - 10.1992] BU60 |
90364-58001 |
— | ||
| replacement | |||||
|
33335C
|
33335C
90364-58005 Bearing, Needle Roller(For 1St Gear)[01.1986 - 10.1992] BU60 |
90364-58005 |
from US $23.69 |
||
|
33335C
|
33335C
90364-58005 Bearing, Needle Roller(For 1St Gear)[10.1992 - 05.1995] BU60 |
90364-58005 |
from US $23.69 |
||
|
33336
|
33336
33036-36020
Gear, 5Th
[01.1986 - 10.1989] BU60 |
33036-36020 |
— | ||
| replacement | |||||
|
33336
|
33336
33036-36030
Gear, 5Th
[01.1986 - 10.1989] BU60 |
33036-36030 |
— | ||
|
33336
|
33336
33036-36021 Gear, 5Th[10.1989 - 10.1992] BU60 |
33036-36021 |
US $230.05 |
||
| replacement | |||||
|
33336
|
33336
33036-36030
Gear, 5Th
[10.1989 - 10.1992] BU60 |
33036-36030 |
— | ||
|
33336
|
33336
33036-36040 Gear, 5Th[10.1992 - 05.1995] BU60 |
33036-36040 |
US $180.54 |
||
| replacement | |||||
|
33336
|
33336
33036-36050 Gear, 5Th[10.1992 - 05.1995] BU60 |
33036-36050 |
US $180.54 |
||
|
33336A
|
33336A
90364-37008
Bearing, Needle Roller (For 5Th Gear)
[01.1986 - 10.1992] BU60 |
90364-37008 |
— | ||
| replacement | |||||
|
33336A
|
33336A
90364-37012 Bearing, Needle Roller (For 5Th Gear)[01.1986 - 10.1992] BU60 |
90364-37012 |
from US $16.46 |
||
|
33336A
|
33336A
90364-37012 Bearing, Needle Roller (For 5Th Gear)[10.1992 - 05.1995] BU60 |
90364-37012 |
from US $16.46 |
||
|
33336B
|
33336B
90560-37001 Spacer (For 5Th Gear Bearing)[01.1986 - 09.1988] BU60 |
90560-37001 |
US $1.89 |
||
|
33336B
|
33336B
90560-37003 Spacer (For 5Th Gear Bearing)[09.1988 - 05.1995] BU60 |
90560-37003 |
from US $0.61 |
||
|
33338C
|
33338C
90360-06004 Ball, Detent(For Gear Shift Head No.4)[10.1992 - 05.1995] BU60 |
90360-06004 |
from US $0.82 |
||
| replacement | |||||
|
33338C
|
33338C
90080-36191
Ball, Check Valve
[10.1992 - 05.1995] BU60 |
90080-36191 |
— | ||
|
33342
|
33342
33342-36010 Washer, Gear Thrust[01.1986 - 10.1992] BU60 |
33342-36010 |
US $21.40 |
||
|
33342
|
33342
33342-36020
Washer, Gear Thrust
[10.1992 - 12.1994] BU60 |
33342-36020 |
— | ||
| replacement | |||||
|
33342
|
33342
33342-36021 Washer, Gear Thrust[10.1992 - 12.1994] BU60 |
33342-36021 |
from US $15.95 |
||
|
33342
|
33342
33342-36021 Washer, Gear Thrust[12.1994 - 05.1995] BU60 |
33342-36021 |
from US $15.95 |
||
|
33342A
|
33342A
90250-04056 Pin, Straight (For Gear Thrust Washer)[01.1986 - 05.1995] BU60 |
90250-04056 |
from US $0.67 |
||
|
33342B
|
33342B
90520-33013 Ring, Shaft Snap (For Gear Thrust Washer)[01.1986 - 05.1988] BU60 厚さ＝１．９０−１．９５,T=1.90-1.95 |
90520-33013 |
US $2.48 |
||
|
33342B
|
33342B
90520-33014
Ring, Shaft Snap (For Gear Thrust Washer)
[01.1986 - 05.1988] BU60 厚さ＝１．９５−２．００,T=1.95-2.00 |
90520-33014 |
— | ||
|
33342B
|
33342B
90520-33015 Ring, Shaft Snap (For Gear Thrust Washer)[01.1986 - 05.1988] BU60 厚さ＝２．００−２．０５,T=2.00-2.05 |
90520-33015 |
US $2.48 |
||
|
33342B
|
33342B
90520-33016 Ring, Shaft Snap (For Gear Thrust Washer)[01.1986 - 05.1988] BU60 厚さ＝２．０５−２．１０,T=2.05-2.10 |
90520-33016 |
US $2.48 |
||
|
33342B
|
33342B
90520-33017 Ring, Shaft Snap (For Gear Thrust Washer)[01.1986 - 05.1988] BU60 厚さ＝２．１０−２．１５,T=2.10-2.15 |
90520-33017 |
US $4.12 |
||
|
33342B
|
33342B
90520-34010 Ring, Shaft Snap (For Gear Thrust Washer)[09.1988 - 05.1995] BU60 厚さ＝２．９０−２．９５，マーク Ａ |
90520-34010 |
from US $1.31 |
||
|
33342B
|
33342B
90520-34011 Ring, Shaft Snap (For Gear Thrust Washer)[09.1988 - 05.1995] BU60 厚さ＝２．９５−３．００，マーク Ｂ |
90520-34011 |
from US $1.31 |
||
|
33342B
|
33342B
90520-34012 Ring, Shaft Snap (For Gear Thrust Washer)[09.1988 - 05.1995] BU60 厚さ＝３．００−３．０５，マーク Ｃ |
90520-34012 |
US $0.79 |
||
|
33342B
|
33342B
90520-34015 Ring, Shaft Snap (For Gear Thrust Washer)[09.1988 - 05.1995] BU60 厚さ＝３．０５−３．１０，マーク Ｄ |
90520-34015 |
US $1.24 |
||
|
33342B
|
33342B
90520-34016 Ring, Shaft Snap (For Gear Thrust Washer)[09.1988 - 05.1995] BU60 厚さ＝３．１０−３．１５，マーク Ｆ |
90520-34016 |
US $0.79 |
||
|
33354A
|
33354A
33354-36010 Race, Reverse Gear Bearing, Inner[10.1992 - 05.1995] BU60 |
33354-36010 |
from US $20.38 |
||
|
33361
|
33361
33361-36020
Hub, Transmission Clutch, No.1
[01.1986 - 05.1989] BU60 |
33361-36020 |
— | ||
| replacement | |||||
|
33361
|
33361
33361-36022
Hub, Transmission Clutch, No.1
[01.1986 - 05.1989] BU60 |
33361-36022 |
— | ||
|
33361
|
33361
33361-36021 Hub, Transmission Clutch, No.1[05.1989 - 10.1989] BU60 |
33361-36021 |
US $117.94 |
||
| replacement | |||||
|
33361
|
33361
33361-36022
Hub, Transmission Clutch, No.1
[05.1989 - 10.1989] BU60 |
33361-36022 |
— | ||
|
33361
|
33361
33361-36022
Hub, Transmission Clutch, No.1
[08.1990 - 10.1992] BU60 |
33361-36022 |
— | ||
|
33361
|
33361
33361-36030 Hub, Transmission Clutch, No.1[10.1992 - 05.1995] BU60 |
33361-36030 |
US $67.12 |
||
|
33362
|
33362
33362-36030
Hub, Transmission Clutch, No.2
[01.1986 - 05.1989] BU60 |
33362-36030 |
— | ||
| replacement | |||||
|
33362
|
33362
33362-36031
Hub, Transmission Clutch, No.2
[01.1986 - 05.1989] BU60 |
33362-36031 |
— | ||
|
33362
|
33362
33362-36031
Hub, Transmission Clutch, No.2
[05.1989 - 08.1990] BU60 |
33362-36031 |
— | ||
|
33362
|
33362
33362-36032 Hub, Transmission Clutch, No.2[08.1990 - 10.1992] BU60 |
33362-36032 |
US $101.92 |
||
| replacement | |||||
|
33362
|
33362
33362-36050 Hub, Transmission Clutch, No.2[08.1990 - 10.1992] BU60 |
33362-36050 |
from US $66.74 |
||
|
33362
|
33362
33362-36040 Hub, Transmission Clutch, No.2[10.1992 - 05.1995] BU60 |
33362-36040 |
US $65.17 |
||
|
33362A
|
33362A
90520-43002 Ring, Shaft Snap (For Front Bearing)[01.1986 - 05.1988] BU60 厚さ＝１．９０，マーク＝２,T=1.90 |
90520-43002 |
from US $1.14 |
||
|
33362A
|
33362A
90520-43003 Ring, Shaft Snap (For Front Bearing)[01.1986 - 05.1988] BU60 厚さ＝１．９５，マーク＝３,T=1.95 |
90520-43003 |
from US $2.28 |
||
|
33362A
|
33362A
90520-43004 Ring, Shaft Snap (For Front Bearing)[01.1986 - 05.1988] BU60 厚さ＝２．００，マーク＝４,T=2.00 |
90520-43004 |
from US $0.92 |
||
|
33362A
|
33362A
90520-43005 Ring, Shaft Snap (For Front Bearing)[01.1986 - 05.1988] BU60 厚さ＝２．０５，マーク＝５,T=2.05 |
90520-43005 |
from US $1.75 |
||
|
33362A
|
33362A
90520-43006 Ring, Shaft Snap (For Front Bearing)[01.1986 - 05.1988] BU60 厚さ＝２．１０，マーク＝６,T=2.10 |
90520-43006 |
from US $1.75 |
||
|
33362A
|
33362A
90520-43007 Ring, Shaft Snap (For Front Bearing)[01.1986 - 05.1988] BU60 厚さ＝２．１５，マーク＝７,T=2.15 |
90520-43007 |
US $1.75 |
||
|
33362A
|
33362A
90520-43009 Ring, Shaft Snap (For Clutch Hub No.2 Setting)[10.1990 - 10.1992] BU60 厚さ＝１．８５，マーク＝８ |
90520-43009 |
US $2.18 |
||
|
33363
|
33363
33363-36020
Sleeve, Transmission Hub, No.1
[01.1986 - 10.1992] BU60 |
33363-36020 |
— | ||
|
33363
|
33363
33363-36030 Sleeve, Transmission Hub, No.1[10.1992 - 05.1995] BU60 |
33363-36030 |
US $115.02 |
||
|
33364
|
33364
33364-36060 Sleeve, Transmission Hub, No.2[01.1986 - 12.1987] BU60 |
33364-36060 |
US $132.50 |
||
|
33364
|
33364
33364-36061 Sleeve, Transmission Hub, No.2[12.1987 - 10.1992] BU60 |
33364-36061 |
from US $84.91 |
||
|
33364
|
33364
33364-36080 Sleeve, Transmission Hub, No.2[10.1992 - 05.1995] BU60 |
33364-36080 |
from US $68.84 |
||
|
33365
|
33365
33365-36020 Key, Synchromesh Shifting, No.1[01.1986 - 10.1992] BU60 |
33365-36020 |
US $9.90 |
||
|
33365
|
33365
33365-36030 Key, Synchromesh Shifting, No.1[10.1992 - 05.1995] BU60 |
33365-36030 |
from US $3.21 |
||
|
33367
|
33367
33367-36040 Ring, Synchronizer, No.1[01.1986 - 10.1992] BU60 |
33367-36040 |
from US $49.95 |
||
|
33367
|
33367
33367-36050 Ring, Synchronizer, No.1[10.1992 - 05.1995] BU60 |
33367-36050 |
from US $35.15 |
||
|
33369
|
33369
33368-20012 Ring, Synchronizer, No.1[01.1986 - 10.1992] BU60 |
33368-20012 |
from US $26.05 |
||
|
33369
|
33369
33369-36010 Ring, Synchronizer, No.3[10.1992 - 05.1995] BU60 |
33369-36010 |
from US $31.83 |
||
|
33371
|
33371
33371-36030 Spring, Synchromesh Shifting Key, No.1[01.1986 - 05.1995] BU60 |
33371-36030 |
from US $3.38 |
||
|
33377
|
33377
33366-20011 Key, Synchromesh Shifting, No.1[01.1986 - 10.1992] BU60 |
33366-20011 |
from US $3.08 |
||
|
33377
|
33377
33366-36040 Key, Synchromesh Shifting, No.2[10.1992 - 05.1995] BU60 |
33366-36040 |
from US $3.21 |
||
|
33391
|
33391
33371-36030 Spring, Synchromesh Shifting Key, No.1[10.1992 - 05.1995] BU60 |
33371-36030 |
from US $3.38 |
||
|
33391
|
33391
33391-36020 Spring, Synchromesh Shifting Key, No.2[01.1986 - 08.1990] BU60 |
33391-36020 |
from US $4.22 |
||
|
33391
|
33391
33391-36021 Spring, Synchromesh Shifting Key, No.2[08.1990 - 10.1992] BU60 |
33391-36021 |
from US $2.18 |
||
|
33392
|
33392
33392-36010 Spring, Synchromesh Shifting Key, No.3[10.1992 - 05.1995] BU60 |
33392-36010 |
from US $1.54 |
||
|
33393
|
33393
33393-36040 Hub, Transmission Clutch, No.3[01.1986 - 01.1990] BU60 |
33393-36040 |
US $117.94 |
||
|
33393
|
33393
33393-36050 Hub, Transmission Clutch, No.3[01.1990 - 10.1992] BU60 |
33393-36050 |
US $78.62 |
||
|
33393
|
33393
33393-36060 Hub, Transmission Clutch, No.3[10.1992 - 05.1995] BU60 |
33393-36060 |
from US $40.19 |
||
|
33393A
|
33393A
90520-28054 Ring, Shaft Snap (For Clutch Hub No.2 Setting)[01.1986 - 05.1988] BU60 厚さ＝１．９０−１．９５，マーク ４,T=1.90-1.95 |
90520-28054 |
from US $0.87 |
||
|
33393A
|
33393A
90520-28055 Ring, Shaft Snap (For Clutch Hub No.2 Setting)[01.1986 - 05.1988] BU60 厚さ＝１．９５−２．００，マーク ５,T=1.95-2.00 |
90520-28055 |
from US $0.87 |
||
|
33393A
|
33393A
90520-28056 Ring, Shaft Snap (For Clutch Hub No.2 Setting)[01.1986 - 05.1988] BU60 厚さ＝２．００−２．０５，マーク ６,T=2.00-2.05 |
90520-28056 |
US $0.87 |
||
|
33393A
|
33393A
90520-28057 Ring, Shaft Snap (For Clutch Hub No.2 Setting)[01.1986 - 05.1988] BU60 厚さ＝２．０５−２．１０，マーク ７,T=2.05-2.10 |
90520-28057 |
US $0.87 |
||
|
33393A
|
33393A
90520-28058 Ring, Shaft Snap (For Clutch Hub No.2 Setting)[01.1986 - 05.1988] BU60 厚さ＝２．１０−２．１５，マーク ８,T=2.10-2.15 |
90520-28058 |
US $0.87 |
||
|
33393A
|
33393A
90520-28059 Ring, Shaft Snap (For Clutch Hub No.2 Setting)[01.1986 - 05.1988] BU60 厚さ＝２．１５−２．２０，マーク ９,T=2.15-2.20 |
90520-28059 |
US $0.87 |
||
|
33394
|
33394
33394-36020 Key, Synchromesh Shifting, No.3[10.1992 - 05.1995] BU60 |
33394-36020 |
from US $3.34 |
||
|
33395
|
33395
33395-36020 Sleeve, Transmission Hub, No.3[01.1986 - 10.1992] BU60 |
33395-36020 |
US $125.22 |
||
|
33395
|
33395
33395-36030 Sleeve, Transmission Hub, No.3[10.1992 - 05.1995] BU60 |
33395-36030 |
from US $68.84 |
||
|
33402
|
33402
33402-36060 Gear Sub-Assy, Reverse Idler[01.1986 - 10.1992] BU60 |
33402-36060 |
US $136.86 |
||
|
33402
|
33402
33461-36090 Gear Sub-Assy, Reverse Idler[10.1992 - 05.1995] BU60 |
33461-36090 |
US $113.57 |
||
|
33402A
|
33402A
90364-28019 Bush Or Bearing (For Reverse Idler Gear)[10.1992 - 05.1995] BU60 |
90364-28019 |
US $29.99 |
||
| replacement | |||||
|
33402A
|
33402A
90364-28018 Bearing, Reverse Idler Gear[10.1992 - 05.1995] BU60 |
90364-28018 |
from US $34.61 |
||
|
33411A
|
33411A
90365-37002 Bearing Or Roller(For Counter Gear Front)[01.1986 - 01.1990] BU60 |
90365-37002 |
US $59.26 |
||
|
33411A
|
33411A
90365-37005 Bearing Or Roller(For Counter Gear Front)[01.1990 - 05.1995] BU60 |
90365-37005 |
US $24.75 |
||
| replacement | |||||
|
33411A
|
33411A
90365-37006 Bearing Or Roller(For Counter Gear Front)[01.1990 - 05.1995] BU60 |
90365-37006 |
from US $28.56 |
||
|
33411H
|
33411H
90363-30048
Bearing Or Roller(For Counter Gear Rear)
[01.1986 - 05.1995] BU60 |
90363-30048 |
— | ||
| replacement | |||||
|
33411H
|
33411H
90363-30049 Bearing Or Roller(For Counter Gear Rear)[01.1986 - 05.1995] BU60 |
90363-30049 |
from US $29.57 |
||
|
33411R
|
33411R
90520-26030 Ring, Shaft Snap (For Front Bearing)[01.1986 - 05.1988] BU60 厚さ＝１．９５−２．００,T=1.95-2.00 |
90520-26030 |
from US $0.87 |
||
|
33411R
|
33411R
90520-26031 Ring, Shaft Snap (For Front Bearing)[01.1986 - 05.1988] BU60 厚さ＝２．００−２．０５,T=2.00-2.05 |
90520-26031 |
US $0.87 |
||
|
33411R
|
33411R
90520-26032 Ring, Shaft Snap (For Front Bearing)[01.1986 - 05.1988] BU60 厚さ＝２．０５−２．１０,T=2.05-2.10 |
90520-26032 |
US $0.87 |
||
|
33411R
|
33411R
90520-26033 Ring, Shaft Snap (For Front Bearing)[01.1986 - 05.1988] BU60 厚さ＝２．１０−２．１５,T=2.10-2.15 |
90520-26033 |
US $0.87 |
||
|
33411R
|
33411R
90520-26034 Ring, Shaft Snap (For Front Bearing)[01.1986 - 05.1988] BU60 厚さ＝２．１５−２．２０,T=2.15-2.20 |
90520-26034 |
US $0.87 |
||
|
33411R
|
33411R
90520-26035 Ring, Shaft Snap (For Front Bearing)[01.1986 - 05.1988] BU60 厚さ＝２．２０−２．２５,T=2.20-2.25 |
90520-26035 |
from US $0.79 |
||
|
33421
|
33421
33421-36130
Gear, Counter
[01.1986 - 01.1990] BU60 |
33421-36130 |
— | ||
| replacement | |||||
|
33421
|
33421
33421-36190 Gear, Counter[01.1986 - 01.1990] BU60 |
33421-36190 |
US $422.24 |
||
|
33421
|
33421
33421-36131 Gear, Counter[01.1990 - 10.1992] BU60 |
33421-36131 |
US $468.83 |
||
| replacement | |||||
|
33421
|
33421
33421-36190 Gear, Counter[01.1990 - 10.1992] BU60 |
33421-36190 |
US $422.24 |
||
|
33421
|
33421
33421-36180 Gear, Counter[10.1992 - 05.1995] BU60 |
33421-36180 |
US $422.24 |
||
| replacement | |||||
|
33421
|
33421
33421-36190 Gear, Counter[10.1992 - 05.1995] BU60 |
33421-36190 |
US $422.24 |
||
|
33451
|
33451
33451-36040
Shaft, Reverse Idler Gear
[01.1986 - 10.1992] BU60 |
33451-36040 |
— | ||
| replacement | |||||
|
33451
|
33451
33451-36050 Shaft, Reverse Idler Gear[01.1986 - 10.1992] BU60 |
33451-36050 |
US $14.27 |
||
|
33451
|
33451
33451-36050 Shaft, Reverse Idler Gear[10.1992 - 05.1995] BU60 |
33451-36050 |
US $14.27 |
||
|
33451A
|
33451A
90280-03002 Key, Woodruff (For Reverse Idler Gear Shaft)[01.1986 - 05.1995] BU60 |
90280-03002 |
US $1.61 |
||
|
33462
|
33462
33462-36010
Washer, Reverse Idler Thrust
[01.1986 - 10.1992] BU60 |
33462-36010 |
— | ||
| replacement | |||||
|
33462
|
33462
33462-60020 Washer, Reverse Idler Thrust[01.1986 - 10.1992] BU60 |
33462-60020 |
from US $5.21 |
||
|
33462
|
33462
33462-60020 Washer, Reverse Idler Thrust[10.1992 - 05.1995] BU60 |
33462-60020 |
from US $5.21 |
||
|
33464
|
33464
33464-60010 Washer, Reverse Idler Thrust, No.2[10.1992 - 05.1995] BU60 |
33464-60010 |
from US $4.30 |
||
|
33481
|
33481
33481-36160 Gear, Speedometer Drive (Mtm)[01.1986 - 05.1995] BU60 歯数＝６，マーク ６Ｘ２３−２５ |
33481-36160 |
US $16.74 |
||
|
33481D
|
33481D
33487-36070 Spacer (For Speedometer Drive Gear)[01.1986 - 05.1995] BU60 |
33487-36070 |
US $7.13 |
||
